Husqvarna 421171 (1996) Tractor

Model: 421171 (1996)

Back To Assemblies

Save Part Not Listed?
product name

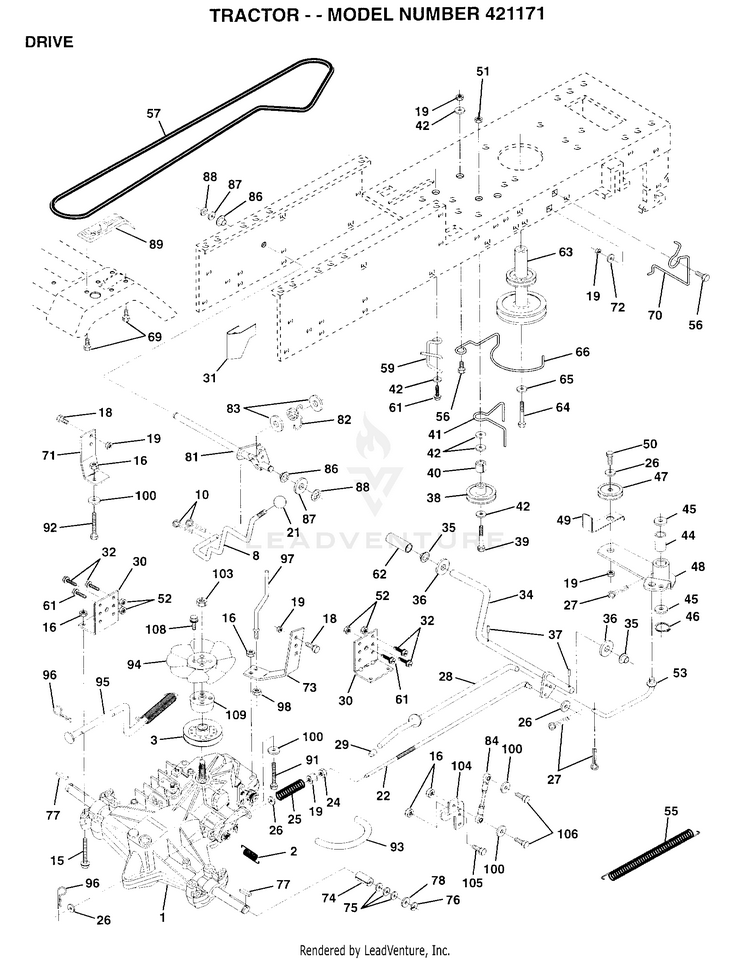

DRIVE

...
...
1
TRANSAXLE ASSEMBLY HUS-140607
...
2
SPRING RET BRAKE HUS-142431
...
3
PULLEY.4.20.HYDRO HUS-144698
...
8
ROD SHIFT FEND LT HUS-141003
...
10
PIN COTTER 1/8 HUS-76020416
...
15
BOLT.HX.FLG.5/16 HUS-74490544
...
16
NUT HUS-73800500
...
18
BOLT HUS-74780616
...
19
NUT HUS-73800600
...
21
KNOB DLX BLK/BLK HUS-140845
...
22
ROD.BRAKE.HYDRO. HUS-145627
...
24
NUT HUS-73350600
...
25
SPRING ROD LT HUS-106888X
...
26
WASHER HUS-19131316
...
27
COTTER PIN HUS-76020412
...
28
ROD.BRAKE.PARK.LT HUS-145204
...
29
PLUNGER CAP T HUS-71673
...
30
TRANSAXLE MTG BKT HUS-130807
...
31
"KEEPER,BELT LH T" HUS-127275X
...
32
BOLT HUS-74760512
...
34
SHAFT.PEDAL.FOOT HUS-149001
...
35
NYLON BEARING HUS-120183X
...
36
WASHER LT HUS-19211616
...
37
SUB= 2882J HUS-1572H
...
38
PULLEY.IDLER.FLAT HUS-123674X
...
39
BOLT HUS-74760644
...
40
SPACER T HUS-4470J
...
41
BELT KEEPER LT HUS-109070X
...
42
WASHER HUS-19131312
...
44
"LY, BEARING" HUS-105706X
...
45
WASHER LT HUS-110812X
...
46
KLIP RING HUS-12000039
...
47
SUB= 139245 HUS-127783
...
48
ARM IDLER HUS-123789X
...
49
RETAIN BELT HUS-123205X
...
50
SUB= 74930624 HUS-74760624
...
51
SUB= 73690600 HUS-73680600
...
52
SUB= 73690500 HUS-73680500
...
53
"LINK, CLUTCH T" HUS-105710X
...
55
"SPRING, RETURN LT" HUS-105709X
...
56
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
57
BELT-V.HYDR.84.61 HUS-141416
...
59
KEEPER BELT CNTSP HUS-140312
...
61
SCREW HUS-17490612
...
62
PEDAL COVER T HUS-8883R
...
63
PULLEY.ENGINE HUS-140186
...
61
BOLT HUS-71170764
...
65
LOCKWASHER HUS-10040700
...
6
KEEPER.BELT.ENG.L HUS-129921
...
69
SCREW HEXWSH H-L HUS-142432
...
70
KEEPER BELT ENG HUS-134683
...
71
STRAP.TORQ.LH.HYD HUS-141417
...
72
WASHER HUS-19132012
...
73
STRAP.TORQ.RH.HYD HUS-141418
...
74
SPACER SPLIT HUS-121199X
...
75
WASHER HUS-121749X
...
76
E-RING LT HUS-12000001
...
77
SQUARE KEY HUS-123583X
...
78
WASHER HUS-121748X
...
81
SHAFT.CROSS.HYD HUS-141420
...
82
"SPRING,TORSION" HUS-123782X
...
83
WASHER HUS-19171216
...
84
ROD.TIE.BALL.HYD. HUS-141423
...
86
BUSHING HUS-71208
...
87
WASHER D HUS-19212016
...
88
KLIP RING HUS-12000008
...
89
SUB= 153764 HUS-139988
...
91
NLA HUS-74780536
...
92
HEX BOLT HUS-74780524
...
93
"LINE FUEL HYD 4""" HUS-142564
...
93
"LINE FUEL HYD 4""" HUS-142564
...
94
"FAN 7"" HYDRO" HUS-140462
...
95
SUB= 918144643 HUS-144643
...
96
RETAINER M HUS-4497H
...
97
KEEPER.BELT.RH.HY HUS-144201
...
98
NUT HUS-73510600
...
100
WASHER M HUS-19111216
...
103
SUB= 73360800 HUS-73940800
...
104
ARM.CONTROL.PUMP HUS-141421
...
105
SCREW CAP 5/16-18 HUS-71070516
...
106
BOLT HUS-74780520
...
108
SCREW.HXHD.10-20 HUS-17541026
...
109
ADAPTOR.FAN.HYDRO HUS-145098
