Husqvarna 4200V-54 (1995) Tractor

Model: 4200V-54 (1995)

Back To Assemblies

Save Part Not Listed?
product name

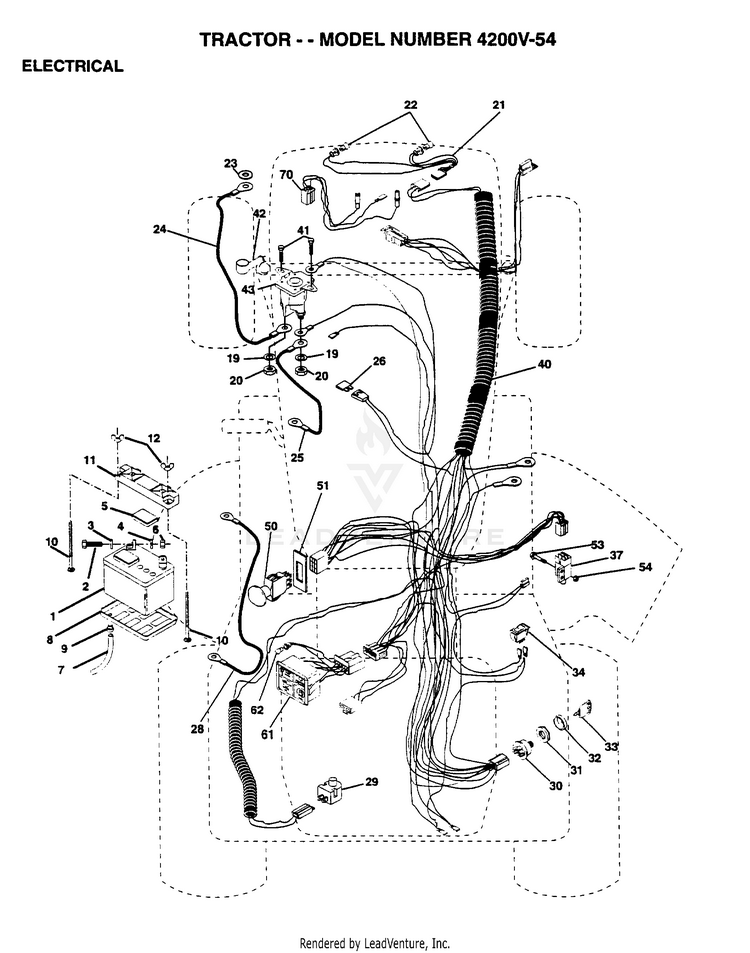

ELECTRICAL

...
...
1
SUB= 123899X HUS-121537X
...
2
BOLT LT HUS-74760412
...
3
WASHER HUS-19091016
...
4
LOCKWASHER HUS-10040400
...
5
"CAP,BATTERY " HUS-121264X
...
6
SUB= 50675 HUS-73220400
...
7
"DRAIN TU T, BATT" HUS-7697J
...
8
"TRAY T, BATTERY" HUS-7603J
...
9
HOSE CLAMP T HUS-109596X
...
10
BOLT HUS-72240460
...
11
SUB= 150109 HUS-102476X
...
12
SUB= 146525 HUS-123198X
...
19
SUB= 10040400 HUS-10090400
...
20
NUT HUS-73350400
...
21
"HARNESS,LIGHT SOC" HUS-136850
...
22
HEADLAMP BULB HUS-4152J
...
23
LOCKWASHER HUS-11150400
...
24
CABLE-BATTERY T HUS-4206J
...
25
CABLE-BATTERY T HUS-4206J
...
26
FUSE HYT HUS-108824X
...
28
CABLE T HUS-4207J
...
29
SWITCH SEAT HUS-121305X
...
30
SUB= 163088 HUS-144921
...
31
SUB= 145774 HUS-140400
...
32
COVER KEY SWITCH HUS-141226
...
33
KEY MLD GEN DELTA HUS-140401
...
34
SWITCH LT HUS-110712X
...
37
SWITCH INTERLOCKT HUS-109553X
...
40
HARNESS IGNITION HUS-141910
...
41
SCREW HUS-17720408
...
42
SUB= 154336 HUS-131563
...
43
SUB= 146154 HUS-138406
...
50
SUB= 154959 HUS-140404
...
51
RING RETAIN PTO HUS-140405
...
53
SCREW HUS-71031008
...
54
"NUT,KEPS" HUS-73951000
...
61
LIGHT.PKG.ASM. HUS-138101
...
62
BULB LIGHT T HUS-110143X
...
70
HARNESS.ENG.VANII HUS-141983
Schematic Image Zoomed
