Husqvarna 4200-34 (1993) Tractor

Model: 4200-34 (1993)

Back To Assemblies

Save Part Not Listed?
product name

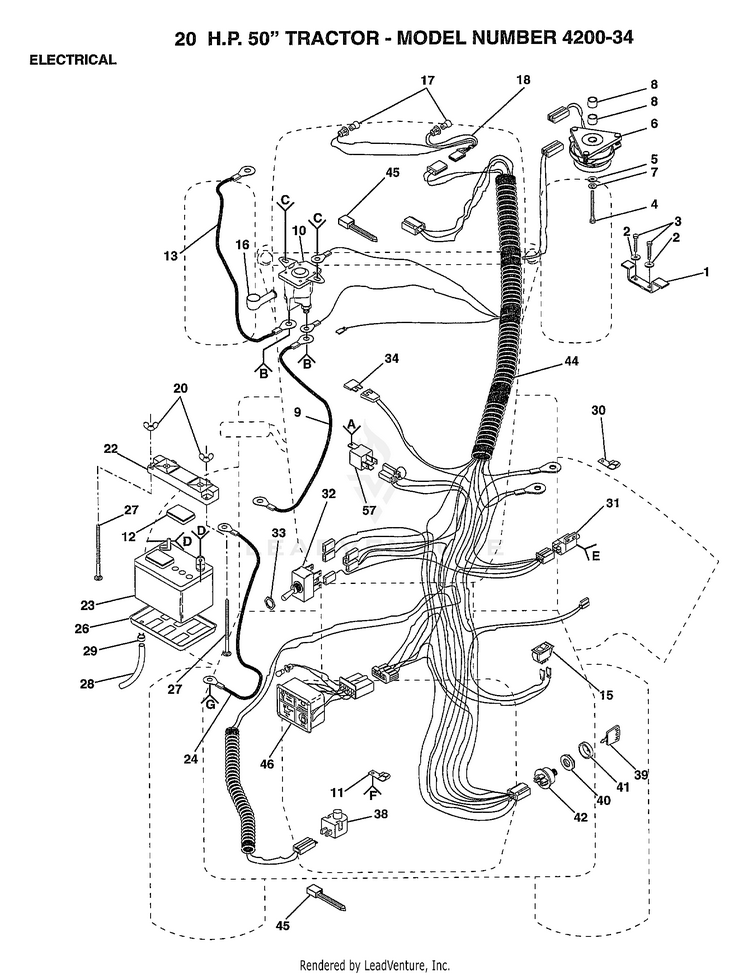

ELECTRICAL

...
...
1
STOP T HUS-110882X
...
2
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
3
BOLT HUS-74780612
...
4
SUB= 871130724 HUS-71130724
...
5
WASHER HUS-126197X
...
6
SUB= 133501 HUS-127170X
...
7
LOCKWASHER HUS-10040700
...
8
SPACER-CLUTCH HUS-128224
...
9
CABLE-BATTERY T HUS-4206J
...
10
SUB= 146154 HUS-109081X
...
11
CLIP T HUS-4171R
...
12
"CAP,BATTERY " HUS-121264X
...
13
"CABLE,STARTER T" HUS-129458
...
15
SWITCH LT HUS-110712X
...
16
SUB= 154336 HUS-131563
...
17
SUB= 4152J HUS-7662J
...
18
"HARNESS,LIGHT SOC" HUS-136850
...
20
SUB= 146525 HUS-123198X
...
22
SUB= 150109 HUS-102476X
...
23
SUB= 123899X HUS-121537X
...
24
CABLE T HUS-4207J
...
26
"TRAY T, BATTERY" HUS-7603J
...
27
BOLT HUS-72240460
...
28
SUB= 7697J HUS-100541K
...
29
HOSE CLAMP T HUS-109596X
...
30
CLIP GTV HUS-100207K
...
31
SWITCH INTERLOCKT HUS-109553X
...
32
SUB= 532126018 HUS-126018X
...
33
HEX NUT T HUS-4022J
...
34
FUSE HYT HUS-108824X
...
38
SWITCH SEAT HUS-121305X
...
39
KEY HUS-122147X
...
40
NUT IGNITION HUS-124211X
...
41
SUB= 141226 HUS-123620X
...
42
SUB= STD365402 HUS-4406R
...
44
HARNESS.IGN HUS-138695
...
45
WIRE TIE HUS-7192 J
...
46
LIGHT.PKG.ASM. HUS-138101
...
57
RELAY ASSY T HUS-109748X
