Husqvarna 4200-34 (1993) Tractor

Model: 4200-34 (1993)

Back To Assemblies

Save Part Not Listed?
product name

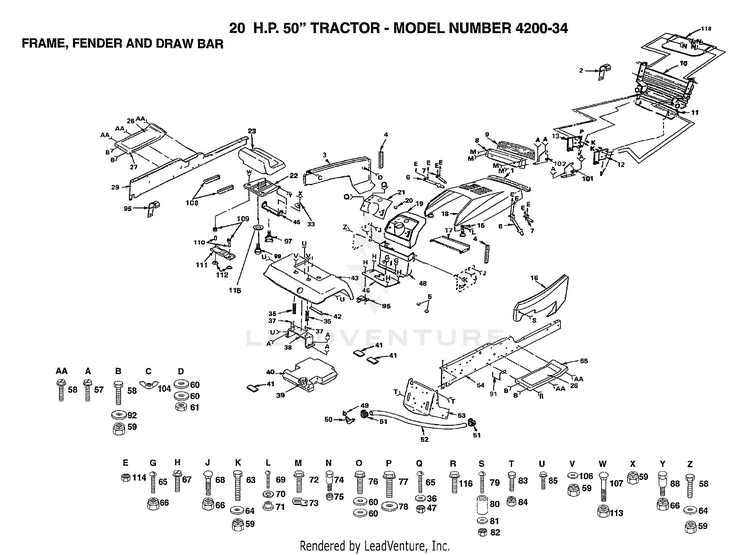

FRAME, FENDER, DRAW BAR

...
...
1
FOAM STRIP T HUS-109458X
...
2
SUB= 532128146 HUS-128146
...
3
SIDE PANEL LH HUS-132638X424
...
4
FOAM STRIP T HUS-106088X
...
5
CAP SPRING HUS-124238X
...
6
SUB= 155013 HUS-106784X
...
7
SUB= 155013 HUS-104618X
...
8
SUB= 147717 HUS-124392X417
...
9
LENS LT HUS-106395X
...
10
GRILL ASSY HUS-122100X
...
11
"STRAP,GRILL" HUS-105419X424
...
12
SUPPORT RH YTH HUS-110854X
...
13
SUPPORT LH YTH HUS-110855X
...
15
HOOD LATCH T HUS-109808X
...
16
SIDE PANEL RH HUS-132639X424
...
17
SUB= 140229 HUS-137563
...
18
SUB= 150301X424 HUS-132635X424
...
19
SUB= 140398 HUS-124252X
...
20
PLUG-DASH T HUS-8022J
...
21
PLATE.SLKSCR.DASH HUS-121448X017
...
22
SUB= 155925 HUS-131451
...
23
SUB= 140121 HUS-127440X
...
26
FOOTREST PAD HUS-133671
...
27
SUB= 145244X424 HUS-105465X424
...
29
SUB= 151630 HUS-110893X
...
33
CLIP T HUS-2751R
...
35
SPRING COMPRESSIO HUS-124181X
...
36
WASHER HUS-19111116
...
37
NUT-PUSH YT HUS-105531X
...
38
SUB= 137113 HUS-105509X
...
39
SUB= 158990 HUS-123549X
...
40
SUB= 151346 HUS-127334X
...
41
PAD-SPACER LT HUS-106082X
...
42
SUB= 140675 HUS-105511X
...
43
FENDER HUS-121642X424
...
45
SUB= 140551 HUS-126656X
...
46
SADDLE.6SP.GT HUS-106042X018
...
47
NUT HUS-73510500
...
48
DASH ASSEMBLY HUS-104608X
...
49
BUSHING OUTLET T HUS-3645J
...
50
STEM.TANK.FUEL HUS-139277
...
51
HOSE CLAMP HUS-123487X
...
52
SUB= 8542R HUS-7834R
...
53
SUB= 140506 HUS-7982J
...
54
SUB= 150383 HUS-138597
...
55
SUB= 145243X424 HUS-105464X424
...
57
SCREW HUS-17490612
...
58
SUB= 74780612 HUS-74760612
...
59
SUB= 73690600 HUS-73680600
...
60
WASHER PM HUS-19091216
...
61
SUB= 50675 HUS-73220400
...
63
BOLT HUS-74760616
...
64
WASHER HUS-19131316
...
65
SCREW HUS-74180512
...
66
SUB= 73690500 HUS-73680500
...
67
SCREW HUS-17720408
...
68
BOLT HUS-72140506
...
69
SCREW HUS-74191008
...
70
LOCKWASHER HUS-10071000
...
71
WELDNUT HUS-2029J
...
72
SCREW LT HUS-17211010
...
73
"""J"" FASTENER LT" HUS-104755X
...
74
SUB= 7605J HUS-123481X
...
75
SUB= 73690400 HUS-73680400
...
76
SCREW HUS-17190412
...
77
SCREW HUS-17490512
...
78
WASHER HUS-19111212
...
79
SCREW HUS-74981020
...
80
SPACER LT HUS-7206J
...
81
WASHER HUS-19070818
...
82
NUT HUS-73731000
...
83
BOLT HUS-74760716
...
84
NUT GTV HUS-73680700
...
85
SCREW LT HUS-17490608
...
88
SUB= 139888 HUS-105529X
...
91
BELT RETAINER GT HUS-105500X
...
92
WASHER HUS-19131312
...
95
CLIP T HUS-4171R
...
97
"KNOB 1/2"" YT" HUS-120068X
...
99
"BOLT,SHOULDER" HUS-127018X
...
101
SUPPORT RH YTH HUS-110853X
...
102
SUPPORT LH YTH HUS-110852X
...
104
SUB= 146525 HUS-123198X
...
106
WASHER HUS-19131614
...
107
SUB= 872050411 HUS-72050411
...
108
STRIP FORM HUS-121251X
...
109
SPRING COMPRESSED HUS-123740X
...
110
SPACER SPLIT HUS-121249X
...
111
BRKT SWITCH HUS-121246X
...
112
BUSHING HUS-121248X
...
113
SUB= 73900400 HUS-123976X
...
114
NUT HUS-73510400
...
115
WASHER HUS-19171912
...
116
SCREW GTV HUS-17490616
...
118
"SHIELD,HEAT" HUS-127637
