Husqvarna 42 (1994-04) Chain Saw

Model: 42 (1994-04)

Back To Assemblies

Save Part Not Listed?
product name

Oil Pump/Clutch

...
...
503657101
CLUTCH COMPLETE HUS-503657101
...
504210016
SPRING HUS-504210016
...
503521201
WASHER HUS-503521201
...
503444901
29105 POWER MATE SPROCKET SYS. HUS-640200097
...
501455201
19535 SPROCKET BEARING HUS-640200038
...
501583901
PROTECTOR HUS-501583901
...
501623502
OIL PUMP HUS-501623502
...
501664901
PLUG HUS-501664901
...
501664801
HUS-501664801
...
503230004
WASHER 6.1X9 HUS-503230004
...
501615801
SPRING HUS-501615801
...
725529356
SCREW MC6S 4X16 HUS-725529356
...
501624301
GASKET HUS-501624301
...
501636602
CLUTCH DRUM HUS-501636604
...
501455201
19535 SPROCKET BEARING HUS-640200038
...
501457402
11892 POWER MATE RIM HUS-640200010
...
501583901
PROTECTOR HUS-501583901
...
501583601
GEAR WHEEL HUS-501583601
...
503212906
SCREW HUS-503212906
...
501872301
Catch Adj.Screw HUS-501872301
...
503166901
HUS-503166901
...
501876501
OIL HOSE HUS-501876501
...
501544102
OIL SCREEN HUS-501544102

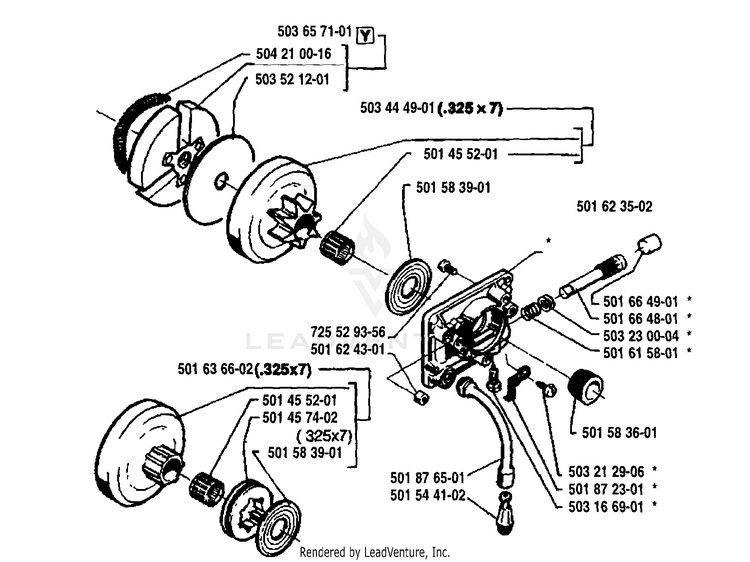

Schematic Image Zoomed
