product name

Husqvarna 42 (1992-03) Chain Saw

Model: 42 (1992-03)

Back To Assemblies

Save Part Not Listed?
product name

Ignition / Flywheel

...
...
725529155
SCREW MC6S 4X12 HUS-725529155
...
503230001
WASHER 4.2X9 HUS-503230001
...
501812801
IGNITION COIL HUS-501812801
...
501485402
SPARK PLUG CONN. KIT HUS-501485402
...
501492703
COVER HUS-501492703
...
729227505
SCREW HUS-503212806
...
503089702
SWITCH ON/OFF HUS-503717901
...
501629003
FRONT HANDLE HUS-501629003
...
503211407
Screws HUS-503214974
...
501839801
SHORTING LEAD HUS-501839801
...
503230042
WASHER HUS-503230042
...
501634801
SPRING HUS-501634801
...
501673201
PAWL HUS-501673201
...
501819901
SCREW M5X14 HUS-501819901
...
731231801
NUT HUS-731231801
...
503505302
FLYWHEEL HUS-503730601
...
501812701
ELECTRONIC BOX HUS-501812701
...
725532955
SCREW MC6S 5X16 HUS-725532955
...
501839701
LEAD HUS-501839701

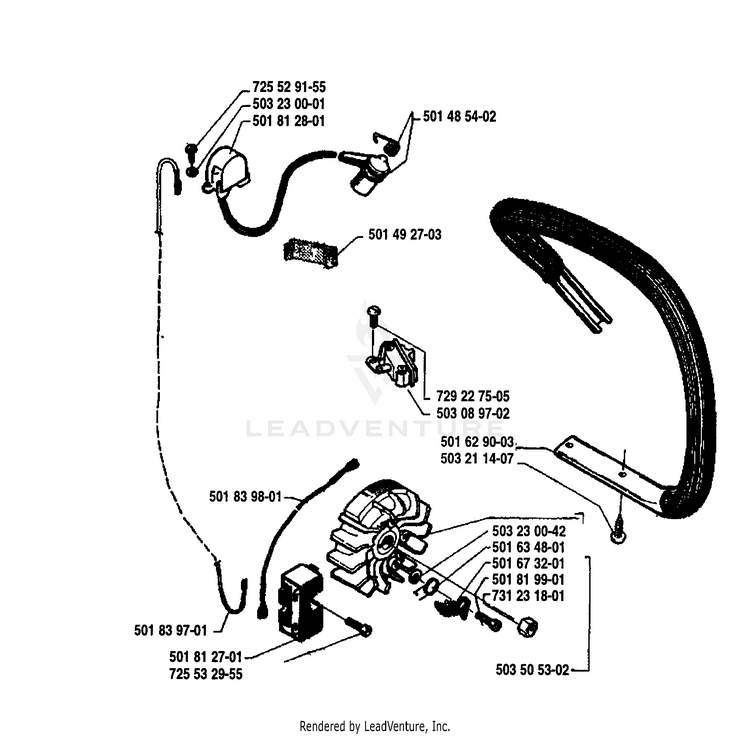

Schematic Image Zoomed
