Husqvarna 42 (1992-03) Chain Saw

Model: 42 (1992-03)

Back To Assemblies

Save Part Not Listed?
product name

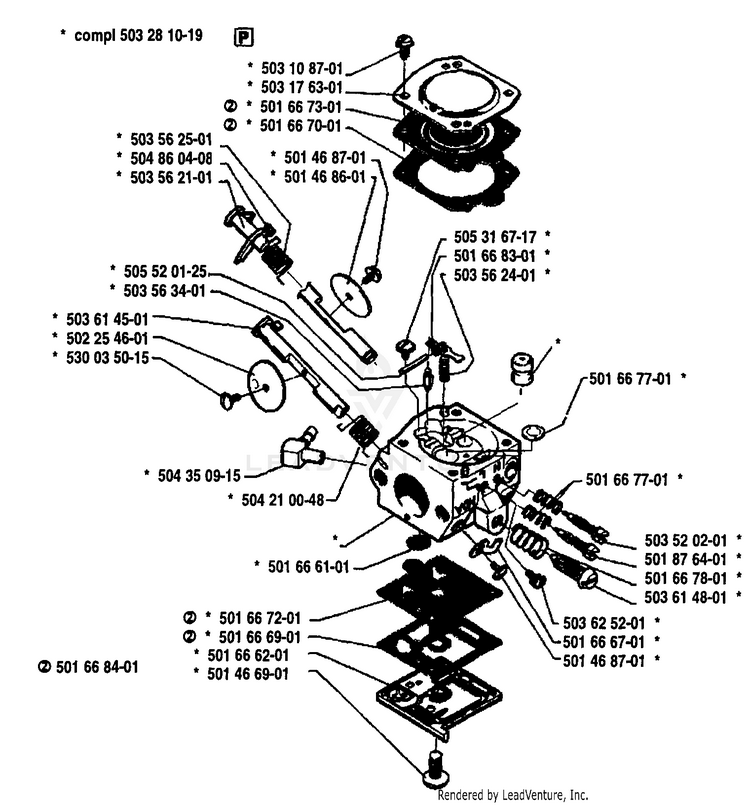

Carburetor Parts

...
...
503281019
CARBURETOR CPL HDA-98 WALBRO HUS-503281019
...
503108701
SCREW HUS-503584601
...
503176301
COVER METERING DIAPHR. HUS-503176301
...
501667301
METERING DIAPHRAGM HUS-501667301
...
501667001
GASKET, METERING SIDE HUS-501667001
...
503562501
SPRING HUS-537158101
...
504860408
LEVER HUS-537158201
...
503562101
Choke Shaft HUS-503562101
...
501468701
SCREW HUS-501468701
...
501468601
SHUTTER-CHOKE HUS-507430749
...
505520125
FULCRUM PIN HUS-505520125
...
503563401
INLET NEEDLE HUS-503563401
...
503614501
HUS-503614501
...
502254601
THROTTLE FLAP HUS-502254601
...
530035015
SCREW SHUTTERS HUS-530035015
...
504350915
Nipple HUS-504350915
...
504210048
THROTTLE SPRING HUS-504210048
...
501666101
FUEL INLET SCREEN HUS-501666101
...
501667201
PUMP DIAPHRAGM HUS-502254701
...
501666901
GASKET, PUMP SIDE HUS-501666901
...
501666201
COVER, PUMP SIDE HUS-501666201
...
501466901
SCREW HUS-501466901
...
501668401
REPAIR KIT DIAPHRAGM SET HUS-501668401
...
501468701
SCREW HUS-501468701
...
501666701
THROTTLE STOP HUS-501666701
...
503625201
SCREW HUS-503625201
...
503614801
IDLE SPEED SCREW HUS-503614801
...
501667801
IDLE SCREW SPRING HUS-530035121
...
501876401
NEEDLE IDLE HUS-501876401
...
503520201
NEEDLE HIGH SPEED HUS-501876301
...
501667701
SPRING HUS-501667701
...
501667701
SPRING HUS-501667701
...
503562401
SPRING HUS-503562401
...
501668301
LEVER HUS-501668301
...
505316717
SCREW HUS-505316717
