Husqvarna 42 (1992-03) Chain Saw

Model: 42 (1992-03)

Back To Assemblies

Save Part Not Listed?
product name

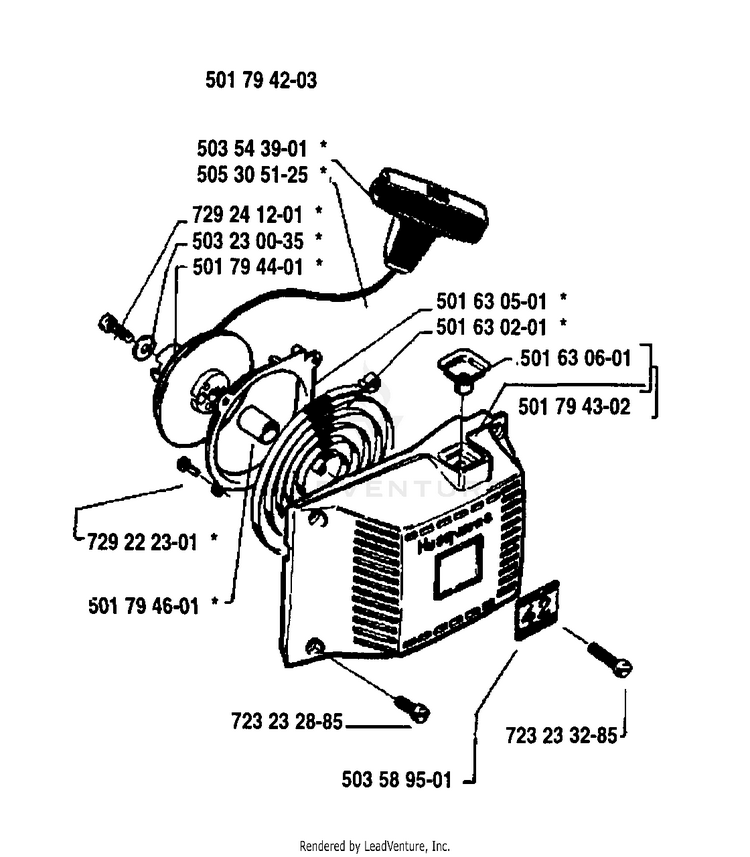

Starter Assembly

...
...
501794203
STARTER ASS'Y HUS-501794203
...
503543901
STARTER HANDLE HUS-503543901
...
505305125
STARTER ROPE HUS-505305125
...
729241201
SCREW HUS-503210716
...
501794401
STARTER PULLEY HUS-501794401
...
503230035
WASHER 5.3X15 HUS-503230035
...
501630501
GUARD RING HUS-501630501
...
501630201
RECOIL SPRING HUS-501630201
...
501630601
SLEEVE HUS-501630601
...
501794302
STARTER HOUSING HUS-501794302
...
503589501
HUS-503589501
...
723233285
SCREW MC6S 5X22 HUS-725533255
...
723232885
SCREW HUS-724132855
...
501794601
HUS-501794601
...
729222301
SCREW CSK B4X8 HUS-729222301
