Husqvarna 4181-44 (1994) Tractor

Model: 4181-44 (1994)

Back To Assemblies

Save Part Not Listed?
product name

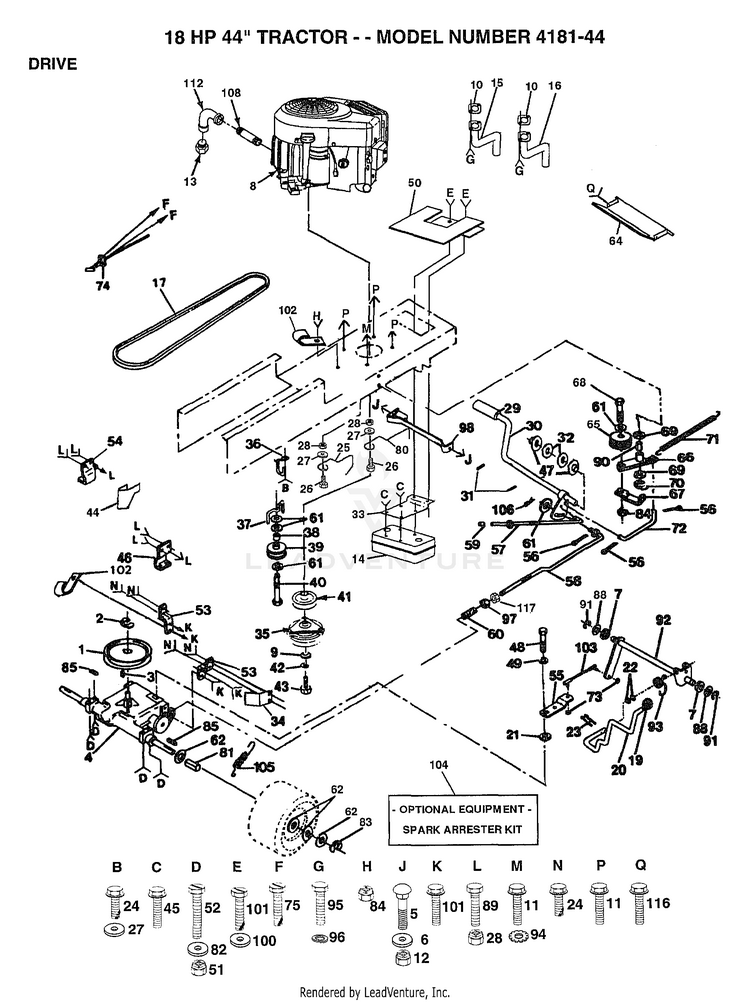

18HP 44" TRACTOR/DRIVE

...
...
1
PULLEY TRANSAXLE HUS-121327X
...
2
RING HUS-12000004
...
3
SUB= 2228M1 HUS-2228M
...
4
TRANSAX. PRLES. HUS-138788
...
5
BOLT HUS-72140506
...
6
WASHER T HUS-19111012
...
7
BUSHING HUS-71208
...
8
ENGINE HUS-137517
...
9
WASHER HUS-126197X
...
10
SUB= 272250 HUS-8545J
...
11
SCREW LT HUS-17490624
...
12
SUB= 73690500 HUS-73680500
...
14
SUB= 149723 HUS-137978
...
15
EXHAUST.B&S.18.LH HUS-144069
...
16
EXHAUST.B&S.18.RH HUS-144068
...
17
BELT.GRDRV.94.75 HUS-123796X
...
19
KNOB T (1/2-HOLE) HUS-106933X
...
20
SUB= 141002 HUS-123781X
...
21
WASH-SHFT PLT LT HUS-105701X
...
22
WASHER HUS-19171216
...
23
PIN COTTER 1/8 HUS-76020416
...
24
SCREW HUS-17490612
...
25
KEEPER BELT ENGLH HUS-121218X
...
26
BOLT HUS-74760616
...
27
WASHER HUS-19131312
...
28
SUB= 73690600 HUS-73680600
...
29
PEDAL COVER T HUS-8883R
...
30
SUB= 149001 HUS-122424X
...
31
SUB= 2882J HUS-1572H
...
32
WASHER LT HUS-19211616
...
33
BRACKET MUFFLER HUS-122439X
...
34
"KEEPER,BELT RH" HUS-123792X
...
35
SUB= 142600 HUS-137140
...
36
KEEPER BELT CNTSP HUS-140312
...
37
BELT KEEPER LT HUS-109070X
...
38
SPACER T HUS-4470J
...
39
PULLEY.IDLER.FLAT HUS-123674X
...
40
BOLT HUS-74760644
...
41
PULLEY ENGINE HUS-136906
...
42
LOCKWASHER HUS-10040700
...
43
SUB= 150280 HUS-71170768
...
44
KEEPER BELT LH HUS-123791X
...
45
SCREW ST HUS-17190408
...
46
BRKT TRANS RH HUS-123776X
...
47
NYLON BEARING HUS-120183X
...
48
SUB= 74550412 HUS-71040412
...
49
WASHER PM HUS-19091216
...
50
SHIELD HEAT LT HUS-143600
...
51
NUT HUS-73800500
...
52
BOLT HEX HUS-74780544
...
53
STRAP TORQUE HUS-123787X
...
54
BRKT TRANS LH HUS-123780X
...
55
"ARM,SHIFT" HUS-123794X
...
56
COTTER PIN HUS-76020412
...
57
BRAKE PARK ROD HUS-133261
...
58
ROD BRAKE HUS-123786X
...
59
PLUNGER CAP T HUS-71673
...
60
"SPRING,ROD BRAKE" HUS-126909X
...
61
WASHER HUS-19131316
...
62
WASHER HUS-123800X
...
64
HEAT SHIELD HUS-128953
...
65
SUB= 139245 HUS-127783
...
66
ARM IDLER HUS-123789X
...
67
RETAIN BELT HUS-123205X
...
68
SUB= 74930624 HUS-74760624
...
69
WASHER LT HUS-110812X
...
70
KLIP RING HUS-12000039
...
71
"SPRING, RETURN LT" HUS-105709X
...
73
NUT 1/4-28 HUS-73530400
...
74
SUB= 532132748 HUS-132747
...
75
SCREW LT HUS-17720410
...
80
"KEEPER,BLT ENG LT" HUS-105730X
...
81
SPACER HYT HUS-108097X
...
82
WASHER M HUS-19111216
...
83
E RING HYT HUS-12000053
...
84
NUT HUS-73800600
...
85
SQ KEY STD HUS-9396E
...
88
WASHER D HUS-19212016
...
89
SUB= 74780612 HUS-74760612
...
90
"LY, BEARING" HUS-105706X
...
91
KLIP RING HUS-12000008
...
92
"SHAFT,SHIFTER" HUS-123772X
...
93
"SPRING,TORSION" HUS-123782X
...
94
LOCKWASHER HUS-11050600
...
95
SUB= 74780414 HUS-74780412
...
96
LOCKWASHER HUS-10040400
...
97
NUT HUS-73800600
...
98
BRACKET.ASM.MTG HUS-137141
...
100
WASHER HUS-19132012
...
101
SCREW HUS-17490512
...
102
CLIP T HUS-2751R
...
103
"ROD,TIE " HUS-123793X
...
104
SUB= 532137180 HUS-137180
...
105
SUB= 146682 HUS-110422X
...
106
RETAINER M HUS-4497H
...
108
PIPE NIPPLE LT HUS-13280336
...
112
ELBOW HUS-13200300
...
116
SCREW HUS-17021008
...
117
NUT HUS-73350600
