Husqvarna 4180-44 (1994) Tractor

Model: 4180-44 (1994)

Back To Assemblies

Save Part Not Listed?
product name

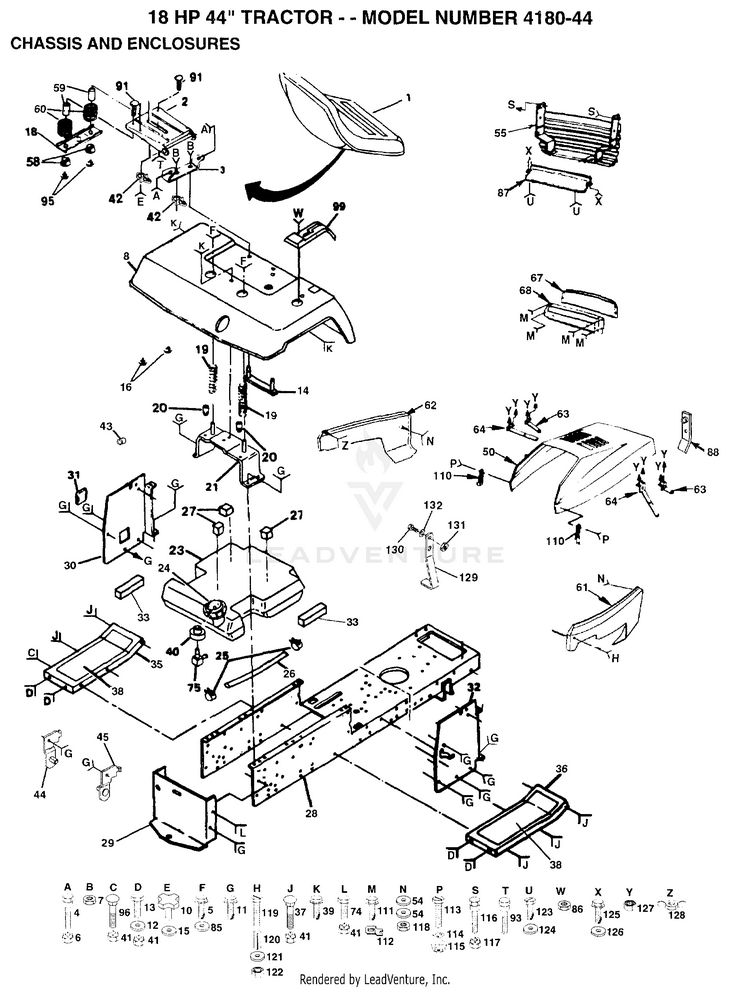

CHASSIS AND ENCLOSURES

...
...
1
SUB= 140121 HUS-127429X
...
2
SUB= 155925 HUS-140552
...
3
BRACKET PVT SEAT HUS-140551
...
4
BOLT.SHLD.5/16-18 HUS-139888
...
5
SCREW LT HUS-17490508
...
6
SUB= 73690500 HUS-73680500
...
7
SUB= 73690600 HUS-73680600
...
8
FENDER YT/GT HUS-140002X424
...
10
"KNOB 1/2"" YT" HUS-120068X
...
11
SCREW HUS-17490612
...
12
WASHER HUS-19131312
...
13
BOLT HUS-74780616
...
14
STRAP ASM FENDER HUS-140675
...
15
WASHER HUS-19171912
...
16
CAP SPRING HUS-124238X
...
18
BRKT SWITCH HUS-121246X
...
19
SPRING COMPRESSIO HUS-124181X
...
20
NUT-PUSH YT HUS-105531X
...
21
BRKT.ASM.FENDER HUS-137113
...
23
SUB= 151346 HUS-141069
...
24
CAP ASM FUEL HUS-140527
...
25
HOSE CLAMP HUS-123487X
...
26
FUEL LINE T HUS-8543R
...
27
PAD-SPACER LT HUS-106082X
...
28
SUB= 145501 HUS-140341
...
29
DRAW BAR HUS-123785X
...
30
PANEL.DASH.LH HUS-138644
...
31
COVER ACCESS HUS-121794X
...
32
PANEL.DASH.RH HUS-138643
...
33
PAD IDLER TI HUS-109227X
...
35
SUB= 145244X424 HUS-105465X424
...
36
SUB= 145243X424 HUS-105464X424
...
37
BOLT HUS-72110606
...
38
FOOTREST PAD HUS-133671
...
39
SCREW LT HUS-17490608
...
40
BUSHING OUTLET T HUS-3645J
...
41
NUT HUS-73800600
...
42
CLIP PUSH - IN HUS-140407
...
43
SUB= 9151R HUS-110436X
...
44
BRACKET ASM LH HUS-139886
...
45
BRACKET ASM RH HUS-139887
...
50
SUB= 150301X424 HUS-132635X424
...
54
WASHER PM HUS-19091216
...
55
SUB= 131681X431 HUS-131681
...
58
BUSHING HUS-121248X
...
59
SPACER SPLIT HUS-121249X
...
60
SPRING COMPRESSED HUS-123740X
...
61
PANEL SIDE RH HUS-140679X424
...
62
PANEL SIDE LH HUS-140678X424
...
63
SUB= 155013 HUS-104618X
...
64
SUB= 155013 HUS-106784X
...
67
LENS LT HUS-106395X
...
68
SUB= 147717 HUS-124392X417
...
74
SUB= 74780612 HUS-74760612
...
75
STEM.TANK.FUEL HUS-139277
...
85
WASHER HUS-19131614
...
86
NUT HUS-124346X
...
87
"STRAP,GRILL" HUS-105419X424
...
88
SUB= 532132644 HUS-132644
...
91
SUB= 872050411 HUS-72050411
...
93
"BOLT,SHOULDER" HUS-127018X
...
95
SUB= 73900400 HUS-123976X
...
96
SUB= 72110608 HUS-72140608
...
99
CONSOLE SHIFTER HUS-139992
...
110
HOOD LATCH T HUS-109808X
...
111
SCREW LT HUS-17211010
...
112
"""J"" FASTENER LT" HUS-104755X
...
113
SCREW HUS-74191008
...
114
LOCKWASHER HUS-10071000
...
115
WELDNUT HUS-2029J
...
116
SUB= 7605J HUS-123481X
...
117
SUB= 73690400 HUS-73680400
...
118
SUB= 50675 HUS-73220400
...
119
SCREW HUS-74981020
...
120
SPACER LT HUS-7206J
...
121
WASHER HUS-19070818
...
122
NUT HUS-73731000
...
123
SCREW HUS-17490512
...
124
WASHER HUS-19131210
...
125
SCREW HEX CRT HUS-17490412
...
126
WASHER HUS-19091016
...
127
NUT HUS-73510400
...
128
SUB= 146525 HUS-123198X
...
129
STOP.OVER.CENTER HUS-142992
...
130
BOLT HUS-72240608
...
131
NUT HUS-73800600
...
132
WASHER GT HUS-19131612
