Husqvarna 4180-44 (1994) Tractor

Model: 4180-44 (1994)

Back To Assemblies

Save Part Not Listed?
product name

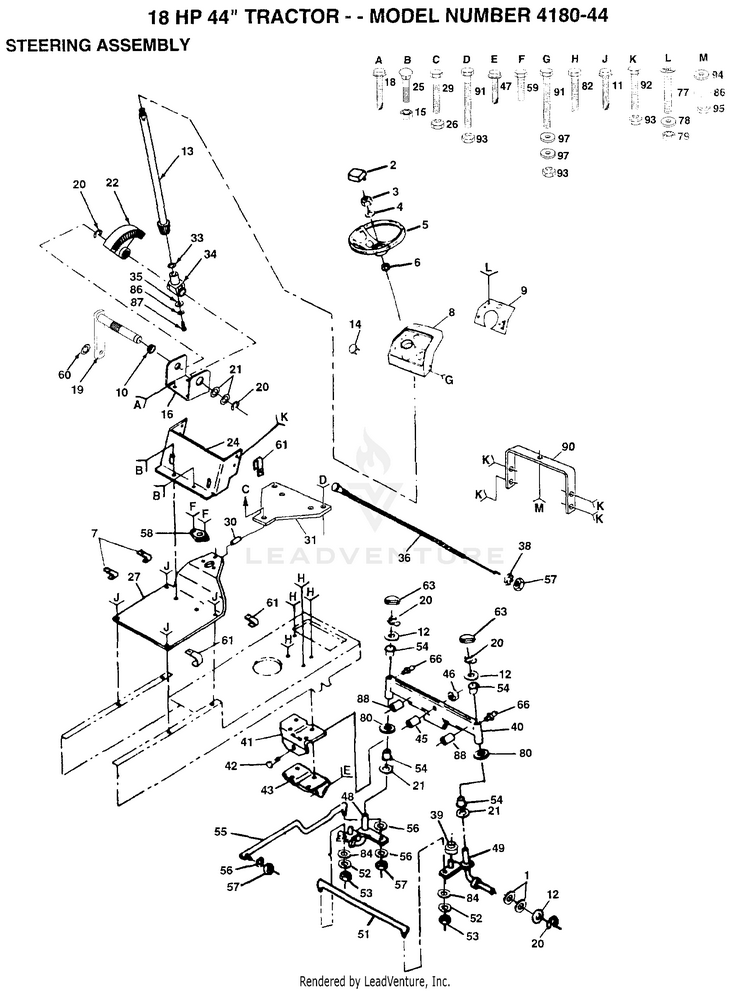

STEERING

...
...
1
WASHER HUS-121749X
...
2
"INSERT,STR WHEEL" HUS-126805X
...
3
SUB= 73360800 HUS-73940800
...
4
WASHER HUS-100712K
...
5
SUB= 150546 HUS-121472X
...
6
ADAPTER LT HUS-100711L
...
7
"CLIP,INSULATOR" HUS-126471X
...
8
DASHBOARD BLACK HUS-140398
...
9
PLATE SLKSCR YP HUS-140299X012
...
10
NYLINER T HUS-109816X
...
11
SCREW HUS-17490612
...
12
WASHER HUS-121748X
...
13
STEERING SHAFT HUS-128758
...
14
PLUG-DASH T HUS-8022J
...
15
NUT HUS-73510500
...
16
"BRKT,STEERING" HUS-124036X
...
18
SCREW HUS-17490612
...
19
SUB= 918127501 HUS-127501
...
20
RING HUS-12000029
...
21
WASHER .T HUS-6266H
...
22
GEAR SECTOR HUS-136874
...
24
LOWER DASH HUS-104805X
...
25
SCREW HUS-74180512
...
26
NUT HUS-73800500
...
27
SUB= 127543X011 HUS-127543
...
29
BOLT HUS-74760532
...
30
SPACER HUS-121236X
...
31
PLATE.SUPT.BATTER HUS-140181
...
33
THRUST WASHER HUS-57079
...
34
SUPPORT.SHAFT HUS-124035X
...
35
SUB= 532126684 HUS-126684X
...
36
CHOKE CONTROL HUS-132781
...
38
LOCKWASHER HUS-11050600
...
39
BUSHING SPIN STOP HUS-141052
...
40
AXLE ASM FRONT HUS-142033
...
41
SUPPORT-SADDL T HUS-105663X
...
42
BOLT LT HUS-74761060
...
43
SUPPORT.SADDLE.FT HUS-105664X
...
45
BEARING HUS-110438X
...
46
"NUT-LOC,FLANGE LT" HUS-73901000
...
47
SCREW LT HUS-17490508
...
48
SPINDEL LH HUS-142455
...
49
SPINDEL RH HUS-142456
...
51
TIE ROD HUS-130467
...
52
LOCKWASHER HUS-10040500
...
53
NUT.LOCK.5/16-24 HUS-73810500
...
54
COL. SRTG. BEAR. HUS-3366R
...
55
SUB= 532130468 HUS-130468
...
56
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
57
SUB= 7810H HUS-73610600
...
58
SUB= 155108 HUS-1554J
...
59
SUB= 98000165 HUS-17431008
...
60
WASHER HUS-19131210
...
61
CLIP T HUS-2751R
...
63
CAP HUS-121232X
...
66
ZERK M HUS-6855M
...
77
SCREW HUS-74180512
...
78
WASHER HUS-19111116
...
79
NUT HUS-73510500
...
80
WASHER HUS-19272016
...
82
SCREW HUS-17490612
...
84
WASHER M HUS-19111216
...
86
LOCKWASHER HUS-10040400
...
87
"SCREW,SPECIAL" HUS-71070410
...
88
AXLE PIN HUS-132624
...
90
SUPPORT ASS'Y HUS-124130X
...
91
BOLT HUS-74780620
...
92
BOLT HUS-74780616
...
93
NUT HUS-73800600
...
94
WASHER PM HUS-19091216
...
95
SUB= 50675 HUS-73220400
...
97
WASHER HUS-19131312
