Husqvarna 4125 H (1991-01) Ride Mower

Model: 4125 H (1991-01)

Save
 Don't See Your Part Listed?
product name

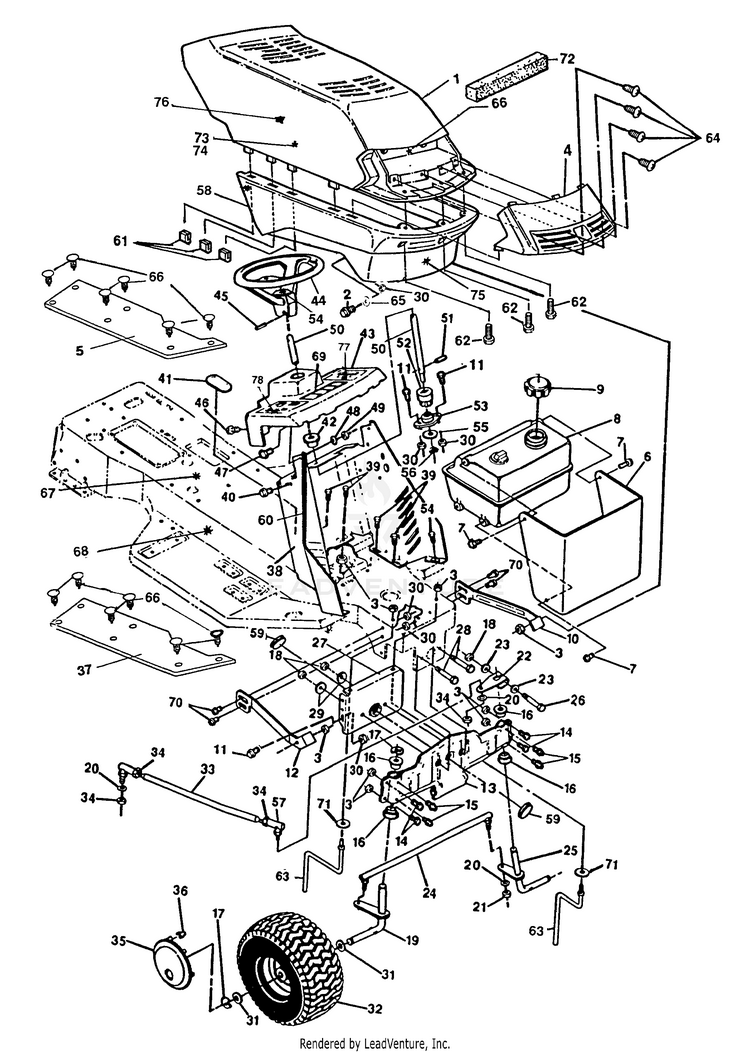

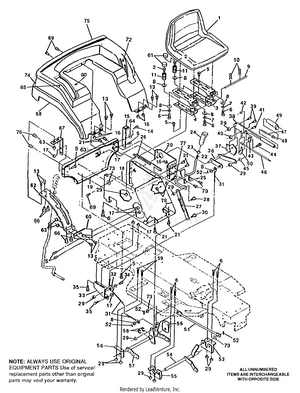

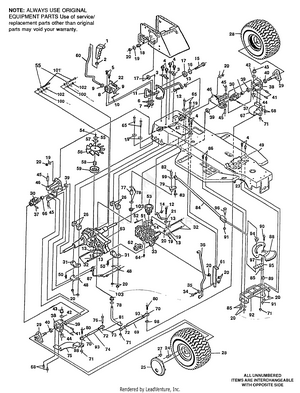

Chassis/Seat

...
...
1
Seat HUS-310384
...
2
Screw, 5/16-18 x 5/8 In. HUS-451814
...
3
Channel, Seat L. H. HUS-305991
...
4
Channel, Seat R. H. HUS-304480
...
5
Screw, Hx Hd, Wd Fl 5/16-18 x 3/4 In. HUS-56030
...
6
Screw, Hx Hd, 5/16-18 x 3/4 In. HUS-122007
...
7
Washer, Lock 5/16 In. HUS-120638
...
8
Washer, Flat, 11/32 In. HUS-120393
...
9
Rod, Seat Support HUS-304481
...
10
Hair Pin, .073 Dia. x 1 13 In. HUS-36368
...
11
Seat Spring HUS-305520
...
12
Washer, Flat, 9/32 In. HUS-1084
...
13
Screw, Hx Hd, 1/4-20 x 5/8 In HUS-180018
...
14
Screw, 1/4-20 x 3/4 In HUS-180020
...
15
Fender Support, L H HUS-305379
...
16
Nut, Lock 1/4-20 Thd HUS-1502
...
17
Nut, Hx, Wd Fl, Lk 5/16-18 Thd HUS-55273
...
18
Seat Support HUS-304475
...
19
Support, Fender & Seat HUS-304476
...
20
Bracket, Support Engage HUS-302208
...
21
Screw, Hx Wshr Hd Tap, 5/16-18 x 1/2 In HUS-35497
...
22
Assembly, Engagement Rod HUS-306391
...
23
Nut, Hx Ctrlk, 1/2-13 Thd. HUS-120238
...
24
Handle, Lift HUS-304729
...
25
Clip HUS-302197
...
26
Spring, Tension HUS-305306
...
27
Assembly, Spring Cartridge HUS-304448
...
28
Shoulder Bolt, 7/16 In HUS-305989
...
29
Nut, Hx Ctrlk, 5/16-18 Thd HUS-1498
...
30
Shoulder Bolt, 5/16-18 Thd HUS-20507
...
31
Cable, Deck Lift HUS-303227
...
32
Pulley HUS-48306
...
33
Assembly, Pulley Bracket HUS-303230
...
34
Shoulder Bolt, 5/16-18 Thd HUS-305522
...
35
Bolt, Carriage, 5/16-18 x 5/8 In HUS-126211
...
36
Assembly, Upper Shaft HUS-302205
...
37
Quadrant HUS-302383
...
38
Lift Lever HUS-9143
...
39
Shoulder Bolt, 5/16-18 Thd. HUS-300171
...
40
Nut, Hx Wd Fl Lk 5/16-18 Thd. HUS-44108
...
41
Clevis Pin HUS-300310
...
42
E-Ring HUS-300311
...
43
Link HUS-302357
...
44
Shoulder Bolt, 5/16-18 Thd HUS-36149
...
45
Washer HUS-45602
...
46
Actuator Rod HUS-58330
...
47
Spring, Height Adjust HUS-58326
...
48
Knob, Height Adjust HUS-58325
...
49
Handle, Lift HUS-304730
...
50
Pawl, Height Adjust HUS-301239
...
51
Tie Rod HUS-302380
...
52
Cotter Pin HUS-121222
...
53
Bracket, L. H Front Hanger HUS-308339
...
54
Assembly, Front Lift Shaft HUS-308345
...
55
Bracket, R. H. Front Hanger HUS-308340
...
56
Bracket, Hanger HUS-308343
...
57
Assembly, Rear Lift Shaft HUS-308342
...
58
E-Ring HUS-36625
...
59
Screw, Hx Hd, 5/16-18 x 5/8 In HUS-180075
...
60
Support, Shift Plate HUS-306293
...
61
Cover, Seat Spring HUS-56907
...
62
Quadrant HUS-315849
...
63
Nut, Hx, Wd Fl Lk, 1/4-20 Thd HUS-51335
...
64
Washer, Flat HUS-120385
...
65
Decal, Speed Hydro HUS-310609
...
66
Screw, Hx Hd, Tap #10 x 1/2 In HUS-300302
...
67
Fender Support, R H. HUS-306399
...
68
Fender HUS-316329
...
69
Screw, Hx, Wshr Hd, Tap 1/4-20 x 5/8 In. HUS-995338
...
70
Decal, Gear Shift, 6 Speed HUS-307763
...
71
Decal, Gear Shift, Neutral HUS-307764
...
72
Decal, Mower Deck Clutch ON/OFF /Deck Cutting Height HUS-307770
...
73
Washer, Flat, 13/32 In HUS-274517
...
74
Decal, Hydrostatic HUS-316628
...
75
Decal, Rear Fender HUS-311724
...
76
Screw, Tap, 5/16-18 x 7/8 In HUS-50634
...
77
Screw, Hx, 3/8-16 x 2-1/4 In HUS-122188
...
78
Nut, Hx Keps, 3/8-16 Thd HUS-271190
...
79
Screw, 1/4-20 x 1/2 In HUS-180016
...
80
Decal, Husqvarna, USA HUS-316698
...
81
Operator's Manual (Not Illustrated) English HUS-316768
...
82
Operator's Manual (Not Illustrated) French HUS-316769
...
83
Parts Manual (Not Illustrated) HUS-316990

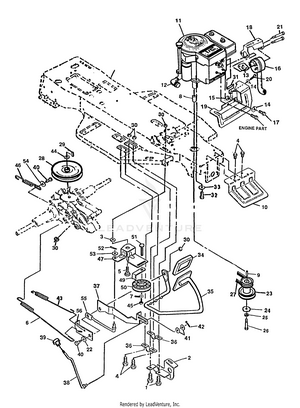

Drive/Engine

...
...
1
Screw, 5/16-18 x 3/4 In. HUS-122007
...
2
Front Hanger Bracket HUS-308340
...
3
Flatwasher HUS-45602
...
4
Screw, Hx Hd, Wshr Tap, 5/16-18 x 1/2 In. HUS-35497
...
5
Shoulder Bolt, 5/16-18 HUS-310269
...
6
Spring, Brake, Hydro HUS-309935
...
7
Lockwasher HUS-120382
...
8
Spacer, Engine Pulley HUS-304246
...
9
Key, Square, 1/4 HUS-57791
...
10
Deflector, Exhaust HUS-311530
...
12
Elbow, 900, 3/8 In. HUS-111316
...
13
Gasket, Muffler HUS-46708
...
14
Washer, Split Lock HUS-120380
...
15
Nut, Hex 5/16-18 Thd. HUS-120376
...
16
Muffler, Round 5" Diameter HUS-310284
...
17
Screw, Wa Tap, 1/4-20 x 7/8 In. HUS-300314
...
18
Heat Shield, Carburetor HUS-305409
...
19
Heat Shield, Engine HUS-310340
...
20
Screw, Hex Hd, 1/4-20 x 3-1/2 In. HUS-189293
...
21
Bolt, Shoulder, 5/16-18 x 4-1/3 In. HUS-305407
...
22
Wave Washer HUS-30289
...
23
Pulley, Engine HUS-313546
...
24
Washer, Pilot HUS-56431
...
25
Washer, Split, Lock 7/8 In. HUS-120383
...
26
Screw, Hx Hd, 7/16-20 X 5 In. HUS-428644
...
27
V-Belt HUS-310275
...
28
Pulley HUS-303109
...
29
Key, Woodruff, #606 HUS-3021
...
30
Nut, Hex, Ctrlk, 5/16-18 Thd. HUS-1498
...
31
Spacer, Heat Shields HUS-310292
...
32
Screw, Hex Hd Tap, 3/8-16 x 1-1/4 In. HUS-50947
...
33
Washer, 3/8 In. HUS-138489
...
34
Pad, Clutch/Brake, Molded HUS-304490
...
35
Assembly, Clutch/Brake Arm HUS-310258
...
36
Bracket, Clutch/Brake Arm HUS-313271
...
37
Lever, Park Brake HUS-310260
...
38
Rod, Parking Brake HUS-304217
...
39
Knob, Parking Brake HUS-304367
...
40
Shoulder Bolt, 5/16-18 Thd. HUS-310087
...
41
Washer, 9/16 In. HUS-120385
...
42
Cotter Pin HUS-121223
...
43
Spring, Clutch HUS-313660
...
44
Retaining Ring HUS-22053
...
45
Nut, Flange, 3/8-16 Thd. HUS-120377
...
46
Spring, Brake HUS-309935
...
47
Arm, Idler HUS-314786
...
48
Shoulder Bolt, 3/8-16 Thd. HUS-310269
...
49
Belt Retainer HUS-39659
...
50
Pulley HUS-303031
...
51
Carriage Bolt, 3/8-16 x 1-1/2 In. HUS-45892
...
52
Hair Pin HUS-36368
...
53
Flatwasher, 13/32 In. HUS-120394
...
54
Flatwasher HUS-308188
...
55
Clutch Rod HUS-314738
...
56
Brake Bracket, Neutral HUS-310259

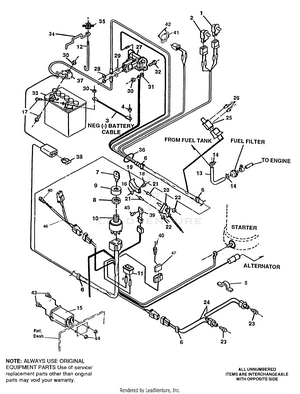

Electrical

...
...
1
Seat Switch HUS-308187
...
2
Deck Safety Switch HUS-12553
...
3
Cable, Battery, Negative HUS-55511
...
4
Nut, Hx, Keps, 5/16-18 Thd. HUS-271184
...
5
Press Clip HUS-41482
...
6
Tie Cable HUS-57444
...
7
Key, Ignition Switch HUS-300626
...
8
Nut, Switch HUS-300193
...
9
Boot, Switch HUS-300194
...
10
Switch, Ignition HUS-305720
...
11
Switch, Light HUS-300334
...
12
Rod, Battery Hold-Down HUS-57551
...
13
Gas Line, 13-1/2" (cut to length) HUS-47452
...
14
Clamp, Gas Line HUS-47345
...
15
Minature Hour Meter HUS-304739
...
16
Nut, Hex, #8-32 Thd. HUS-120622
...
17
Screw, 1 /4-20 x .63 HUS-120854
...
18
Screw, Ph Pn, #8-32 x 3/8 In. HUS-159585
...
19
Knob, Throttle Control HUS-304439
...
20
Throttle Control HUS-315716
...
21
Screw, #10-24 X 5/8 In. HUS-159943
...
22
Nut, Hx, Nylon Lock, #10-24 Thd. HUS-308459
...
23
Bulb Headlamp HUS-52572
...
24
Assembly, Light Wire HUS-303064
...
25
Switch HUS-57476
...
26
Screw, Pn Hd, Tap #12 x 112 In. HUS-57220
...
27
Solenoid HUS-53716
...
28
Nut, Hx 5/16-24 Thd. HUS-120368
...
29
Washer, Lock 5/16 In. HUS-138485
...
30
Nut, Hx, Keps, 1/4-20 Thd. HUS-271172
...
31
Nut, Hx, Ctrlk, 1/4-20 Thd. HUS-1502
...
32
Screw, 1/4-20 X 3/4 In. HUS-187745
...
33
Battery HUS-302257
...
34
Bracket, Battery Hold-Down HUS-302912
...
35
Wingnut HUS-310067
...
36
Wiring Harness HUS-315691
...
37
Boot, Rubber (Battery Cable) HUS-308201
...
38
Fuse, 15A-32V HUS-302031
...
39
Low Voltage Sensor HUS-307056
...
40
Bulb Indicator HUS-57769
...
41
Seat Switch HUS-57547
...
42
Screw, 1/4-20 x .38 HUS-160505
...
43
Screw, #6-32 x 1 /2 1 n. HUS-308347
...
44
Nut, #6-32 Thd. HUS-271482
...
45
Screw, Plastite HUS-300302
...
46
Low Fuel Wire HUS-305778
...
47
Lamp holder 4 Pin HUS-305702

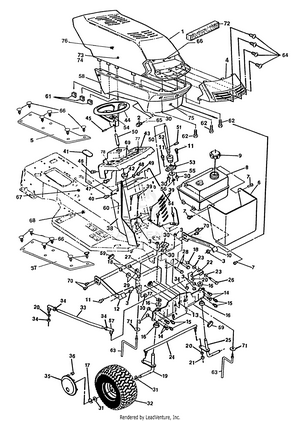

Hood/Front End

...
...
1
Hood HUS-310577
...
2
Shoulder Bolt, 5/16-18 Thd. HUS-25086
...
3
Nut, Hx, Ctrlk, 5/16-18 Thd. HUS-1498
...
4
Lens, Headlight HUS-306858
...
5
Assembly, Foot Pad L. H. HUS-314889
...
6
Heat Shield, Gas Tank HUS-307437
...
7
Screw, Hx Hd, Plastite 1/4 Dia. x 3/4 In. HUS-300303
...
8
Tank, Gas 1.5 Gal W/Sensor HUS-305820
...
8
Low Fuel Sensor HUS-305804
...
9
Cap, Fuel HUS-12501
...
10
Bracket, Hood L. H. HUS-309461
...
11
Screw, Hx Hd, Wd Fl 5/16-18 x 3/4 In. HUS-56030
...
12
Bracket, Hood R. H. HUS-309460
...
13
Front Axle W/Bearings HUS-310670
...
14
Screw, Hx Hd, 5/16-18 x 5/8 In. HUS-180075
...
15
Grease Fitting HUS-706
...
16
Bearing, Spindle HUS-302303
...
17
E-Ring HUS-36625
...
18
Nut, Hx, Ctrlk, 3/8-16 Thd. HUS-1499
...
19
Spindle, R. H. HUS-305340
...
20
Washer, Split, Lock 3/8 In. HUS-120382
...
21
Nut, Hx, 3/8-24 Thd. HUS-120369
...
22
Steering Arm, Upper HUS-317019
...
23
Washer, Flat, 25/64 In. HUS-996416
...
24
Assembly, Tie Rod HUS-300328
...
25
Spindle, L.H. HUS-305339
...
26
Screw, Hx Hd, 3/8-16 x 2-1/2 In. HUS-180134
...
27
Support Bracket, Front Axle HUS-306103
...
28
Screw, Hx Hd, 3/8-16 x 3 In. HUS-122207
...
29
Washer, Spring HUS-2483
...
30
Nut, Hx, Wd Fl Lk 5/16-18 Thd. HUS-55273
...
31
Washer, Flat, 3/4 In. HUS-642
...
32
Tire, Rear HUS-301140
...
32
Wheel HUS-312739
...
32
Valve Stem HUS-24167
...
32
Bearing HUS-314416
...
33
Drag Link HUS-302908
...
34
Nut, Hx, Jam, 3/8-24 Thd. HUS-124925
...
35
Hubcap, Front HUS-306569
...
36
Clip, Hubcap HUS-306669
...
37
Assembly, Foot Pad R. H. HUS-314888
...
38
Dash, Lower HUS-304702
...
39
Screw, Tap, 5/16-18 x 3/8 In. HUS-45263
...
40
Screw, Self-Tap, 1/4-20 x 1/2 In. HUS-995346
...
41
Cover HUS-305280
...
42
Bushing, Upper Steering HUS-303228
...
43
Dash, Upper HUS-307453
...
44
Steering Wheel HUS-303132
...
45
Pin, , Spring,1/4 x 2 In. HUS-456378
...
46
Screw, Tap, 1/4-20 x 1/2 In. HUS-305850
...
47
Screw, Hx Hd, 1/4-20 x 5/8 In. HUS-120854
...
48
Washer, Flat, 9/32 In. HUS-120392
...
49
Nut, Hx, Ctrlk, 1/4-20 Thd. HUS-1502
...
50
Shaft, Steering HUS-302307
...
51
Pin, Dowel HUS-302524
...
52
Pinion, Steering HUS-302314
...
53
Bearing, Flange HUS-302498
...
54
Decal, Gunsight clear, Steering Wheel HUS-311728
...
55
Washer, Flat, 1/2 In. HUS-2968
...
56
E-Ring HUS-20864
...
57
Ball, Joint, 3/8 Thd. HUS-57158
...
58
Grille HUS-306856
...
59
Plug, Front Axle HUS-307112
...
60
Edging, Wide, 18 (dash) HUS-47453
...
61
Clip, Hood Trim HUS-306857
...
62
Screw, #10 x 1/2 In. HUS-300302
...
63
Belt Guide HUS-300440
...
64
Screw, #4-24 x 1 /2 HUS-312085
...
65
Washer, Flat HUS-120396
...
66
Ratchet Fastener HUS-311087
...
67
Decal, Operating Instructions, HUS-307772
...
68
Decal, Wheel 4 Steer, LH & RH HUS-311730
...
69
Decal, Dash HUS-307409
...
70
Screw, Hex Wd Fl, 5/16-18 x 3/4 In. HUS-53652
...
71
Washer, Internal Tooth HUS-138538
...
72
Hood, Foam Baffle HUS-308115
...
73
Decal, Pin Stripe, RH HUS-316634
...
74
Decal, Pin Stripe, LH HUS-316635
...
75
Decal, Gunsight Clear Back HUS-311729
...
76
Decal, Hood HUS-311724
...
77
Decal, Dash L. H. HUS-316988
...
78
Decal, Dash R. H. HUS-315999

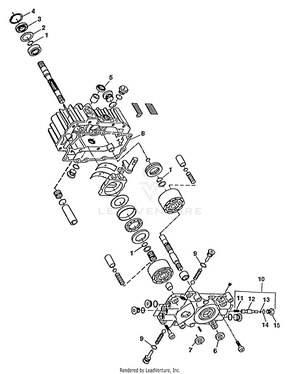

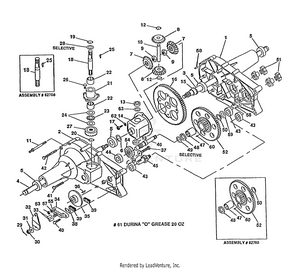

Hydro-Static Pump

...
...
xx
Hydro-Static Pump (Complete) Not Shown HUS-310227
...
xx
Overhaul Seal Kit (Contains Key No's. 1 thru 9 , 13 and 14); Not Shown HUS-313306
...
10
By-Pass Valve Kit-Complete (Contains Key No's. 11-15) HUS-313305

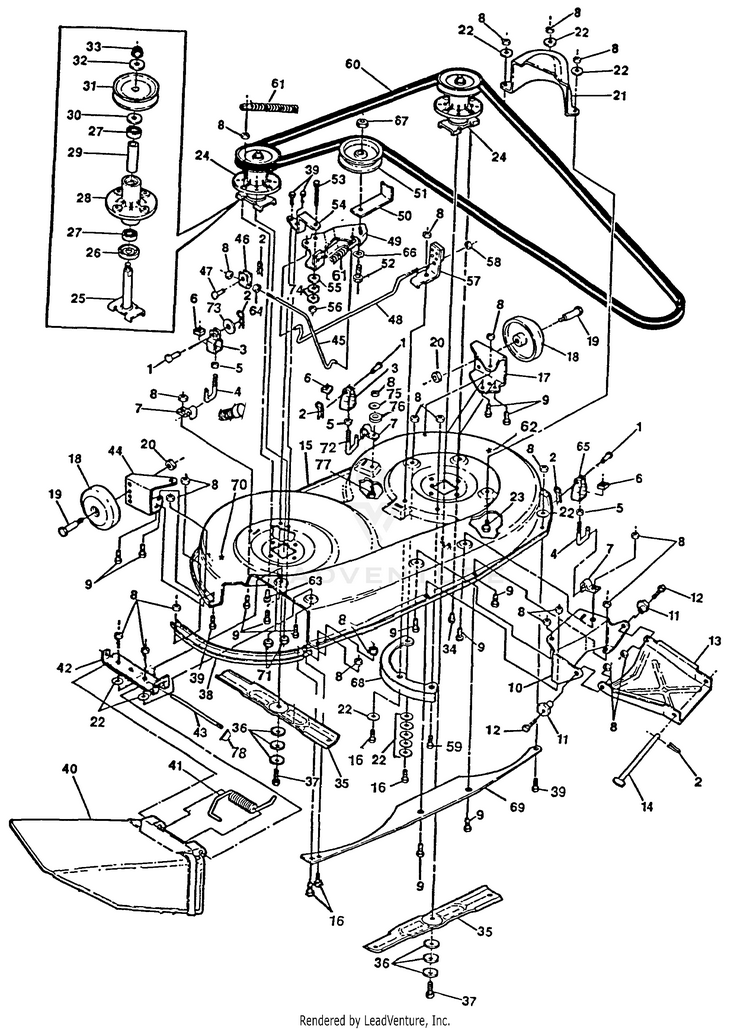

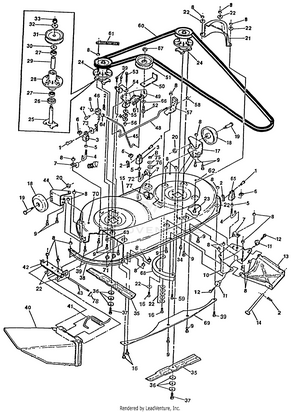

Mower Deck

...
...
1
Pin, Clevis HUS-300317
...
2
Hairpin, Cotter HUS-56180
...
3
Clevis HUS-305283
...
4
Lift Rod HUS-309615
...
5
Nut, Hx Jam 1/2-13 Thd. HUS-120238
...
6
Nut, Sq. 1/2-13 Thd. HUS-109527
...
7
Clip HUS-302197
...
8
Nut, Hx, Lock 5/16-18 Thd HUS-1498
...
9
Screw, Hx Hd, 5/16-18 x 1 In. HUS-180075
...
10
Bracket, Front HUS-312342
...
11
Nut, Adjusting HUS-58247
...
12
Screw, Hx Hd. 5/16-18 x 1 In. HUS-122017
...
13
Channel, Draw Bar HUS-311942
...
14
Rod, Drawbar HUS-302963
...
15
Mower Deck HUS-315788
...
16
Screw, Hx, 5/16-18 x 3/4 In HUS-122007
...
17
Wheel Bracket, L H HUS-317041
...
18
Wheel HUS-302611
...
19
Shoulder Bolt, 3/8-16 Thd. HUS-23763
...
20
Nut, Hex, Ctrlk, 3/8-16 Thd. HUS-1499
...
21
Belt Cover, Left Pulley HUS-302833
...
22
Flatwasher, 11/32 In. HUS-120393
...
23
Screw, Hx Hd, 5/16-18 x 5/8 In. HUS-120228
...
24
Quill Assembly (Incl. Nos. 25-33) HUS-317705
...
25
Saddle & Shaft Assembly HUS-56425
...
26
Dust Shield HUS-50616
...
27
Bearing HUS-1255
...
28
Quill Housing HUS-50702
...
29
Spacer Tube HUS-50818
...
30
Spacer HUS-51449
...
31
Pulley HUS-313898
...
32
Washer HUS-56365
...
33
Nut, Wd Fl, Lk 7/16-20 Thd. HUS-1282
...
34
Screw, Wshr Hd, 5/16-18 x 7/8" HUS-50634
...
35
Blade HUS-309070
...
36
Washer, Spring HUS-2483
...
37
Screw, Hx Hd, 3/8-24 x 1 In HUS-39573
...
38
Toe Guard HUS-317039
...
39
Screw, Hx Hd, 5/16-18 x 3/4 In HUS-180077
...
40
Chute Deflector HUS-304422
...
41
Spring HUS-305124
...
42
Bracket, Chute Mount HUS-317017
...
43
Rod, Chute HUS-304424
...
44
Wheel Bracket, R. H. HUS-317018
...
45
Clutch Rod HUS-303072
...
46
Clevis, Clutch HUS-305284
...
47
Pin, Clevis HUS-49332
...
48
Rod, Brake HUS-302714
...
49
Idler Assembly Includes the following parts HUS-304414
...
49
Idler Arm HUS-305298
...
49
Brake Pad HUS-306973
...
49
Rivet HUS-41601
...
50
Belt Retainer HUS-300844
...
51
Idler Pulley HUS-310326
...
52
Carriage Bolt, 3/8-16 x 2 In HUS-57325
...
53
Shoulder Bolt, 3/8-16 x 3/4 In HUS-304420
...
54
Idler Brace HUS-312273
...
55
Washer, Flat HUS-996307
...
56
Nut, Hx, Wd Fl, 3/8-16 Thd HUS-45171
...
57
Brake Spring Assembly HUS-304118
...
58
Nut, Hx, Ctrlk, 1/4-20 Thd. HUS-1502
...
59
Screw, Hx, 5/16-18 x 1-1/4 In HUS-122027
...
60
Belt, 82 In Long HUS-48044
...
61
Spring HUS-35410
...
62
Decal, No Step HUS-68249
...
63
Screw, Tap, 5/16-18 x 1-3/8 In HUS-300345
...
64
Nut, Hx, 5/16-18 Thd. HUS-120376
...
65
Clevis HUS-304443
...
66
Washer, Split, Lock 3/8 In HUS-120382
...
67
Nut, Hx, 3/8-16 Thd HUS-120377
...
68
Baffle, Deck HUS-306477
...
69
Baffle, Deck Front HUS-306478
...
70
Decal, Danger HUS-68547
...
71
Nut, 5/16-18 Thd HUS-44108
...
72
Lift Rod HUS-312302
...
73
Washer, Flat HUS-274517
...
74
Washer, Flat HUS-996416
...
75
Washer, Flat HUS-35214
...
76
Spacer HUS-50520
...
77
Screw, 5/16-18 x 1 In. HUS-180079
...
78
Push Nut HUS-3535

Rear End/Rear Steering

...
...
1
Handle, Deck Engage Lever HUS-304729
...
2
Nut, 1/4-13 HUS-120238
...
3
Bracket, Clutch/Brake Arm HUS-313271
...
4
Screw, 5/16-18 x 1/2 In. HUS-35497
...
5
Screw, 1/4-20 x .62 In. HUS-180018
...
6
Flatwasher HUS-120392
...
7
Nut, 1/4-20 HUS-51335
...
8
Bracket, Shift HUS-310356
...
9
Washer, Flat HUS-71073
...
10
Pin, Cotter HUS-121222
...
11
Shift Rod Assembly HUS-310806
...
12
Screw, 3/8-16 x 1-1/4 In. HUS-122145
...
13
Washer HUS-120638
...
14
Nut, 3/8-16 Thd. HUS-1499
...
15
Screw, 5/16-18 x 2 In. HUS-122065
...
16
Washer, Flat HUS-845
...
17
Washer, Friction HUS-49922
...
18
Spring HUS-29170
...
19
Washer, Flat HUS-120393
...
20
Nut, 5/16-18 Thd. HUS-1498
...
21
Shift Link HUS-310204
...
22
Spring, Torsion HUS-310336
...
23
Trim HUS-47453
...
24
Screw, Hx Hd, 1/2-20 x 1/2 In. HUS-123418
...
25
Hubcap, 8 In. HUS-306570
...
26
Mounting Block HUS-310813
...
27
Clip, Hubcap HUS-306669
...
28
Wheel HUS-58276
...
28
Valve System HUS-24167
...
29
Hub Assembly HUS-315264
...
30
U-Joint Assembly HUS-12290
...
31
Mounting Block HUS-310187
...
32
Screw, 5/16-18 x 4-1/2 In. HUS-189299
...
33
Hydrostatic Pump HUS-310227
...
34
Shoulder Bolt, 5/16-18 Thd. HUS-310088
...
35
Washer HUS-2483
...
36
Rod- Relief Valve HUS-310261
...
37
Pin, Grooved, 1/4 x 1 1/2 In. HUS-36311
...
38
Bracket, Steering Pivot, Outer HUS-315267
...
39
Bearing HUS-12325
...
40
Bearing HUS-315268
...
41
Pin, Spring 1/4 x 1 1/2 In. HUS-456722
...
42
Washer, Flat HUS-21682
...
43
Bushing, Shouldered HUS-12288
...
44
Bushing, Shouldered HUS-12321
...
45
Pin, Steering Hinge HUS-12289
...
46
Bracket, Steering Pivot, Inner HUS-12485
...
47
Screw, Hx Hd , 5/16-18 x 1 In. HUS-122017
...
48
Bracket, Transaxle Mounting HUS-313644
...
49
Main Frame HUS-315823
...
50
Screw, #10-32 x 1/4 In. HUS-140880
...
51
Armspeed Control HUS-310180
...
52
Pin, Spring HUS-456652
...
53
Reservoir, Hydro HUS-310786
...
54
Screw, 1/4-20 x 1/2 In. HUS-180016
...
55
Washer, Split Lock HUS-120380
...
56
Fan HUS-308523
...
57
Washer, Flat HUS-57626
...
58
Nut, Pulley 1/2-20 and 1/4-20 HUS-310094
...
59
Pulley, Assy. Hydro HUS-310098
...
60
Shift Rod HUS-310264
...
61
Stabilizer Bracket HUS-310179
...
64
Set Screw HUS-102570
...
65
Screw, 5/16-18 x 2.75 In. HUS-180112
...
66
Spacer HUS-304123
...
67
Arm, Rear Wheel Steer, L. H. HUS-306218
...
68
Screw, Self-Tap 3/8-16 x 3/4 In. HUS-39728
...
69
Tie Rod, L.H. HUS-313642
...
70
Tie Rod End, L. H. HUS-308384
...
71
Nut, Hex, Ctrlk, 3/8-24 HUS-412349
...
72
Nut, Hex Jam, 3/8-24 HUS-124925
...
73
Rod End HUS-304260
...
74
Tie Rod End, R. H. HUS-313643
...
75
Arm, Rear Wheel Steer, R. H. HUS-306217
...
76
Screw, 3/8-24 x 1 3/4 In. HUS-181646
...
77
Spacer HUS-313641
...
78
Washer, Lat 49/64 In. HUS-25177
...
79
Steering Pivot HUS-308719
...
80
Screw, 3/8-24 x 1 1/4 In. HUS-181639
...
81
Shaft, Steering Pivot HUS-313649
...
82
Screw 5/16-24 x 1 In. HUS-421051
...
83
Bolt, Shoulder 3/8-24 HUS-12319
...
84
Rod Assembly, Rear Wheel Steer HUS-313639
...
85
Washer, Flat 3/8 In. HUS-446363
...
86
Screw, Self-Tap 5/16-18 x 3/8 In. HUS-35498
...
87
Screw, Self-Tap 5/16-18 x 5/8 In. HUS-451814
...
88
Assembly Sector Gear HUS-302877
...
89
Bushing, Sector Gear HUS-302878
...
90
Screw, 1/2-20 x 2 3/8 In. HUS-304296
...
91
Nut, Hx, Ctrlk 1/2-20 HUS-274654
...
92
Plate, 4-Wheel Steer Pivot HUS-308341
...
93
Nut, Jam 3/8-24 HUS-308399
...
94
Cam Yoke Roller HUS-304116
...
95
Arm, Roller Swing HUS-302594
...
96
Shoulder Bolt, Cam Roller HUS-304122
...
97
Shoulder Bolt, Cam Follower Arm Pivot HUS-302588
...
98
Washer, Split Lock HUS-120382
...
99
Washer Flat HUS-45602
...
100
Bracket, Rear Pivot HUS-314511
...
101
Screw 1/4-20 x .75 In HUS-180020
...
102
Nut 1/4-20 HUS-120375
...
103
Bearing Spindle HUS-302303

Transaxle

...
...
1
HOUSING HALF LH HUS-44077
...
2
HOUSING HALF RH HUS-44076
...
3
AXLE LH 3/4" HUS-44273
...
4
AXLE RH 3/4" HUS-44272
...
5
BEARING, BALL HUS-44121
...
6
WASHER, FLAT 3/4ID X 1-1/8 00 X .030 THK HUS-44008
...
7
GEAR, MITER HUS-44096
...
8
GEAR, MITER HUS-44097
...
9
NUT, HEX JAM W/PATCH 1/2-20 HUS-44133
...
10
SHAFT. CROSS HUS-44089
...
11
SCREW/STUD HUS-44271
...
12
SNAP RING HUS-44146
...
13
BEARING, THRUST HUS-44128
...
14
HOUSING ASSY, DIFFERENTIAL HUS-62590
...
15
BEARING, FLANGE HUS-44129
...
16
GEAR, DIFFERENTIAL 72 TOOTH HUS-44095
...
17
BOLT, TORX HEAD 1/4-28 X 5/8" LG. HUS-44126
...
18
SHAFT, INPUT HUS-44104
...
19
SNAP, RING HUS-44145
...
20
RETAINING RING 7/16" DIA. EXT. HUS-44144
...
21
HOUSING, INPUT BEARING HUS-44081
...
22
BEARING, NEEDLE HUS-44099
...
23
BEARING, THRUST HUS-44139
...
24
WASHER, FLAT 5/8 ID X 1-1/8 OD X .030 THK HUS-44109
...
25
KEY. HI-PRO 3/32 X 5/8 DIA. HUS-44136
...
26
SCREW; HEX W/PATCH 1/4-20 X 3/4 LONG HUS-44122
...
27
GEAR, INPUT PINION 17 TOOTH HUS-44078
...
28
WASHER, FLAT .62 10 X 1.0 00 X .050 THK HUS-44371
...
28
WASHER, FLAT .62 10 X 1.125 OD X .060 THK HUS-44110
...
28
WASHER, FLAT .62 10 X 1.0 OD X .040 THK HUS-44151
...
29
PIN, COTTER HUS-44101
...
30
NUT, CASTLE 5/16-24 HUS-44142
...
31
WASHER, FLAT .343 ID X .88 OD X .062 THK HUS-44130
...
32
ARM, BRAKE ACTUATOR HUS-44094
...
33
PIN. BRAKE ACTUATING HUS-44127
...
34
BRAKE, YOKE HUS-44092
...
35
DISC, BRAKE HUS-44090
...
36
KEY. HI-PRO 3/16 X 5/8" DIA. HUS-44143
...
37
SCREW HEX 1/4-20 X 1.50 LONG HUS-44277
...
38
PLATE. PUCK HUS-44134
...
39
PUCK, BRAKE HUS-44132
...
40
SCREW, HEX W/PATCH 1/4-20 X 1.00 LG HUS-44433
...
41
SCREW, HEX SELF-TAP 1/4-20 X 2.00 LG. HUS-44123
...
42
SCREW, HEX SELF-TAP 1/4-20 X 3.00 LG. HUS-44124
...
43
BEARING, BALL HUS-44147
...
44
BEARING. BALL HUS-44232
...
45
SHAFT, PINION W/11 TOOTH GEAR HUS-44083
...
46
SHAFT, DRIVE HUS-44080
...
47
BEARING, NEEDLE HUS-44342
...
48
BRONZE THRUST BRG 5/8 ID X 1-1/4 00 X 7/64 THK HUS-44343
...
49
WASHER, FLAT .62 ID X 1.0 00 X .040 THK HUS-44151
...
49
WASHER, FLAT .62 ID X 1.0 00 X .050 THK HUS-44371
...
50
SEAL, GREASE HUS-44394
...
51
COUPLING HUS-44084
...
52
GEAR, 60 AND 17 TOOTH HUS-44523
...
53
NUT, HEX 114-20 HUS-43178
...
54
GEAR, DRIVE PINION 17 T. HUS-44079
...
55
BOLT, SQUARE HEAD HUS-44138
...
56
WASHER, 15/16 00 X .265 ID X .125 THK HUS-44278
...
57
WASHER, 1/4" SPRING LOCK HUS-43177
...
58
PIN, ROLL 3/16" DIA X 1/2" LG. HUS-44269
...
59
WASHER, FLAT .62 ID X 1.0 OD X .030 THK HUS-44125
...
60
PIN. DOWEL 3/32 X 1/4 HUS-44346
...
61
SHELL DURINA-O GREASE (20 OZ.) HUS-44098
...
62
WASHER, HD SPRC LOCK 1/4" (YELLOW DI-CHROM) HUS-44504
...
63
WASHER, FLAT .50 ID X 1.0 OD X .020 THK HUS-44137
...
63
WASHER, FLAT .50 ID X 1.0 OD X .030 THK HUS-44421
...
xx
SERVICE MANUAL HUS-44499
...
...
...
...
Processing
