Husqvarna 4125 G (1992-01) Ride Mower

Model: 4125 G (1992-01)

Save
 Part Not Listed?Part Not Listed?
product name

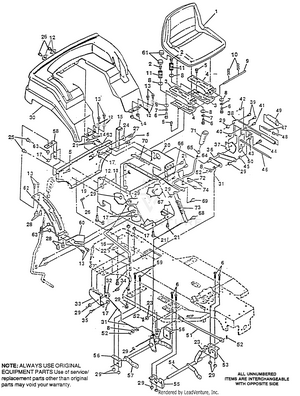

Chassis/Seat

...
...
1
SEAT M-550 G/B 3X6.7 W/ S HUS-601000395
...
2
SCREW, 5/16-18X .63HWATAP HUS-601000543
...
3
PF CHANNEL-SEAT LH GREY HUS-601000707
...
4
Channel, Seat R.H. HUS-601000763
...
5
SCREW, 5/16-18X.75WDFLLK HUS-601000597
...
6
SCREW, 5/16-18X .75 HHC HUS-601000028
...
7
WASHER, HVSPTLK .328X.60X HUS-601000023
...
8
WASHER, FLAT .344X .69X. HUS-601000019
...
9
ROD SEAT SUPPORT HUS-601000764
...
10
PIN, HAIR .072 DIAX1.13LG HUS-601000523
...
11
SPRING, SEAT HUS-601000262
...
12
WASHER, FLAT .281X1.00X. HUS-601000003
...
13
SCREW, 1/4-20X .62 HHC HUS-601000067
...
14
RP NUT HUS-601002318
...
15
MF SUPPORT FENDER LEFT HUS-601000287
...
16
Support, LH footrest stiffener HUS-601000765
...
17
NUT HX WD FL LK 5/16-18 THD HUS-601000867
...
18
SEAT SUPPORT HUS-601000766
...
19
1UPPORT FENDER & SEAT HUS-601000767
...
20
MS BRACKET, SUPPORT ENGAG HUS-601000134
...
21
SCREW, 5/16-18X .50 WAHHT HUS-601000519
...
22
Support, LH footrest stiffener HUS-601000768
...
23
WASHER, FLAT .406X .73X. HUS-601000106
...
24
WASHER, FLAT .250X .56X. HUS-601000017
...
25
SCREW, 5/16-18X .88 WAHHT HUS-601000570
...
26
SCREW, 1/4-20X .63 HHWATA HUS-601000667
...
27
SCREW, 1/4-20X .75 HHC HUS-601000068
...
28
SCREW, #10 X .50 HHTAPPS HUS-601000113
...
29
NUT, 5/16-18 REGHEXCTRLK HUS-601000059
...
30
FENDER HUS-601000769
...
31
CABLE,DECK LIFT HUS-601000191
...
32
PULLEY, ALUMINUM HUS-601000560
...
33
WF ASSY,PULLEY BRKT. HUS-601000193
...
34
BOLT, .375X .700 HHSH 5/1 HUS-601000263
...
35
BOLT, 5/16-18X .63 CARR HUS-601000052
...
36
WF ASSY, UPPER SHAFT HUS-601000133
...
37
MF QUADRANT HUS-601000160
...
38
PF LEVER LIFT-LONG HUS-601000747
...
39
BOLT, .500X .270 HHSH 5/1 HUS-601000110
...
40
NUT, 5/16-18 HWDFLCTRLK HUS-601000540
...
41
PIN,CLEVIS .310DIA+.475LG HUS-601000115
...
42
RING, RET E .31X.24 HUS-601000116
...
43
Link HUS-601000156
...
44
BOLT, .375X .500 HHSH 5/1 HUS-601000521
...
45
WASHER, FLAT .333X .87X. HUS-601000547
...
46
MF ROD, ACTUATOR HUS-601000643
...
47
SPRING, HEIGHT ADJUST HUS-601000642
...
48
KNOB, HGT ADJ PUSH BUTTON HUS-601000641
...
49
HANDLE HUS-601002372
...
50
PAWL, HEIGHT ADJUST HUS-601000126
...
51
RODS,TIE HUS-601000159
...
52
PIN, COTTER .090/.086X.75 HUS-601000025
...
53
PF BRACKET-FR HANGER LH BLACK HUS-601000716
...
54
PF SHAFT ASSY-FR LIFT BLACK HUS-601000721
...
55
PF BRACKET-FR HANGER LH BLACK HUS-601000717
...
56
PF BRACKET-REAR HANGER HUS-601000720
...
57
PF SHAFT ASSY-REAR LIFT HUS-601000719
...
58
MF SUPPORT FENDER RIGHT HUS-601000258
...
59
SCREW, 5/16-18X .75 HHC HUS-601000073
...
60
PLATE HUS-601000259
...
61
COVER,SEAT SPRING 1.5IDX1 HUS-601000620
...
62
PF QUAD SHIFT HYDRO HUS-601000737
...
63
NUT, 1/4-20 WDFLLK HUS-601000575
...
64
Assembly Brkt & Engagement Hand HUS-601000770
...
65
NUT, 1/2-13 HEXJAM HUS-601000008
...
66
SCREW, 3/8-16X2.25 HHC HUS-601000035
...
67
NUT, 3/8-16 HEXKEPS HUS-601000104
...
68
BOLT, .437X .156 HHSH 5/1 HUS-601000088
...
69
BOLT, .437X .43 HHSH HUS-601000275
...
70
SPRING, TENSION HUS-601000251
...
71
HANDLE, 1/2-13 MOLDED GRE HUS-601000237
...
72
CLIP HUS-601000132
...
73
SF ASSY SPRING CARTRIDGE HUS-601000228
...
74
SCREW, 1/4-20X .50 HHC HUS-601000066
...
75
Part's Manual (Not Illustrated); French and English HUS-601000771
...
76
Operator's Manual (Not Illustrated); French HUS-601000772
...
77
Operator's Manual (Not Illustrated); English HUS-601000773

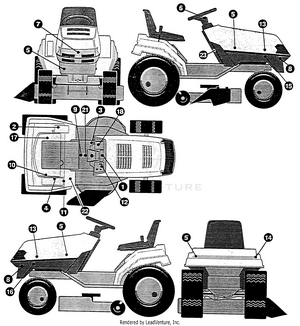

Decals

...
...
1
DECAL DASH CHG BLK FUEL HUS-601000849
...
2
DECAL GEAR SHIFT 6 SPEED HUS-601000314
...
3
DECAL,GEAR SHFT. NEUTRAL HUS-601000674
...
4
DECAL BLADE CLUT/DECK HGTH ERO HUS-601000793
...
5
DECAL INSTR FRENCH(CAN) ERO LT HUS-601000794
...
6
DECAL SHIFT INDICATOR EXPORT HUS-601000795
...
7
DECAL, FENDER REAR, HOOD HUS-601000410
...
8
DECAL HUS-601000411
...
9
DECAL, GUNSIGHT CLEAR BAC HUS-601000412
...
10
DECAL, WHEEL 4 STEER HUSQ HUS-601000413
...
11
DECAL INSTRUC CONSOLE TOP HUS-601000796
...
12
DECAL HUS-601000438
...
13
DECAL, DEPRESS CL/BRAKE H HUS-601000447
...
14
DECAL DASH RH HUS-601000751
...
15
DECAL HUS-601000489
...
16
DECAL MODEL #4125G HUS-601000798
...
17
DECAL HUS-601000492
...
18
DECAL HUS-601000493
...
19
DECAL DASH LEFT ENGLISH/ISO HUS-601000799
...
22
DECAL, OPER. INSTR. ERO TOP FRAME HUS-601000801
...
23
DECAL DNGER FR/ENG HUS-601000802
...
24
DECAL PARK BRAKE EXP HUS-601000803

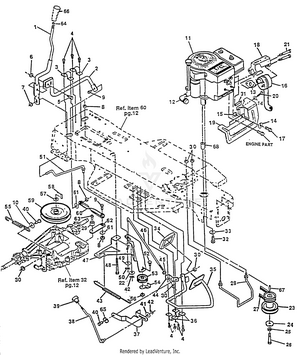

Drive/Engine

...
...
1
PF TUBE ASSY-SHIFT PIVOT HUS-601000698
...
2
WF TUBE ASSY-SHIFT HUS-601000696
...
3
MF CLIP,SHIFT LEVER HUS-601000165
...
4
SCREW, 5/16-18X .50 WAHHT HUS-601000519
...
5
BOLT.375X.400 1/4-20X.47H HUS-601000199
...
6
RP NUT HUS-601002318
...
7
NUT, 3/8-16 HEXNYL HUS-601000653
...
8
NUT 3/8-16 HUS-601002407
...
9
SCREW, 3/8-16X1.25 HHC HUS-601000033
...
10
WASHER, FLAT .515X1.31X. HUS-601000322
...
12
ELBOW,90 DEG STREET 3/8 T HUS-601000005
...
13
GASKET, MUFFLER HUS-601000553
...
14
WASHER, REGSPTLK.263X.49X HUS-601000014
...
15
NUT, 5/16-18 REGHEX HUS-601000012
...
16
MUFFLER, ROUND 12HP 5"DIA HUS-601000389
...
17
SCREW, 1/4-20X .88WAHHTAP HUS-601000117
...
18
SHIELD,MUFFLER B&S SQ. LO HUS-601000261
...
19
PF SHIELD, 12 HP 5" HEAT HUS-601000726
...
20
SCREW, 1/4-20X3.50 HHC HUS-601000084
...
21
BOLT, .437X4.34O HHSH5/16 HUS-601000260
...
22
WASHER, FLAT .281X .63X. HUS-601000018
...
23
KIT, ENGINE PULLEY HUS-601000448
...
24
WASHER,.980IDX1.38ODX.437 HUS-601000613
...
25
WASHER, REGSPTLK.459X.78X HUS-601000016
...
26
SCREW, 7/16-20X5.00 HHC HUS-601000538
...
27
BELT, V 4L 90.00 LG HUS-601000194
...
28
GUIDE, BELT 820 TRANSAXLE HUS-601000376
...
29
WASHER,.750X.250 SP-TRANS HUS-601000622
...
30
NUT, 5/16-18 REGHEXCTRLK HUS-601000059
...
31
SPACER HEAT SHIELD HUS-601000390
...
32
SCREW, 3/8-16X1.25 WAHHTA HUS-601000573
...
33
WASHER, EXLK .384X.69X HUS-601000056
...
34
PP BAFFLE 46" DECK HUS-601000433
...
35
ASSEMBLY CLUTCH/BRAKE ARM HUS-601000774
...
36
MF BRACKET CL/BR ARM HUS-601000442
...
37
MF LEVER, PARK BRAKE HUS-601000211
...
38
ROD, PARKING BRAKE HUS-601000214
...
39
KNOB, PARK BRAKE B HUS-601000219
...
40
BOLT, .500X .375 HHSH 5/1 HUS-601000099
...
41
WASHER, FLAT .250X .56X. HUS-601000017
...
42
PIN, COTTER .0625X.75LG HUS-601000026
...
43
SPRING, CLUTCH HUS-601000212
...
44
MF BRACKET, BRAKE ROD HUS-601000207
...
45
NUT, 5/16-18 HEXKEPS HUS-601000103
...
46
ROD, CLUTCH HUS-601000213
...
47
MF ARM IDLER HUS-601000197
...
48
BOLT, .500X1.280 HHSH 3/8 HUS-601000574
...
49
WASHER, FLAT .406X .73X. HUS-601000106
...
50
PIN, HAIR .072 DIAX1.13LG HUS-601000523
...
51
ROD, SHIFT-ON-THE-GO HUS-601000198
...
52
BOLT, 3/8-16X2.00 CARR HUS-601000627
...
53
BACKSIDE IDLER SHEAVE HUS-601000530
...
54
MF BELT RETAINER HUS-601000201
...
55
SPRING,BRAKE 1.00ODX3.12X HUS-601000209
...
56
NUT, 3/8-16 HWDFL WHIZ-LO HUS-601000542
...
57
RING, RETEX .58X.04TRU510 HUS-601000093
...
58
KEY, WDRF 606 .750X.187X. HUS-601000129
...
59
PULLEY, V4L 920TA HUS-601000189
...
60
LINK, TIE ROD SHIFT ASSY HUS-601000359
...
61
WASHER, FLAT .406X .81X. HUS-601000020
...
62
HF LEVER,TRANSAXLE SHIFT HUS-601000166
...
63
SCREW, 1/4-28X .75 NYLHHC HUS-601000606
...
64
NUT, 3/8-16 REGHX HUS-601000013
...
65
WASHER, WAVE .50 ID HUS-601000178
...
66
HANDLE, 3/8-16 MOLDED GRE HUS-601000236
...
67
KEY, SQUARE .250SQX5.00LG HUS-601000635
...
68
SPACER,1.01X1.484 ENGIN P HUS-601000215

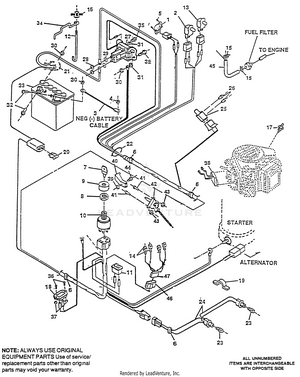

Electrical

...
...
1
SWITCH,SEAT HUS-601000629
...
2
SWITCH, SNAP MNT NC .140 HUS-601000321
...
3
WIRE, GROUND, 12.5" HUS-601000596
...
4
BF PULLEY ASSY, JACK SH B NLA HUS-601000130
...
5
SCREW, 1/4-20X .38PHPNHMA HUS-601000065
...
6
TIE,CABLE BLACK NYLON HUS-601000628
...
7
KEY, IGNITION SWITCH HUS-601000123
...
8
NUT, 5/8-32 IGN SWIT PLA HUS-601000111
...
9
BOOT,SWITCH HUS-601000112
...
10
SWITCH-IGN. 3 POSN HUS-601000270
...
11
LIGHT SWITCH ON/OFF PANEL HUS-601000120
...
12
ROD, BATTERY HUS-601000630
...
13
SWITCH,SNAP MNT NO .140 W HUS-601000051
...
14
BULB, INDICATOR HUS-601000633
...
15
CLAMP, HOSE HUS-601000554
...
16
SMALL PLASTIC WING NUT 1/ HUS-601000371
...
17
OIL SENSOR, B&S TWIN CYL. HUS-601000462
...
18
MINIATURE HOUR METER 4-40 HUS-601000240
...
19
CLIP,1.380LG .255ID PRESS HUS-601000534
...
20
SPRING, TENSION HUS-601000127
...
21
BOOT HUS-601000323
...
22
Wire Harness HUS-601000788
...
23
BULB, HEADLAMP HUS-601000589
...
24
ASSY,LIGHT WIRE-1/4 TURN HUS-601000186
...
25
SAFETY SWITCH HUS-601000691
...
26
SCREW, #12 X .50 PHPNHTA HUS-601000626
...
27
SOLENOID, NEW CLUM HUS-601000592
...
28
NUT, 5/16-24 REGHEX HUS-601000009
...
29
WASHER, EXLK .320X.61X HUS-601000055
...
30
NUT, 1/4-20 REGHEXKEPS HUS-601000102
...
31
RP NUT HUS-601002318
...
32
SCREW, 1/4-20X .63 HHC HUS-601000024
...
33
BATTERY 12V 7 PLATE/ NLA HUS-601000136
...
34
ROD, BATTERY TOP .209DIA HUS-601000182
...
35
SCREW, 1/4-20X .75 HXSEMM HUS-601000083
...
36
SCREW #6-32X.50 HUS-601000789
...
37
NUT, #6-32 HEXKEPS HUS-601000105
...
38
SENSOR, EURO LOW VOLTAGE HUS-601000306
...
39
NUT, #8-32 REGHX HUS-601000022
...
40
KNOB,THROTTLE CONT MOLDGR HUS-601000226
...
41
SCREW #10-24X5/8 HUS-601000790
...
42
THROTTLE CONTROL HUS-601000481
...
43
NUT, #10-24 HXHDNYLK HUS-601000337
...
44
SCREW, #8-32X .38 PHPNMA HUS-601000063
...
45
GAS LINE .25ID BULK LEN HUS-601000555
...
46
LOW FUEL WIRE HUS-601000791
...
47
LAMP HOLDER 4-PIN HUS-601000269

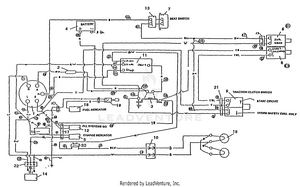

Electrical Schematic

...

No Parts Available for this Schematic

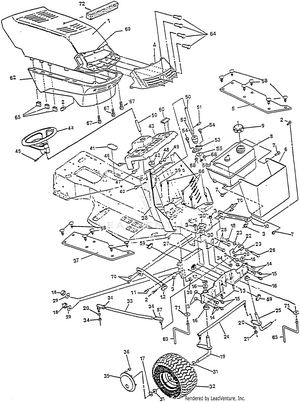

Front End/Hood

...
...
1
HOOD,EURO H-19 LT MOLD/OR NLA HUS-601000398
...
2
BOLT, .500X .375 HHSH 5/1 HUS-601000099
...
3
NUT, 5/16-18 REGHEXCTRLK HUS-601000059
...
4
HOOD KIT HUS-601001903
...
5
ASSY FOOT PAD LH ERO W/AD HUS-601000465
...
6
PF SHIELD-GAS TANK EURO BLACK HUS-601000712
...
7
SCREW, .25X.75X.75HHWAPLA HUS-601000114
...
8
ASSY GAS TANK 1.5 GAL W/S HUS-601000272
...
8
FUEL SENSOR HUS-601000271
...
9
CAP, FUEL -2.5 THROAT HUS-601000049
...
10
Bracket, Hood L.H. HUS-601000753
...
11
SCREW, 5/16-18X.75WDFLLK HUS-601000597
...
12
Bracket, Hood R.H. HUS-601000754
...
13
FRONT AXLE W/BEARINGS HUS-601000755
...
14
SCREW, 5/16-18X .75 HHC HUS-601000073
...
15
GREASE ZERK FITTING HUS-601000651
...
16
BEARING SPINDLE FR W/HOLE HUS-601000147
...
17
RING, RETEX .57X.05TRU513 HUS-601000525
...
18
NUT 3/8-16 HUS-601002407
...
19
Spindle, R.H. HUS-601000756
...
20
WASHER, REGSPTLK.393X.68X HUS-601000015
...
21
NUT, 3/8-24 REGHEX HUS-601000010
...
22
ARM HUS-601000506
...
23
WASHER, FLAT .391X1.0OX. HUS-601000670
...
24
TIE ROD .625DIA GRND ENGA HUS-601000119
...
25
Spindle, L.H. HUS-601000757
...
26
SCREW HUS-601000077
...
27
PF BRACKET FRONT AXLE SUPT HUS-601000708
...
28
SCREW, 3/8-16X3.00 HHC HUS-601000037
...
29
HUS-601002313
...
30
NUT HX WD FL LK 5/16-18 THD HUS-601000867
...
31
WASHER, FLAT .755X1.31X. HUS-601000645
...
32
WHEEL W/ BEARING HUS-601000758
...
32
VALVE STEM HUS-601000096
...
32
BEARING, FL1.38ODX.753ID HUS-601000458
...
33
LINK, ASSY .625DIA DRAG L HUS-601000181
...
34
NUT, 3/8-24 REGHEXJAM HUS-601000048
...
35
6" HUBCAP ERO WHITE HUS-601000290
...
36
CLIP,HUBCAP TINN #C25467- HUS-601000294
...
37
ASSY FOOT PAD RH ERO W/AD HUS-601000464
...
38
PF DASH SHORT LOWER LT GR HUS-601000700
...
39
SCREW, 5/16-18X .37 WAHHT HUS-601000544
...
40
SCREW HUS-601001445
...
41
COVER,SECTOR BOLT PLAS GR HUS-601000247
...
42
BUSHING STR SHFT UPPER HUS-601000192
...
43
DASH UPPER HUS-601000759
...
44
WHEEL,STEER 14"LONG 4WS L HUS-601000190
...
45
PIN, SPRING.250DIAX2.00LG HUS-601000548
...
46
SCREW HUS-601000274
...
47
SCREW, 1/4-20X .63 HHC HUS-601000024
...
48
WASHER, FLAT .281X .63X. HUS-601000018
...
49
RP NUT HUS-601002318
...
50
SHAFT, STEERING EURO LT S HUS-601000149
...
51
PIN DOWEL STR ERO LT HUS-601000164
...
52
PINION STEERING HUS-601000151
...
53
BEARING FLANGE 0.5 BORE HUS-601000163
...
54
Screw, 5/16-24x.75 Sq. HUS-601000760
...
55
WASHER, FLAT .504X .75X. HUS-601000109
...
56
RING, RET E .39X.04TRU513 HUS-601000089
...
57
BALL JOINT 3/8 THD SHORT HUS-601000623
...
58
FASTENER, RATCHET GRE HUS-601000406
...
59
PLUG,FRONT AXLE 1.938DIAX HUS-601000307
...
60
BUMPER HOOD/DASH HUS-601000761
...
61
EDGING WIDE BLACK-BULK LENGTH HUS-601000739
...
62
GRILL, G-16 LT MOLD/GREY HUS-601000302
...
63
GUIDE, BELT, RIDER HUS-601000122
...
64
SCREW, #4-24X .50 PHPNHIL HUS-601000417
...
65
CLIP, TINNERMAN VER II HO HUS-601000303
...
66
SCREW, 5/16-18X .50 WAHHT HUS-601000519
...
67
SCREW, #10 X .50 HHTAPPS HUS-601000113
...
68
NUT 5/16-24 HXWDFLLK HUS-601000823
...
69
DECAL REFLECTOR VERII HOO HUS-601000397
...
70
SCREW, 5/16-18X.75 HXWDFL HUS-601000591
...
71
WASHER, REGINTLK.320X.61X HUS-601000057
...
72
FOAM HOOD BAFFLE HUS-601000319

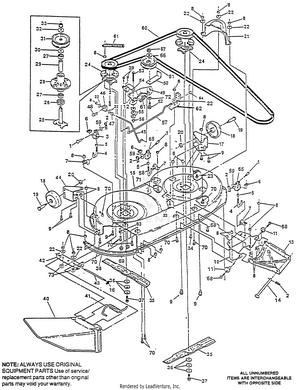

Mower Deck

...
...
1
PIN, CLEVIS .38 DIAX1.00 HUS-601000118
...
2
PIN, HAIR .091 DIAX1.62LG HUS-601000604
...
3
CLEVIS HUS-601000860
...
4
ROD, 40" REAR DECK LIFT HUS-601000362
...
5
NUT, 1/2-13 HEXJAM HUS-601000008
...
6
NUT, 1/2-13 .458 SQ HUS-601000004
...
7
CLIP HUS-601000132
...
8
NUT, 5/16-18 REGHEXCTRLK HUS-601000059
...
9
SCREW, 5/16-18X .75 HHC HUS-601000073
...
10
BRACKET HUS-601000423
...
11
ADJ NUT HUS-601000639
...
12
WASHER, FLAT .391X1.00X. HUS-601000669
...
13
CHANNEL DRAWBAR HUS-601000402
...
14
ROD.DRAWBAR NLA HUS-601000183
...
15
MOWER DECK HUS-601000781
...
16
NUT, PUSH ON CAP .312 OD HUS-601000516
...
17
PF BRKT GAGE WHEEL LH HUS-601000675
...
18
WHEEL, SD 6.00ODX1.38WD S HUS-601000170
...
19
BOLT, .500X1.390 HHSH 3/8 HUS-601000095
...
20
NUT 3/8-16 HUS-601002407
...
21
GUARD, BELT LH PLASTIC HUS-601000173
...
22
WASHER, FLAT .281X .63X. HUS-601000018
...
23
SCREW, 5/16-18X .75 HHC HUS-601000073
...
24
(Incl Nos. 25-33) HUS-601002479
...
25
SHAFT/SADDLE HUS-601000612
...
26
DUST SHIELD HUS-601000569
...
27
BALL BEARING HUS-601002315
...
28
QUILL HOUSING HUS-601000782
...
29
SPACER HUS-601000572
...
30
SPACER HUS-601000840
...
31
PULLEY, QUILL HUS-601002500
...
32
SPECIAL WASHER HUS-601000609
...
33
HUS-601002418
...
34
SCREW, 5/16-18X .88 WAHHT HUS-601000570
...
35
PF BLADE, 20.32 HIGH-LIFT HUS-601000345
...
36
HUS-601002313
...
37
SCREW, 3/8-24X1.00 NYLHHC HUS-601000527
...
38
TOE GUARD HUS-601000697
...
39
SCREW, 5/16-18X .75 HHC HUS-601000073
...
40
CHUTE DEFLECTOR 40",42"&4 HUS-601000223
...
41
SPRING TORSION CHUTE DEF. HUS-601000466
...
42
BRACKET HUS-601000504
...
43
ROD,PIVOT 40"DECK .312DX7 HUS-601000224
...
44
BRKT, GAGE WHEEL RH HUS-601000505
...
45
RODS, CLUTCH HUS-601000188
...
46
LF CLEVIS EURO Z-P HUS-601000249
...
47
NUT, 5/16-18 REGHEX HUS-601000012
...
48
PIN,CLEVIS HUS-601000563
...
49
IDLER ASSEMBLY HUS-601000785
...
50
RETAINER HUS-601000054
...
51
PULLEY, IDLER BFF 4.00 WI HUS-601000391
...
52
BOLT, 3/8-16X2.00 CARR HUS-601000627
...
53
BOLT, .500X2.15 HXHDCPSH HUS-601000222
...
54
BRACE HUS-601000419
...
55
WASHER, FLAT .391X1.0OX. HUS-601000670
...
56
NUT, 3/8-16 HWDFL WHIZ-LO HUS-601000542
...
57
ROD, BRAKE HUS-601000172
...
58
ROD, 40" REAR DECK LIFT Z HUS-601000422
...
59
WASHER, FLAT .406X .73X. HUS-601000106
...
60
BELT, V 5L 82.00 DECK DR HUS-601000558
...
61
SPRING .071 X .62 X 4.37 HUS-601000517
...
62
SF BLADE BRAKE ASSY. HUS-601000204
...
63
SCREW HUS-601000121
...
64
RP NUT HUS-601002318
...
65
LF CLEVIS HUS-601000227
...
66
WASHER, REGSPTLK.393X.68X HUS-601000015
...
67
NUT, 3/8-16 REGHX HUS-601000013
...
68
SCREW, 5/16-18X1.00 HHC HUS-601000074
...
69
NUT, 5/16-18 HWDFLCTRLK HUS-601000540
...
70
BOLT CARRIAGE 5/16-18X.63 GR5 HUS-601000786
...
71
HUS-601001976
...
72
WASHER, FLAT .375X .88X. HUS-601000541
...
73
FLATWASHER .469X.92X.065 HUS-601000787

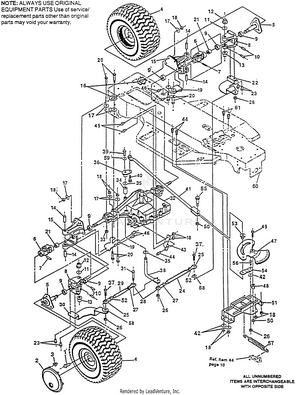

Rear End/Rear Steering

...
...
1
SCREW, 1/2-20X .50 HHC HUS-601000044
...
2
8" HUBCAP ERO WHITE 869 HUS-601000291
...
3
CLIP,HUBCAP TINN #C25467- HUS-601000294
...
4
TIRE 20X20X8 HUS-601000947
...
4
WHEEL HUS-601000046
...
4
VALVE STEM HUS-601000096
...
5
HUB ASSEMBLY HUS-601000734
...
6
U-Joint Assembly HUS-601000775
...
7
PIN, GROOVED .250 DIAX1.5 HUS-601000522
...
8
Bracket Assembly, Steering Pivot, Outer HUS-760100004
...
9
BEARING HUS-601000043
...
10
PIN, SPRING.250DIAX1.50LG HUS-601000550
...
11
WASHER, FLAT .765X1.25X.0 HUS-601000092
...
12
BUSHING, SHOULDERED (OILI HUS-601000038
...
13
BUSHING, SHOULDERED (OILI HUS-601000042
...
14
PIN, STEERING HINGE HUS-601000039
...
15
Bracket Assembly, Steering Pivot, Inner HUS-760100004
...
16
SCREW, 5/16-18X1.00 HHC HUS-601000029
...
17
WASHER, FLAT .344X .69X. HUS-601000019
...
18
NUT, 5/16-18 REGHEXCTRLK HUS-601000059
...
19
BRACKET TRANSAXLE MOUNTING HUS-601000776
...
20
SCREW 5/16-18X2.50 HHC GR5 HUS-601000777
...
21
SPACER, AXLE 4WS HUS-601000206
...
22
PF ARM RW STR ERO LH BLACK HUS-601000710
...
23
Screw, 3/8-16x1.00 Wahhtap blk HUS-601000778
...
24
ROD, TIE 1/2"D X 9.5LG HUS-601000335
...
25
ROD,TIE END LH 3/8-24 EUR HUS-601000333
...
26
NUT, 3/8-24 HXCTRLK HUS-601000532
...
27
NUT, 3/8-24 REGHEXJAM HUS-601000048
...
28
ROD, TIE END RH HUS-601000217
...
29
ROD, TIE 1/2"D X 8.00LG HUS-601000336
...
30
PF ARM RW STR ERO RH BLACK HUS-601000709
...
31
SCREW, 3/8-24X1.75 HHC HUS-601000082
...
33
NUT, 5/16-18 HWDFLCTRLK HUS-601000540
...
34
SPACER, STEERING SHAFT HUS-601000202
...
35
WASHER, FLAT .765X1.19X. HUS-601000100
...
36
SPACER HUS-601000339
...
37
SCREW, 3/8-24X1.25 HHC HUS-601000081
...
38
SHAFT, STEERING PIVOT HUS-601000341
...
39
SCREW, 5/16-24X1.00 HHC G HUS-601000536
...
40
BOLT, .562X .340 HHSH 3/8 NLA HUS-601000041
...
41
WF ROD R WHL STR 4 WS HUS-601000168
...
42
WASHER, FLAT .375X .88X. HUS-601000541
...
43
Bracket, Transaxle Stabilizer HUS-601000779
...
44
SCREW, 5/16-18X .75 WAHHT HUS-601000520
...
45
NUT 3/8-16 HUS-601002407
...
46
SCREW, 5/16-18X .88 WAHHT HUS-601000570
...
47
WF ASSY SECTOR GEAR 4WS HUS-601000175
...
48
BEARING,SLEEVE SECTOR GEA HUS-601000176
...
49
SCREW, 1/2-20X2.38 HHC HUS-601000218
...
50
NUT, 1/2-20 REGHXCTRLK HUS-601000107
...
51
PF PLATE-PIVOT STEERING HUS-601000718
...
52
NUT, 3/8-24 LH THD REGHJA HUS-601000334
...
53
CAM YOKE ROLLER HUS-601000203
...
54
MF ARM ROLLER SWING 4 W HUS-601000169
...
55
BOLT, SHOULDER CAM ROLLER HUS-601000205
...
56
SHOULD BOLT CAM FOLLOWER HUS-601000167
...
57
SPRING .071 X .62 X 4.37 HUS-601000517
...
58
WASHER, REGSPTLK.393X.68X HUS-601000015
...
59
WASHER, FLAT .333X .87X. HUS-601000547
...
60
MAIN FRAME NLA HUS-601000830
...
61
SCREW, 5/16-18X .50 WAHHT HUS-601000519
