Husqvarna 41 (1997-07) Chain Saw

Model: 41 (1997-07)

Save Part Not Listed?
product name

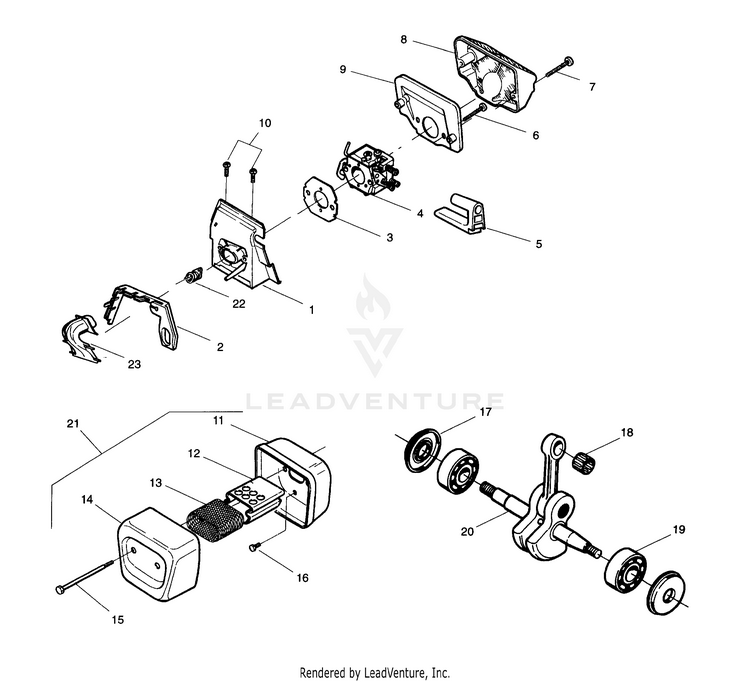

Air Filter/Carburetor, Muffler, Crankshaft

...
...
1
CARB ADAPTOR HUS-530037465
...
2
TURBO CLEAN SEAL HUS-530019203
...
3
GSKT,CARB 36/41 HUS-530019172
...
4
CARBURETOR HUS-545013503
...
5
GUIDE HUS-530029815
...
6
STUD-CARBURETOR HUS-530015968
...
7
SCREW HUS-530015899
...
8
AIR FILTER HUS-530029811
...
9
AIR FILTER (BOTTOM) HUS-530036582
...
10
SCREW HUS-530015814
...
11
SILENCER BODY HUS-530037251
...
12
FLAME PROTECTOR HUS-530037246
...
13
SPARK ARRESTOR 36/41 HUS-530029810
...
14
SILENCER COVER HUS-530037254
...
15
BOLT HUS-530016044
...
16
BOLT-MUFFLER(SUPPORT) HUS-530015902
...
17
SEAL,C/SHAFT 36/41 HUS-530019170
...
18
Piston Pin Bearing HUS-530032117
...
19
Crankshaft Bearing HUS-530032118
...
20
ASSY-CRANKSHAFT & ROD HUS-503920801
...
21
MUFFLER KIT (Includes 11, 12, 14 & 15) HUS-530069415
...
22
INTAKE PIPE HUS-530029814
...
23
INTAKE HORN HUS-530029813

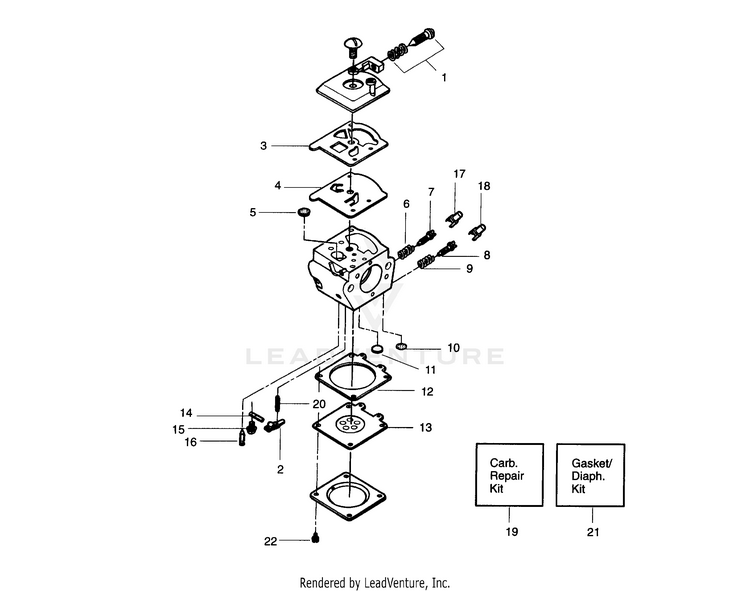

Carburetor Parts

...
...
1
Idle Adv. Screw Kit HUS-530435296
...
2
LEVER HUS-505520127
...
3
GASKET HUS-504130906
...
4
PUMP DIAPHRAGM HUS-504130807
...
5
FUEL INLET SCREEN HUS-501666101
...
6
NEEDLE SPRING HUS-530035293
...
7
LOW SPEED NEEDLE HUS-530035281
...
8
Needle High Speed HUS-530037259
...
9
NEEDLE SPRING HUS-530035295
...
10
Welch Plug (5/16) HUS-530035182
...
11
CUP PLUG HUS-530035225
...
12
METERING DIA GASKET HUS-530035165
...
13
DIAPHRAGM HUS-503896701
...
14
FULCRUM PIN HUS-505520125
...
15
SCREW HUS-530035016
...
16
VALVE/INLET. HUS-503117001
...
17
LIMITER CAP (HIGH-RED) HUS-530038318
...
18
LIMITER CAP (LOW-BLUE) HUS-530038317
...
19
Carburetor Repair Kit (Incl. 3-5 & 10-18) HUS-530435298
...
20
SPRING-METERING LEVER HUS-530035188
...
21
GASKET/DIAPHRAGM KIT (Incl. 3,4, 12 & 13) HUS-530069844
...
22
SCREW, MOTOR COVER HUS-530035021
...
xx
SERVICE TOOL, CARB Not shown HUS-540068201
...
xx
LIMITER CAP INSERTION TOOL Not shown HUS-530031161

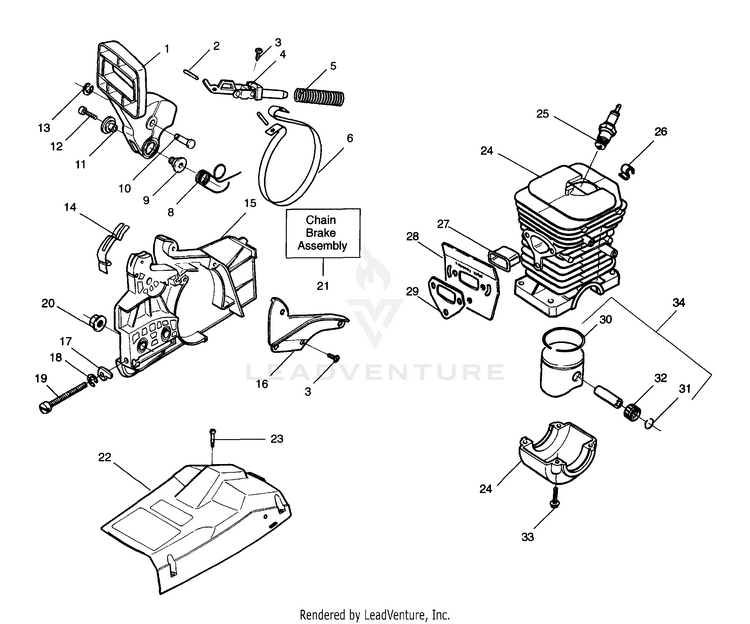

Chain Brake Assembly, Top Cover, Piston/Cylinder

...
...
1
HANDGUARD HUS-530071348
...
2
PIN 3X10 HUS-720123300
...
3
SCREW M3.63-1.34 X 8MM HUS-574780301
...
4
Front and Rear Link Assembly HUS-530014356
...
5
SPRING HUS-501875401
...
6
BRAKE BAND HUS-545137401
...
8
SPRING,BRK HDL 36/41 HUS-530015910
...
9
PIVOT SLEEVE L HUS-501768101
...
10
PIVOT PIN HUS-530029879
...
11
PIVOT SLEEVE R HUS-501768001
...
12
SCREW HUS-530015914
...
13
RETAINER HUS-530038593
...
14
SPRING-POSITION HUS-530029878
...
15
CHAINBRAKE HUS-530053173
...
16
CHAINBRAKE HUS-530053173
...
17
ADJUST PIN,BAR 36/41 HUS-530015826
...
18
RETAINER HUS-530038593
...
19
BAR ADJUSTING SCREW HUS-530016110
...
20
BAR NUT HUS-530015917
...
21
CHAINBRAKE (Includes 1 thru 20) HUS-530053173
...
22
CYLINDER SHIELD ASSY HUS-530047609
...
23
SCREW HUS-530016154
...
xx
CYLINDER ASSY/136 Used on models 36 HUS-530069940
...
xx
CYLINDER ASSY/141 Used on models 41 HUS-530069941
...
25
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
26
CLIP - HIGH TENSION LE HUS-530015696
...
27
HEAT INSULATOR HUS-530037652
...
28
MUFFLER PLATE HUS-530037640
...
29
GASKET HUS-530019205
...
30
PISTON RING 36 HUS-530029805
...
31
C-CLIP,PSTN PIN 36/41 HUS-530015697
...
32
Piston Pin Bearing HUS-530032117
...
33
SCREW-M5-0.8 X 25MM(TAP) HUS-530015897
...
xx
PISTON KIT/136 Used on models 36 HUS-530069944
...
xx
KIT-PISTON Used on models 41 HUS-530069454
...
xx
WRENCH Not Shown HUS-587417201
...
xx
OPERATORS MAN 36/41 3/15/96 Not Shown HUS-101869562
...
xx
PULLER WORM GEAR Not Shown HUS-530031136
...
xx
CLUTCH TOOL Not Shown HUS-530031112
...
xx
DECAL,WARNING (36 USA) Not Shown HUS-530029887
...
xx
HUS SCABBARD 13-16" Not Shown HUS-596703701

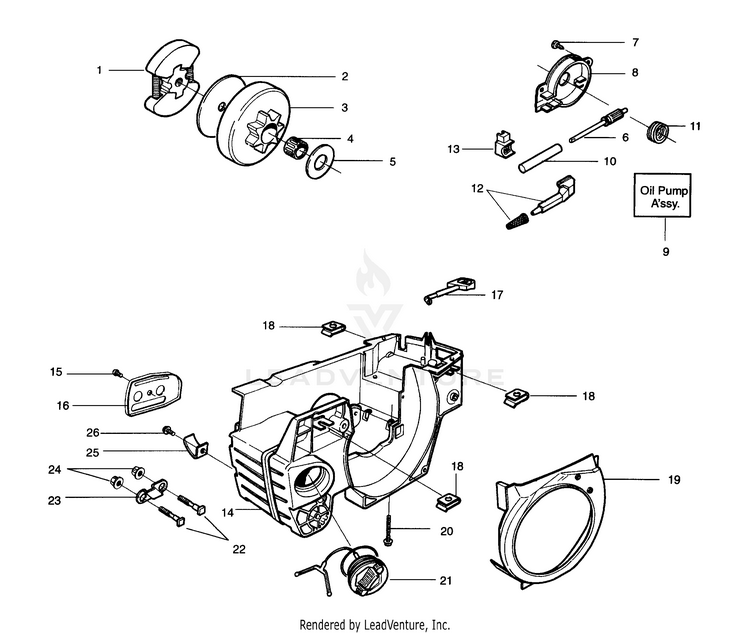

Oil Pump Assembly, Crankcase

...
...
1
CLUTCH ASSEMBLY HUS-530014949
...
2
FRICTION DISC,CLUTCH 36/41 HUS-530015611
...
3
CLUTCH DRUM ASSY HUS-530047061
...
xx
CLUTCH DRUM 325 X 7T HUS-530069316
...
4
NEEDLE BEARINGS 36/41 HUS-530032119
...
5
THRUST WASHER HUS-530015907
...
6
PLUNGER & GEAR ASSY HUS-545036801
...
7
SCREW HUS-530015896
...
8
PLUNGER & GEAR ASSY HUS-545036801
...
9
PLUNGER & GEAR ASSY (Includes 8, 10 & 27) HUS-545036801
...
10
PLUNGER & GEAR ASSY HUS-545036801
...
11
OILER GEAR 36/41 HUS-530029833
...
12
OIL HOSE HUS-545037101
...
13
PRESSURE SEAL,OILER 36/41 HUS-530019174
...
14
TANK ASSEMBLY HUS-530052450
...
15
SCREW HUS-530015896
...
16
BAR PLATE HUS-530047855
...
17
CHOKE 36/41 HUS-530029831
...
18
CLIP HUS-530015922
...
19
AIR CONDUCTOR 36/41 HUS-530029800
...
20
SCREW M5-0.8X35M TAP HUS-530016037
...
21
OIL CAP HUS-501765602
...
22
BAR BOLT 36/41 HUS-530015877
...
23
PLATE,BAR MOUNT HUS-530036043
...
24
NUT M8 FLANGE HUS-503220001
...
25
CHAIN CATCHER 36/41 HUS-530029850
...
26
SCREW HUS-530015937

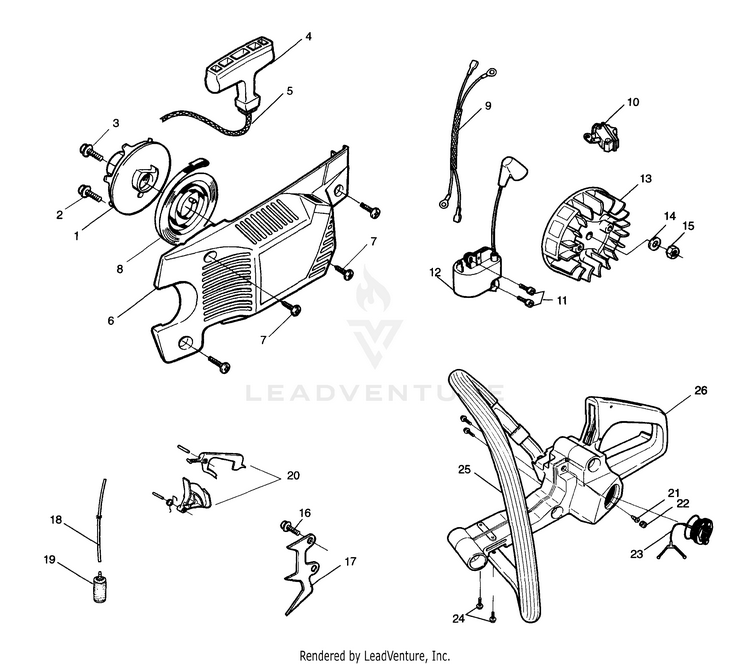

Starter, Ignition, Tank Assembly And Throttle Trigger Kit

...
...
1
PULLEY 36/41 HUS-530069313
...
2
SCREW HUS-530015920
...
3
SCREW HUS-530016080
...
4
STARTER HANDLE GRAY HUS-530150318
...
5
KIT-ROPE HUS-530069232
...
6
FAN HOUSING HUS-530049811
...
7
SCREW,STRTR CVR 36/41 HUS-530015892
...
8
RECOIL SPRING HUS-501763101
...
9
LEAD WIRE ASSY HUS-530403257
...
10
SWITCH ON/OFF HUS-503717901
...
11
SCREW,IGN MOD 36/41 HUS-530015895
...
12
MODULE HUS-575803501
...
13
ASSY FLYWHEEL FENGLONG P021 HUS-575635502
...
14
WASHER-FLYWHEEL HUS-530015127
...
15
NUT HUS-530016071
...
16
SCREW,FRONT HBAR 36/41 HUS-530015906
...
17
SPIKE 36/41 HUS-530014381
...
18
HOSE. FUEL HUS-530069247
...
19
FUEL PICK-UP ASSY HUS-530095646
...
20
THROTTLE TRIGGER-KIT HUS-530069587
...
21
VALVE-CHECK (DUCKBILL) HUS-530026119
...
22
VENT,FUEL TANK 36/41 HUS-530029868
...
23
TANK CAP HUS-537215207
...
24
SCREW,FRONT HBAR 36/41 HUS-530015906
...
25
Handle HUS-530014290
...
26
TANK/HANDLE ASSY HUS-530014884
