Husqvarna 40 (1987-01) Chain Saw

Model: 40 (1987-01)

Back To Assemblies

Save Part Not Listed?
product name

Starter Assembly

...
...
501551402
STARTER HANDLE HUS-503543901
...
505305125
STARTER ROPE HUS-505305125
...
501630601
SLEEVE HUS-501630601
...
503211801
SCREW NLA HUS-503211801
...
503230035
WASHER 5.3X15 HUS-503230035
...
506016401
STARTER PULLEY HUS-537201901
...
501763101
RECOIL SPRING HUS-501763101
...
503105901
STARTER HOUSING HUS-503105906
...
503211801
SCREW NLA HUS-503211801
...
503106001
DECAL HUS-503619605
...
503106003
DECAL 45 HUS-503619606

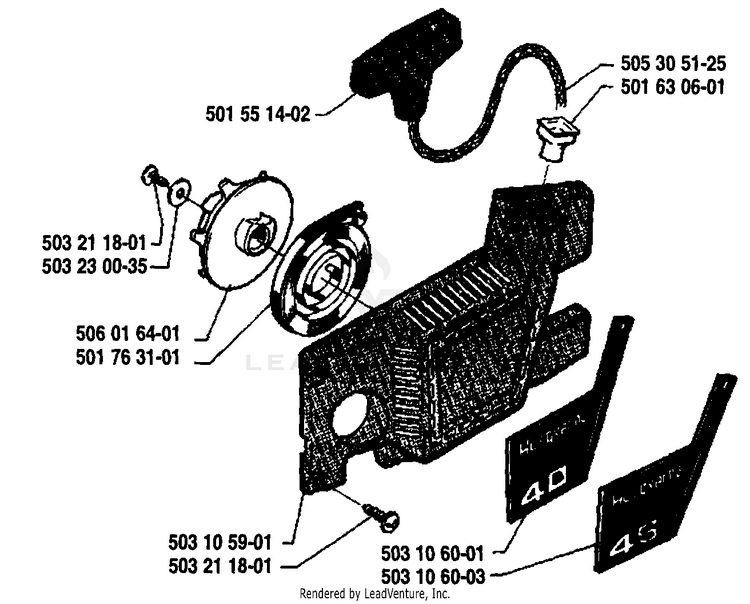

Schematic Image Zoomed
