Husqvarna 40 (1987-01) Chain Saw

Model: 40 (1987-01)

Back To Assemblies

Save Part Not Listed?
product name

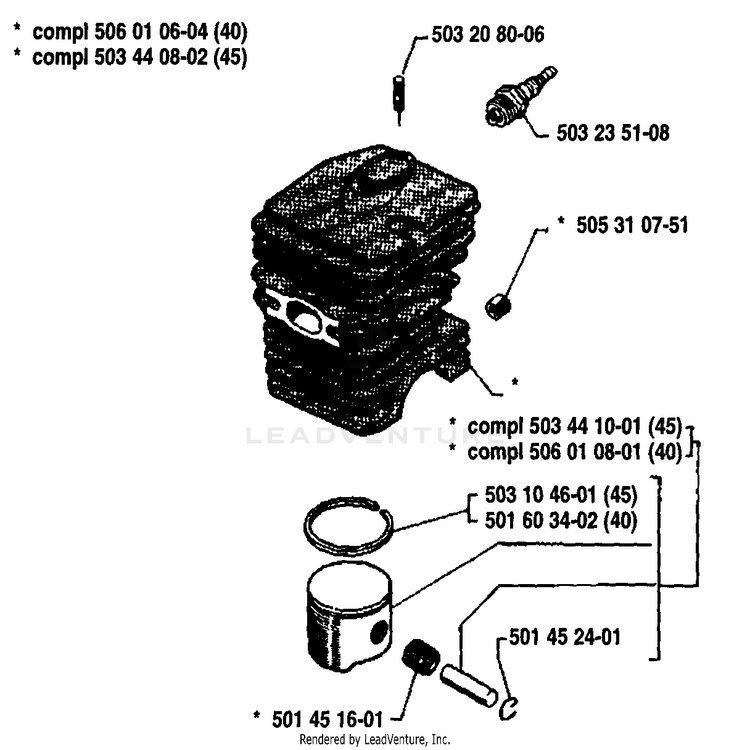

Piston/Cylinder

...
...
506010604
CYLINDER ASSY HUS-503625502
...
503440802
CYLINDER ASSY HUS-503625502
...
503208006
STUD 5X22 HUS-503208006
...
503235108
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
505310751
IMPULSE PIPE HUS-505310751
...
503441001
PISTON HUS-503441002
...
506010801
PISTON COMPL. HUS-503489002
...
503104601
PISTON RING HUS-503289005
...
501603402
PISTON RING HUS-537400001
...
501452401
LOCKING RING HUS-737441000
...
501451601
SUPPORT BUSHING HUS-501451601
