product name

Husqvarna 40 (1987-01) Chain Saw

Model: 40 (1987-01)

Back To Assemblies

Save Part Not Listed?
product name

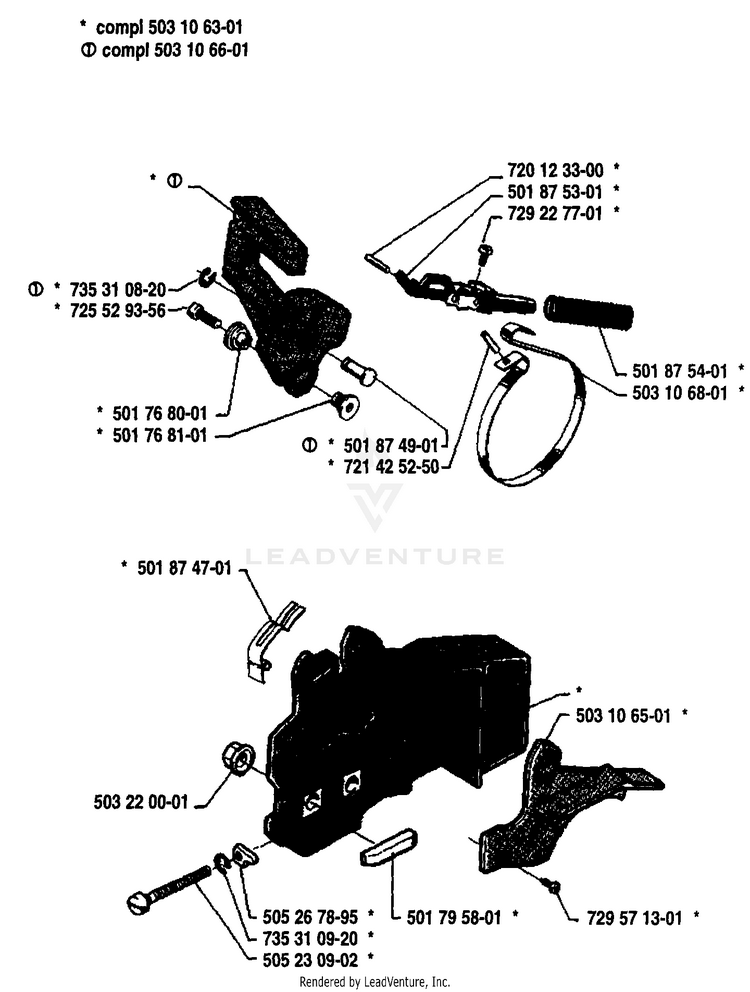

Chain Brake Assembly

...
...
503106301
CHAINBRAKE HUS-503106302
...
503106601
GUARD HUS-503106603
...
735310820
E-RING 4 HUS-735310820
...
725529356
SCREW MC6S 4X16 HUS-725529356
...
501768001
PIVOT SLEEVE R HUS-501768001
...
501768101
PIVOT SLEEVE L HUS-501768101
...
501874901
PIVOT PIN HUS-503802701
...
721425250
SPIRAL PIN 4X12 HUS-721425250
...
720123300
PIN 3X10 HUS-720123300
...
501875301
KNEE-JOINT HUS-501875301
...
729227701
SCREW HUS-503212810
...
501875401
SPRING HUS-501875401
...
503106801
BRAKE BAND HUS-503688501
...
501874701
SPRING HUS-501874701
...
503220001
NUT M8 FLANGE HUS-503220001
...
505267895
PIN-ADJUSTING HUS-505267895
...
735310920
E-RING 5 HUS-735310920
...
505230902
SCREW HUS-505230902
...
501795801
GUIDE HUS-501795801
...
503106501
CAP HUS-503106501
...
729571301
SCREW HUS-503212810
