Husqvarna 40 (1987-01) Chain Saw

Model: 40 (1987-01)

Back To Assemblies

Save Part Not Listed?
product name

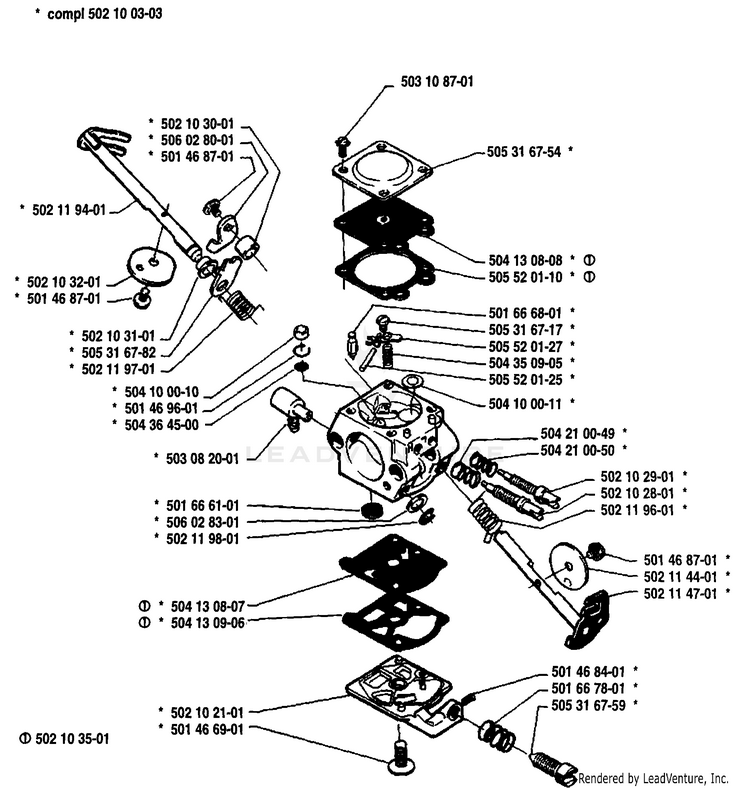

Carburetor Parts

...
...
502100303
CARBURETOR HUS-503281320
...
502103001
SPACER HUS-502103001
...
506028001
STARTER LEVER HUS-506028001
...
501468701
SCREW HUS-501468701
...
502119401
CHOKE SHAFT HUS-502119401
...
502103201
Choke Flap HUS-502103201
...
501468701
SCREW HUS-501468701
...
502103101
BUSHING HUS-502103101
...
505316782
STARTER LEVER HUS-505316782
...
502119701
SPRING HUS-502119701
...
504100010
CUP PLUG HUS-530035225
...
503108701
SCREW HUS-503584601
...
505316754
DIAPHRAGM COVER HUS-505316754
...
504130808
DIAPHRAGM HUS-503896701
...
505520110
GASKET, METERING SIDE HUS-505520110
...
501666801
INLET NEEDLE HUS-503563401
...
505316717
SCREW HUS-505316717
...
505520127
LEVER HUS-505520127
...
504350905
Spring HUS-504350905
...
505520125
FULCRUM PIN HUS-505520125
...
504100011
WELCH PLUG HUS-503574201
...
504210049
SPRING, H-NEEDLE HUS-504210049
...
504210050
NEEDLE SPRING HUS-530035293
...
502102901
LO-SPEED NEEDLE HUS-502102901
...
502102801
HI-SPEED NEEDLE HUS-502102801
...
502119601
SPRING HUS-502119601
...
501468701
SCREW HUS-501468701
...
502114401
Throttle Flap HUS-502114401
...
502114701
SHAFT ASS'Y/THROTTLE HUS-503570201
...
501468401
SPRING HUS-501468401
...
501667801
IDLE SCREW SPRING HUS-530035121
...
505316759
SCREW HUS-503104701
...
502103501
REPAIR KIT DIAPHRAGM SET HUS-502103501
...
503082001
NIPPLE HUS-503082001
...
501666101
FUEL INLET SCREEN HUS-501666101
...
506028301
WASHER HUS-506028301
...
502119801
CLIPS HUS-502119801
...
504130807
PUMP DIAPHRAGM HUS-504130807
...
504130906
GASKET HUS-504130906
...
502102101
Pump Cover HUS-502102101
...
501466901
SCREW HUS-501466901
...
501469601
HUS-501469502
...
504364500
FILTER HUS-504364500
