Husqvarna 3P409D (1998) Walk Behind Rotary Mower

Model: 3P409D (1998)

Save Part Not Listed?
product name

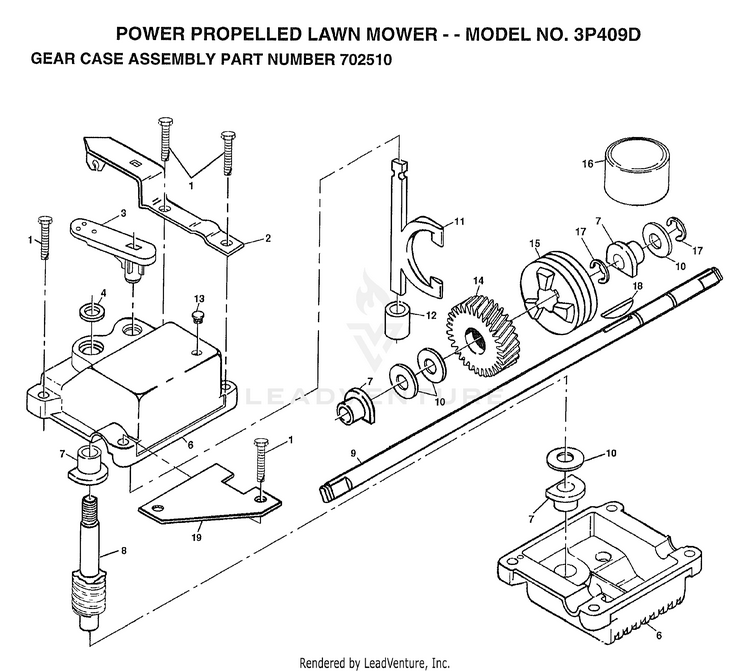

GEAR CASE ASSEMBLY

...
...
xx
SUB= 48366 HUS-702510
...
1
SCREW.1/4-20 HUS-17490416
...
2
BRACKET.GEARCASE HUS-137055X004
...
3
SHIFTER HUS-137053
...
4
SEAL HUS-57072
...
6
KIT GEARCASE HALV HUS-48373
...
7
BEARING HUS-77881
...
8
SHAFT.WORM HUS-137051
...
9
SHAFT.DRIVE.SD HUS-137077
...
10
THRUST WASHER HUS-57079
...
11
CLUTCH YOKE HUS-131484
...
12
BUSHING.GEAR BOX HUS-700343
...
13
PLUG PM HUS-86447
...
14
GEAR.HELICAL HUS-137050
...
15
CLUTCH JAW HUS-750436X
...
16
SUB= 6066J HUS-750369
...
17
RING T HUS-12000003
...
18
HI PRO KEY HUS-850848
...
19
SPRING BRKT HUS-81585X004

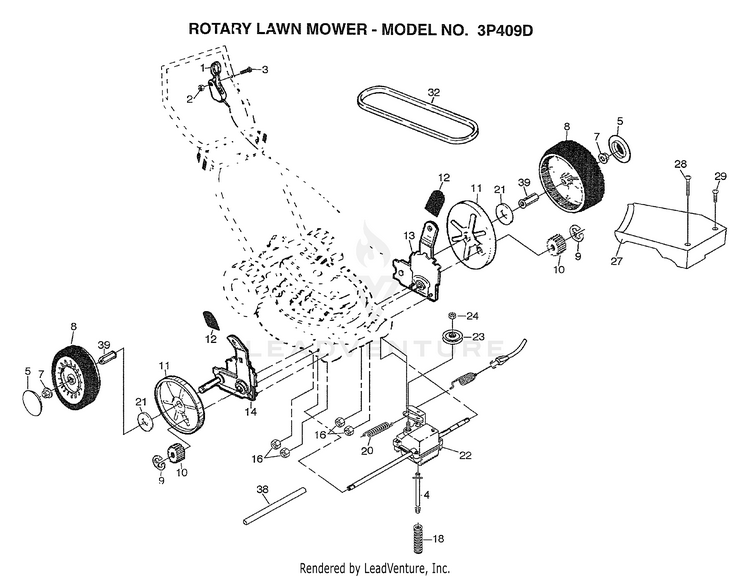

ROTARY LAWN MOWER

...
...
1
CONTROL.DRV.56.25 HUS-146323
...
2
LOCKNUT HUS-751152
...
3
PAN HEAD SCREW HUS-158755
...
4
SPRING.RETAINER. HUS-150495
...
5
HUB CAP HUS-77400
...
7
NUT.HXFLG.LOCK. HUS-145212
...
8
WHEEL.8X2.LP.PR HUS-700953
...
9
E-RING.7/16.RE. HUS-12000058
...
10
PINION.GEAR HUS-137054
...
11
DUST SHROUD PM HUS-88080
...
12
KNOB PM HUS-87877
...
13
WHEEL.ADJ.ASM.LH. HUS-151521
...
14
WHEEL.ADJ.ASM.RH. HUS-151520
...
16
SUB= 73800400 HUS-63601
...
18
SPRING.TENSION HUS-137090
...
20
SPRING HUS-75192
...
21
WASHER FLUT HUS-67725
...
22
SUB= 48366 HUS-702510
...
23
PULLEY.DRIVEN HUS-137052
...
24
LOCKNUT HUS-132010
...
27
COVER DRIVE BLK HUS-137080
...
28
SCREWL.SLOT.TORXT HUS-146072
...
29
SCREW.SLOT.TORTX. HUS-149746
...
32
SUB= 157769 HUS-146527
...
38
DRV SHAFT TUBE PM HUS-86012
...
39
BUSHING.HEX HUS-88446

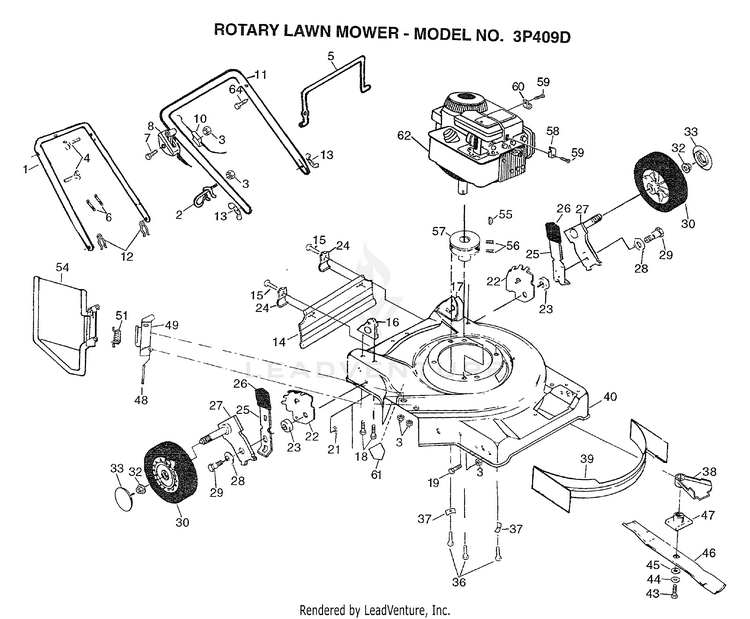

ROTARY LAWN MOWER

...
...
1
HANDLE LOWER HUS-157081X479
...
2
ROPE GUIDE HUS-132001
...
3
SUB= 73800400 HUS-63601
...
4
BOLT.HANDLE.LM HUS-131959
...
5
BAIL.CNTRL.STD.BL HUS-145793
...
6
SUB= 7192J HUS-664-26
...
7
PAN HEAD SCREW HUS-158755
...
8
CONTROL THROTTLE HUS-851462
...
10
"CABLE,ENG ZONE CO" HUS-130861
...
11
SUB= 165452X479 HUS-145645X479
...
12
HAIRPIN COTTER HUS-51793
...
13
"NUT,WING PM" HUS-128638
...
14
SKIRT.REAR.FGD.22 HUS-140540
...
15
TAPPING SCREW HUS-750097
...
16
HDLE BRKT ASSY.RH HUS-151665X479
...
17
HDLE BRKT ASSY LH HUS-151667X479
...
18
SCREW 5/16-18X3/4 HUS-149741
...
19
SCREW HUS-74100412
...
21
LOCKNUT PM HUS-751592
...
22
BRACKET.ADJ.9POS. HUS-700325X007
...
23
SPACER.HEIGHT.ADJ HUS-146630
...
24
"BRKT,DEFL PM" HUS-87584X004
...
25
SPRING SELECTOR HUS-700331X004
...
26
KNOB PM HUS-87877
...
27
ARM.AXLE.ASM.BZP. HUS-145935X004
...
28
"WASHER, BELLEVIL." HUS-62335
...
29
BOLT SHLD 3/8-16 HUS-142748
...
30
WHEEL.8X2.PR.RAD. HUS-146247
...
32
HEX FLANGE LOCKNT HUS-83923
...
33
HUB CAP HUS-77400
...
36
BOLT.ENG.3/8-16 HUS-150406
...
37
WASHER HUS-851201X004
...
38
SUB= 48283 HUS-134612
...
39
BAFFLE FRONT 22SD HUS-132352X479
...
40
KIT.HSG.22SD.FWGD HUS-147827
...
43
SCREW HUS-851084
...
44
LOCKWASHER HUS-850263
...
45
"WASHER,HARDEN" HUS-851074
...
46
"BLADE.MULCH.22""" HUS-141114
...
47
ADAPTOR.BLADE.LM HUS-851514
...
48
ROD.HINGE.COMBI-C HUS-147286
...
49
BRACKET.HINGE.W/F HUS-147775
...
51
SPRING.HINGE HUS-152186
...
54
GUARD.DISCH.22SD. HUS-145282
...
55
HI PRO KEY PM HUS-87677
...
56
SCREW HUS-59708
...
57
ENGINE.PULLEY.FWG HUS-84596
...
58
CABLE CLAMP HUS-213146
...
59
SCREW PM HUS-83816
...
60
GUIDE CLIP PM HUS-87930
...
61
DECAL HYT HUS-107339X
...
xx
"BAFFLE,REAR" HUS-83976X479
...
xx
MANUAL.GEN.SP.E. HUS-145658
...
xx
MANUAL.P.3P409D HUS-164008
...
xx
SUB= GCK3200A HUS-GCK3200
...
xx
"KIT, MULCHER 22""" HUS-MK1000
