Husqvarna 3M402A (1995) Walk Behind Rotary Mower

Model: 3M402A (1995)

Back To Assemblies

Save Part Not Listed?
product name

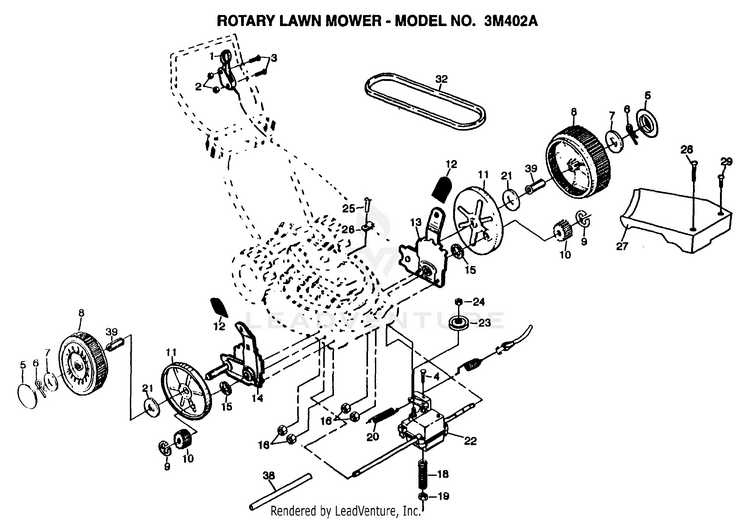

ROTARY LAWN MOWER

...
...
1
CONTROL.DRIVE HUS-137076
...
2
LOCKNUT HUS-69180
...
3
SCREW HUS-750029
...
4
BOLT.1/4-20X2.0 HUS-700875
...
5
HUB CAP HUS-77400
...
6
RETAINER CLIP PM HUS-85179
...
7
WASHER HUS-52160
...
8
WHEEL.8X2.LP.PR HUS-700953
...
9
E-RING.7/16.RE. HUS-12000058
...
10
PINION.GEAR HUS-137054
...
11
DUST SHROUD PM HUS-88080
...
12
KNOB PM HUS-87877
...
13
SUB= 151228 HUS-148484
...
14
SUB= 151226 HUS-148485
...
15
WASHER PM HUS-88118
...
16
SUB= 73800400 HUS-63601
...
18
SPRING.TENSION HUS-137090
...
19
SUB= 73800400 HUS-63601
...
20
SPRING HUS-75192
...
21
WASHER FLUT HUS-67725
...
22
SUB= 48366 HUS-702510
...
23
PULLEY.DRIVEN HUS-137052
...
24
LOCKNUT HUS-132010
...
25
TAPPING SCREW HUS-750097
...
26
GUIDE CLIP PM HUS-87930
...
27
COVER DRIVE BLK HUS-137080
...
28
SUB= 146072 HUS-87866
...
29
SUB= 149746 HUS-136797
...
32
SUB= 157769 HUS-137078
...
38
DRV SHAFT TUBE PM HUS-86012
...
39
BUSHING.HEX HUS-88446
