Husqvarna 3M302A (1996) Walk Behind Rotary Mower

Model: 3M302A (1996)

Back To Assemblies

Save Part Not Listed?
product name

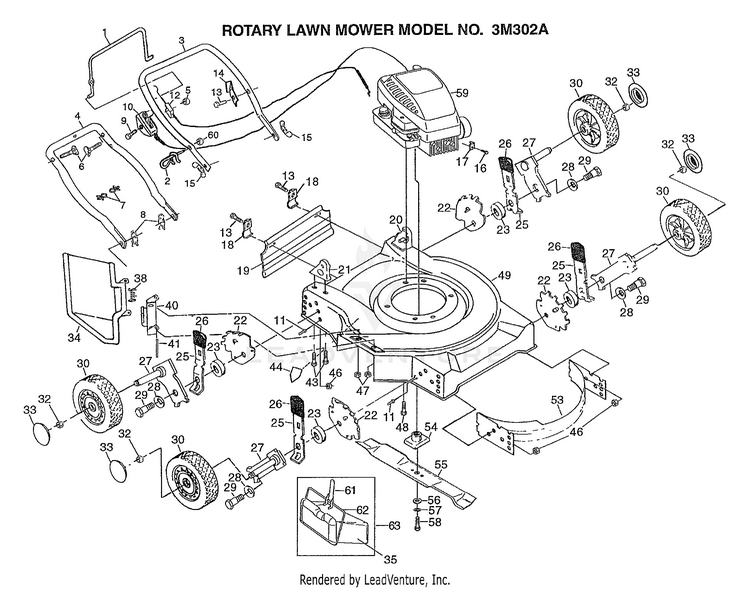

ROTARY LAWN MOWER

...
...
1
CONTROL BAR HUS-131696
...
2
ROPE GUIDE HUS-132001
...
3
SUB= 166860X479 HUS-153346X479
...
4
LOWER HANDLE HUS-151721X479
...
5
SUB= 73800400 HUS-63601
...
6
BOLT.HANDLE.LM HUS-131959
...
7
SUB= 7192J HUS-151517
...
8
HAIRPIN COTTER HUS-51793
...
9
SCREW.HXHD.WASH. HUS-144929
...
10
"CONTROL, THROTTLE" HUS-700417
...
11
BLIND RIVET HUS-128415
...
12
"CABLE,ENG ZONE CO" HUS-130861
...
13
TAPPING SCREW HUS-750097
...
14
"BRKT,UPSTOP" HUS-850733X004
...
15
"NUT,WING PM" HUS-128638
...
16
SCREW PM HUS-83816
...
17
CABLE CLAMP HUS-213146
...
18
"BRKT,DEFL PM" HUS-87584X004
...
19
SKIRT.REAR.FGD.22 HUS-140540
...
20
HDLE BRKT ASSY LH HUS-151667X479
...
21
HDLE BRKT ASSY.RH HUS-151665X479
...
22
BRACKET.ADJ.9POS. HUS-700325X007
...
23
SPACER.HEIGHT.ADJ HUS-146630
...
25
SPRING SELECTOR HUS-700331X004
...
26
KNOB PM HUS-87877
...
27
ARM.AXLE.ASM.BZP. HUS-145935X004
...
28
"WASHER, BELLEVIL." HUS-62335
...
29
BOLT SHLD 3/8-16 HUS-142748
...
30
WHEEL.8X1.75.WHT HUS-148438
...
32
HEX FLANGE LOCKNT HUS-83923
...
33
HUB CAP HUS-77400
...
34
GUARD.DISCH.22SD. HUS-145282
...
35
MULCHER PLUG HUS-150117
...
38
SPRING.HINGE HUS-152186
...
40
BRACKET.HINGE.W/F HUS-147775
...
41
ROD.HINGE.COMBI-C HUS-147286
...
43
SCREW 5/16-18X3/4 HUS-149741
...
44
DECAL HYT HUS-107339X
...
46
LOCKNUT PM HUS-751592
...
47
SUB= 73800400 HUS-63601
...
48
BOLT.ENG.3/8-16 HUS-150406
...
49
KIT.HSG.22SD.PUSH HUS-702208
...
53
BAFFLE.FRT/REAR HUS-700929X479
...
54
BLADE ADAPTOR HUS-850977
...
55
"BLADE.MULCH.22""" HUS-141114
...
56
"WASHER,HARDEN" HUS-851074
...
57
LOCKWASHER HUS-850263
...
58
SCREW HUS-851084
...
60
NUT HUS-73510400
...
61
LATCH.BAIL.MULCH. HUS-150119X004
...
62
MULCHER BAIL HUS-150118
...
63
PLUG.MULCHING.ASM HUS-148100
...
xx
MANUAL.OP.GEN.PUS HUS-145655
...
xx
MANUAL.P.3M302A HUS-154633
...
xx
SUB= GCK3200A HUS-GCK 2200
