Husqvarna 3A201B (1999 & Before) Walk Behind Rotary Mower

Model: 3A201B (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

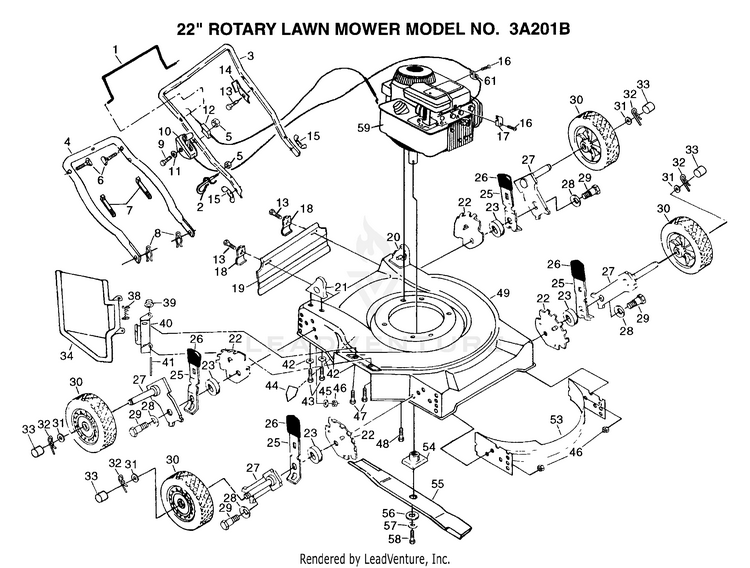

22" ROTARY MOWER

...
...
1
CONTROL BAR PM HUS-86902
...
2
ROPE GUIDE HUS-132001
...
3
SUB= 160223X479 HUS-132649X479
...
4
SUB= 151516X479 HUS-84676X479
...
5
SUB= 73800400 HUS-63601
...
6
BOLT.HANDLE.LM HUS-131959
...
7
SUB= 7192J HUS-664-26
...
8
HAIRPIN COTTER HUS-51793
...
9
SUB= 74250434 HUS-85692
...
10
CONTROL THROTTLE HUS-851462
...
11
WASHER PM HUS-85723
...
12
"CABLE,ENG ZONE CO" HUS-130861
...
13
TAPPING SCREW HUS-750097
...
14
"BRKT,UPSTOP" HUS-850733X004
...
15
"NUT,WING PM" HUS-128638
...
16
SCREW PM HUS-83816
...
17
CABLE CLAMP HUS-21314
...
18
"BRKT,DEFL PM" HUS-87584X004
...
19
SUB= 140540 HUS-128797
...
20
SUB= 150959 HUS-701971X479
...
21
SUB= 150959 HUS-701969X479
...
22
BRACKET.WHL.ADJ.9 HUS-700328X007
...
23
SUB= 146630 HUS-84920
...
25
SPRING SELECTOR HUS-700331X004
...
26
KNOB PM HUS-87877
...
27
AXLE ARM HUS-85021X004
...
28
"WASHER, BELLEVIL." HUS-62335
...
29
SUB= 142748 HUS-84921
...
30
WHEEL.ASM HUS-800220
...
31
WASHER HUS-52160
...
32
RETAINER CLIP PM HUS-85179
...
33
HUB CAP-PLASTIC HUS-800090
...
34
SUB= 532851750 HUS-851750
...
38
"SPRING,TORSION" HUS-851855
...
39
PUSH ON SPEED NUT HUS-83731
...
40
"BRKT,HSG" HUS-851852X004
...
41
"ROD,HINGE " HUS-851854
...
42
STEEL WASHER HUS-59289
...
43
SCREW HUS-55187
...
44
DECAL HYT HUS-107339X
...
45
SUB= 19132012 HUS-61537
...
46
LOCKNUT PM HUS-751592
...
47
SCREW HUS-851856
...
48
SCREW HUS-850998
...
49
KIT.HSG.22SD.PUSH HUS-702208
...
53
BAFFLE.FRT/REAR HUS-700929X479
...
54
BLADE ADAPTOR HUS-850977
...
55
"BLADE.22""" HUS-850973
...
56
"WASHER,HARDEN" HUS-851074
...
57
LOCKWASHER HUS-850263
...
58
SCREW HUS-851084
...
61
GUIDE CLIP PM HUS-87930
...
xx
MANUAL OP GEN RTA HUS-140751
...
xx
MANUAL.P.3A201B HUS-142764
