Husqvarna 395 XP/XPG (20070100001-Current) Chain Saw

Model: 395 XP/XPG (20070100001-Current)

Back To Assemblies

Save Part Not Listed?
product name

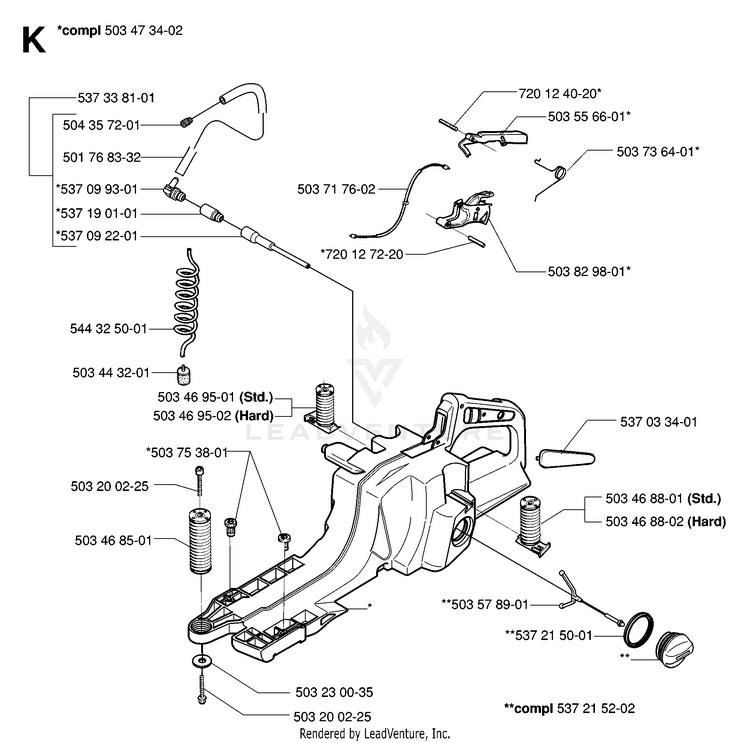

FUEL TANK

...
...
537 09 93-01
CONNECTOR HUS-537099301
...
720 12 72-20
PIN CPH8 4X20 HUS-720127220
...
544 32 50-01
FUEL HOSE HUS-581756205
...
537 19 01-01
ADAPTER HUS-537190101
...
537 21 52-02
TANK CAP HUS-537215207
...
503 57 89-01
TANK LOCK HUS-503578901
...
503 20 02-25
SCREW HUS-503200225
...
537 09 22-01
TANK VALVE HUS-537092201
...
503 46 95-01
SPRING HUS-503469501
...
503 82 98-01
THROTTLE TRIGGER HUS-503829801
...
503 71 76-02
WIRE HUS-503717602
...
503 73 64-01
SPRING HUS-503736401
...
537 33 81-01
TANK VENT ASSY HUS-537338101
...
503 55 66-01
THROTTLE CATCH HUS-503556601
...
503 46 88-02
ANTIVIBE ELEMENT HUS-503468802
...
503 46 88-01
SPRING L HUS-503468801
...
503 23 00-35
WASHER 5.3X15 HUS-503230035
...
537 21 50-01
SEALING HUS-589241101
...
720 12 40-20
PIN HUS-720182520
...
537 03 34-01
HANDLE HUS-537033401
...
503 46 85-01
SPRING FRONT HUS-503468501
...
503 44 32-01
KIT FUEL FILTER HUS-591375401
...
503 47 34-02
FUEL TANK SHORT VENT R-DEL HUS-503473405
...
504 35 72-01
SINTER PLUG HUS-504357201
...
503 75 38-01
THREAD INSERT HUS-503753801
...
503 46 95-02
ANTIVIBE ELEMENT HARD HUS-503469502
...
501 76 83-32
FUEL HOSE HUS-581756133
