Husqvarna 395 XP/XPG (20070100001-Current) Chain Saw

Model: 395 XP/XPG (20070100001-Current)

Back To Assemblies

Save Part Not Listed?
product name

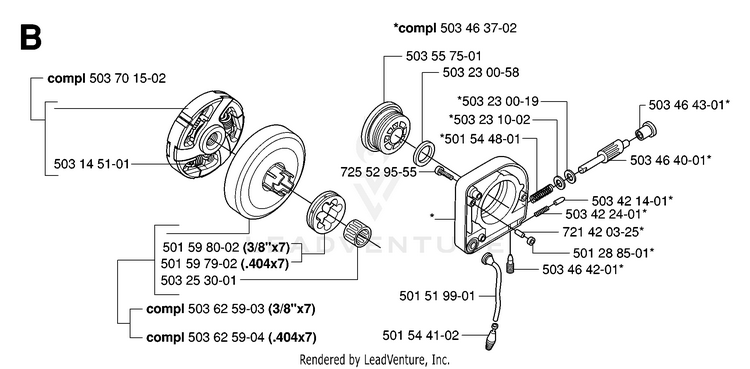

CLUTCH & OIL PUMP

...
...
725 52 95-55
SCREW HUS-503202620
...
503 14 51-01
CLUTCH SPRING HUS-503145101
...
503 62 59-03
CLUTCH DRUM HUS-503625903
...
501 28 85-01
X-RING HUS-501288501
...
503 46 40-01
PUMP PISTON HUS-503464001
...
501 59 80-02
68210/RIM HUS-640200214
...
503 62 59-04
CLUTCH DRUM HUS-503625904
...
503 46 37-02
OIL PUMP HUS-503463702
...
503 70 15-02
CLUTCH HUS-503701502
...
503 42 24-01
SPRING HUS-503422401
...
501 54 48-01
SPRING HUS-501544801
...
503 46 43-01
CAP HUS-503464301
...
503 46 42-01
SCREW HUS-503464201
...
501 51 99-01
OIL HOSE HUS-501519901
...
503 23 10-02
WASHER 6.6X11 HUS-503231002
...
721 42 03-25
SPRING PIN 3X6 HUS-721420325
...
501 54 41-02
OIL SCREEN HUS-501544102
...
503 25 30-01
SUPPORT BUSHING HUS-503253001
...
503 42 14-01
PIN HUS-503421401
...
501 59 79-02
22270 RIMSPROCKET HUS-501597902
...
503 55 75-01
WORM GEAR HUS-503557501
...
503 23 00-58
WASHER HUS-503230058
...
503 23 00-19
WASHER 6.6X11 HUS-503230019
