Husqvarna 395 XP/XPG (20070100001-Current) Chain Saw

Model: 395 XP/XPG (20070100001-Current)

Back To Assemblies

Save Part Not Listed?
product name

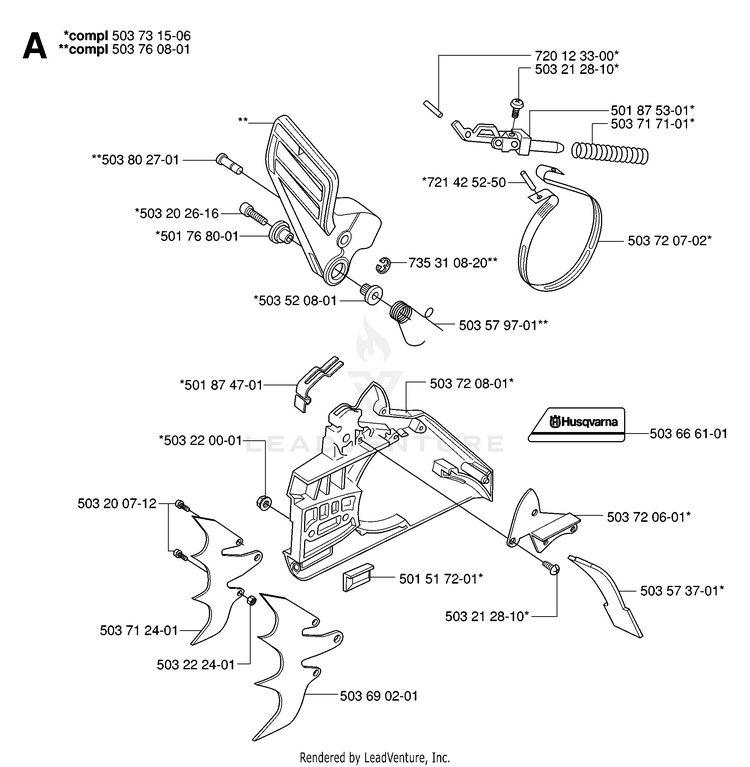

CHAIN BRAKE & CLUTCH COVER

...
...
735 31 08-20
E-RING 4 HUS-735310820
...
503 57 97-01
SPRING HUS-503579701
...
503 72 06-01
LID HUS-503720601
...
503 71 71-01
BRAKE SPRING HUS-503717101
...
503 73 15-06
CHAINBRAKE HUS-503731506
...
720 12 33-00
PIN 3X10 HUS-720123300
...
503 72 07-02
BRAKE BAND HUS-503720702
...
503 21 28-10
SCREW HUS-503212810
...
503 69 02-01
FELLING DOG HUS-503690201
...
503 71 24-01
FELLING DOG HUS-503712401
...
503 80 27-01
PIVOT PIN HUS-503802701
...
503 52 08-01
PIVOT SLEEVE L HUS-503520801
...
503 66 61-01
LABEL HUS-537329501
...
503 20 07-12
SCREW HUS-503200712
...
721 42 52-50
SPIRAL PIN 4X12 HUS-721425250
...
503 76 08-01
HANDGUARD HUS-503760801
...
503 72 08-01
CHAINBRAKE HUS-503731506
...
501 87 53-01
KNEE-JOINT HUS-501875301
...
503 20 26-16
SCREW HUS-503202616
...
503 22 00-01
NUT M8 FLANGE HUS-503220001
...
503 57 37-01
PROTECTOR HUS-503573701
...
503 22 24-01
NUT HUS-503222401
...
501 76 80-01
PIVOT SLEEVE R HUS-501768001
...
501 87 47-01
SPRING HUS-501874701
...
501 51 72-01
CHAIN GUIDE HUS-501517201
