Husqvarna 395 XP/XPG (20070100001-Current) Chain Saw

Model: 395 XP/XPG (20070100001-Current)

Back To Assemblies

Save Part Not Listed?
product name

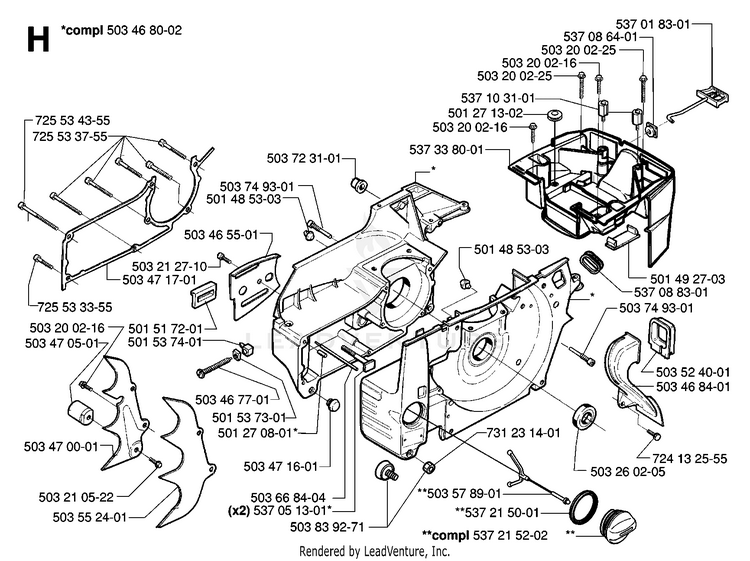

CRANKCASE

...
...
503 55 24-01
SPIKE INNER HUS-503552401
...
503 21 05-22
SCREW HUS-503210522
...
501 53 74-01
COUPLING HUS-501537401
...
503 66 84-04
OIL TANK VENT HUS-503668404
...
537 08 83-01
GROMMET HUS-537088301
...
501 51 72-01
CHAIN GUIDE HUS-501517201
...
501 27 08-01
GUIDE BUSHING HUS-593806001
...
537 05 13-01
BOLT HUS-537051301
...
503 47 16-01
BUMPER HUS-503471601
...
503 46 77-01
SCREW CHAIN TENSIONER HUS-503467701
...
503 47 00-01
SPIKE HUS-503470001
...
503 46 80-02
CRANKCASE HUS-503468002
...
731 23 14-01
NUT HUS-731231401
...
725 53 43-55
SCREW MC6S 5X60 HUS-725534355
...
537 10 31-01
VIBRATION ABSORBER HUS-537103101
...
503 26 02-05
SEALING RING HUS-503260205
...
501 49 27-03
COVER HUS-501492703
...
503 74 93-01
SCREW HUS-503749301
...
503 83 92-71
VIBRATION DAMPER HUS-503839271
...
503 20 02-25
SCREW HUS-503200225
...
537 21 50-01
SEALING HUS-589241101
...
725 53 33-55
SCREW MC6S 5X25 HUS-725533355
...
501 48 53-03
RUBBER BUMPER HUS-501485303
...
503 46 84-01
AIR JET HUS-503468401
...
503 46 55-01
PLATE HUS-503465501
...
503 21 27-10
SCREW HUS-503212710
...
537 21 52-02
TANK CAP HUS-537215207
...
503 20 02-16
SCREW HUS-503200216
...
503 47 05-01
CHAIN CATCHER HUS-503470501
...
501 27 13-02
GROMMET HUS-501271302
...
724 13 25-55
SCREW 394 HUS-724132555
...
503 52 40-01
GROMMET HUS-503524001
...
537 01 83-01
CHOKE CONTROL HUS-537018301
...
501 53 73-01
COUPLING (10 CNT) HUS-501537301
...
503 57 89-01
TANK LOCK HUS-503578901
...
725 53 37-55
SCREW MC6S 5X35 HUS-725533755
...
503 47 17-01
GASKET HUS-503471701
...
537 08 64-01
GROMMET HUS-537086401
...
503 72 31-01
BUSHING HUS-503723101
...
537 33 80-01
HOUSING HUS-537338001
