Husqvarna 395 XP/XPG (20070100001-Current) Chain Saw

Model: 395 XP/XPG (20070100001-Current)

Back To Assemblies

Save Part Not Listed?
product name

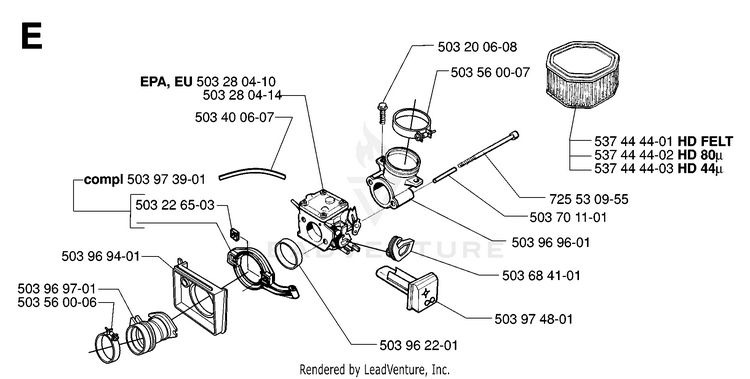

CARBURETOR & AIR FILTER

...
...
503 28 04-14
CARBURETOR HUS-501355501
...
503 97 39-01
FLANGE HUS-503973901
...
503 70 11-01
PIPE HUS-503701101
...
537 44 44-02
AIR FILTER HD 80 HUS-537444402
...
503 56 00-07
CLAMP HUS-505283315
...
503 97 48-01
SLEEVE HUS-503974801
...
503 20 06-08
SCREW IHSCFM HUS-503200702
...
537 44 44-01
AIR FILTER FELT HUS-537444401
...
503 96 22-01
SLEEVE HUS-503962201
...
503 22 65-03
NUT HUS-503226503
...
503 68 41-01
LEVER HUS-503684101
...
503 96 97-01
INLET PIPE HUS-503969701
...
503 28 04-10
CARBURETTOR WJ-115A 395 W 5MM HUS-531440001
...
503 56 00-06
Hoses HUS-505283313
...
503 96 96-01
CONNECTION HUS-503969601
...
725 53 09-55
SCREW HUS-725530955
...
537 44 44-03
AIR FILTER HD 44 HUS-537444403
...
503 40 06-07
HOSE HUS-503400607
...
503 96 94-01
COLLAR HUS-503969401
