Husqvarna 395 (2003-10) Chain Saw

Model: 395 (2003-10)

Back To Assemblies

Save Part Not Listed?
product name

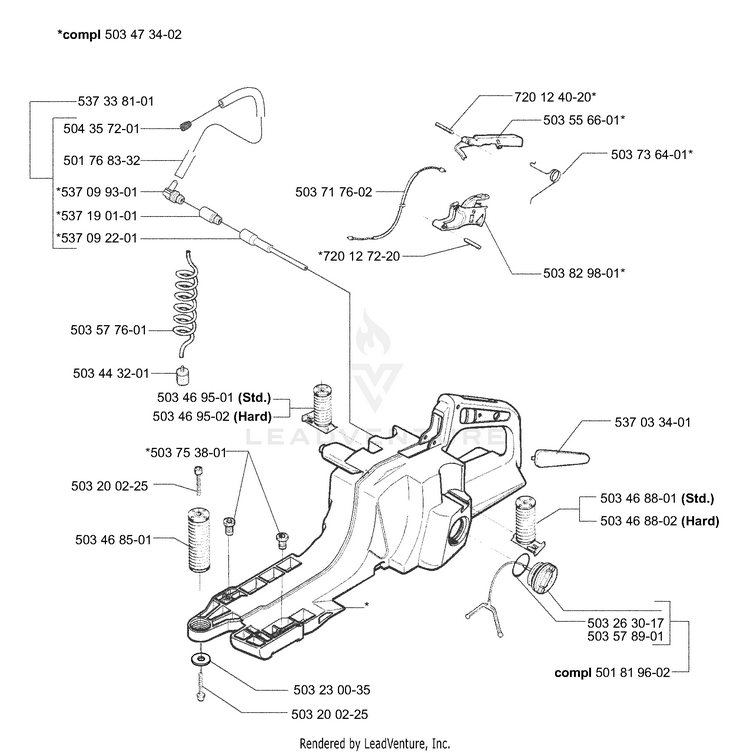

Fuel Tank / Rear Handle

...
...
501768332
FUEL HOSE HUS-581756133
...
501819602
TANK CAP HUS-537215207
...
503200225
SCREW HUS-503200225
...
503200225
SCREW HUS-503200225
...
503230035
WASHER 5.3X15 HUS-503230035
...
503263017
O-RING HUS-503263017
...
503443201
KIT FUEL FILTER HUS-591375401
...
503468501
SPRING FRONT HUS-503468501
...
503468801
SPRING L HUS-503468801
...
503468802
ANTIVIBE ELEMENT HUS-503468802
...
503469501
SPRING HUS-503469501
...
503469502
ANTIVIBE ELEMENT HARD HUS-503469502
...
503473402
FUEL TANK SHORT VENT R-DEL HUS-503473405
...
503556601
THROTTLE CATCH HUS-503556601
...
503577601
FUEL HOSE HUS-581756205
...
503578901
TANK LOCK HUS-503578901
...
503717602
WIRE HUS-503717602
...
503736401
SPRING HUS-503736401
...
503753801
THREAD INSERT HUS-503753801
...
503829801
THROTTLE TRIGGER HUS-503829801
...
504357201
SINTER PLUG HUS-504357201
...
537033401
HANDLE HUS-537033401
...
537092201
TANK VALVE HUS-537092201
...
537099301
CONNECTOR HUS-537099301
...
537190101
ADAPTER HUS-537190101
...
537338101
TANK VENT ASSY HUS-537338101
...
720124020
PIN HUS-720182520
...
720127220
PIN CPH8 4X20 HUS-720127220
