product name

Husqvarna 394 (1996-01) Chain Saw

Model: 394 (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

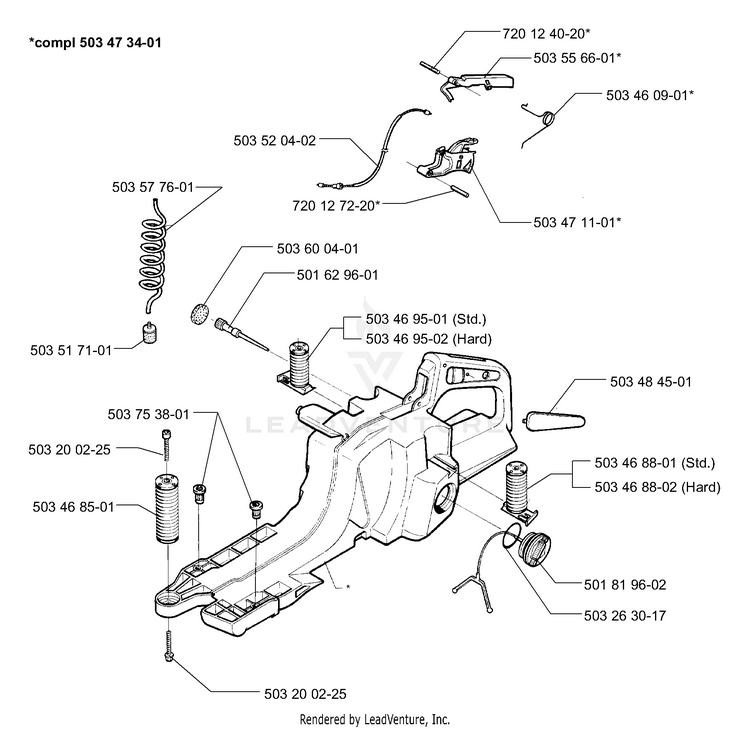

Fuel Tank Assembly

...
...
503200225
SCREW HUS-503200225
...
503517101
FUEL FILTER HUS-503517101
...
503468501
SPRING FRONT HUS-503468501
...
503473401
FUEL TANK SHORT VENT R-DEL HUS-503473405
...
503753801
THREAD INSERT HUS-503753801
...
503577601
FUEL HOSE HUS-581756205
...
503520402
THROTTLE WIRE HUS-503520402
...
503200225
SCREW HUS-503200225
...
503600401
FILTER PLUG HUS-503600401
...
720127220
PIN CPH8 4X20 HUS-720127220
...
501629601
VALVE HUS-501629601
...
503469501
SPRING HUS-503469501
...
503469502
ANTIVIBE ELEMENT HARD HUS-503469502
...
720124020
PIN HUS-720182520
...
503556601
THROTTLE CATCH HUS-503556601
...
503471101
LEVER HUS-503471101
...
501819602
TANK CAP HUS-537215207
...
503263017
O-RING HUS-503263017
...
503468801
SPRING L HUS-503468801
...
503468802
ANTIVIBE ELEMENT HUS-503468802
...
503460901
SPRING HUS-503460901
...
503484501
HANDLE HUS-537033401
