Husqvarna 390XP/XPG/XPW (20064000001-Current) Chain Saw

Model: 390XP/XPG/XPW (20064000001-Current)

Back To Assemblies

Save Part Not Listed?
product name

STARTER

...
...
503 23 43-02
WASHER HUS-503234302
...
503 85 96-01
STARTER PULLEY HUS-503859601
...
501 63 06-01
SLEEVE HUS-501630601
...
537 00 38-71
STARTER DEVICE CPL HUS-537003871
...
537 32 70-03
LABEL HUS-537327003
...
503 20 34-19
SCREW.CCRPANMO.M5X19 10.9 TBO HUS-503203419
...
537 32 70-04
LABEL 390XPG HUS-537327004
...
503 54 39-01
STARTER HANDLE HUS-503543901
...
503 43 29-01
STARTER ROPE HUS-503432901
...
503 21 49-16
SCREW IHSCFT PW5.5X16 8.8 ZN/ HUS-503214972
...
537 32 70-01
DECAL HUS-537327001
...
503 78 72-01
SPRING HUS-503787201
...
537 32 70-02
DECAL HUS-537327002
...
537 00 39-71
STARTER HOUSING HUS-537003971
...
537 00 13-01
AIR CONDUCTOR HUS-537001301
...
537 08 67-01
BUSHING HUS-537086701

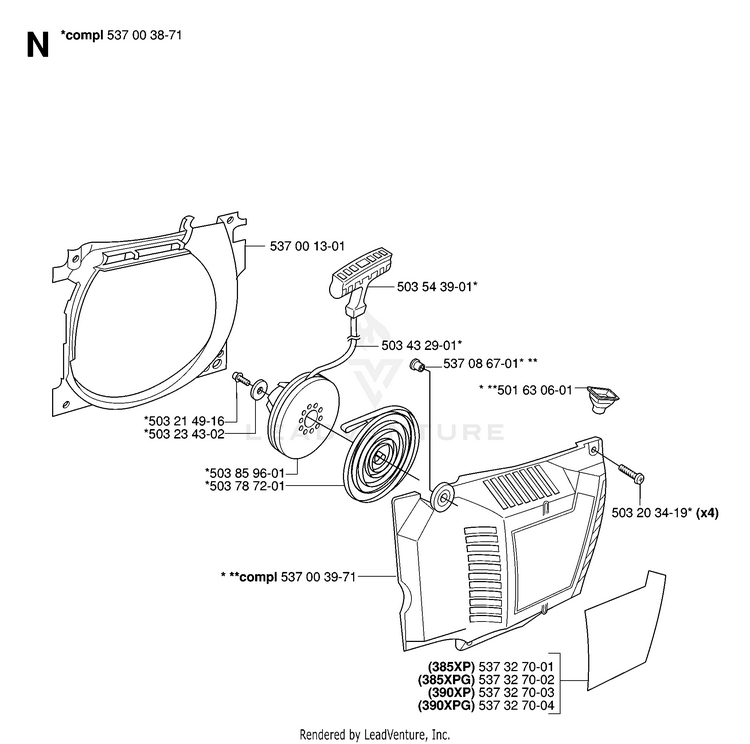

Schematic Image Zoomed
