Husqvarna 390 (2013-09) Chain Saw

Model: 390 (2013-09)

Back To Assemblies

Save Part Not Listed?
product name

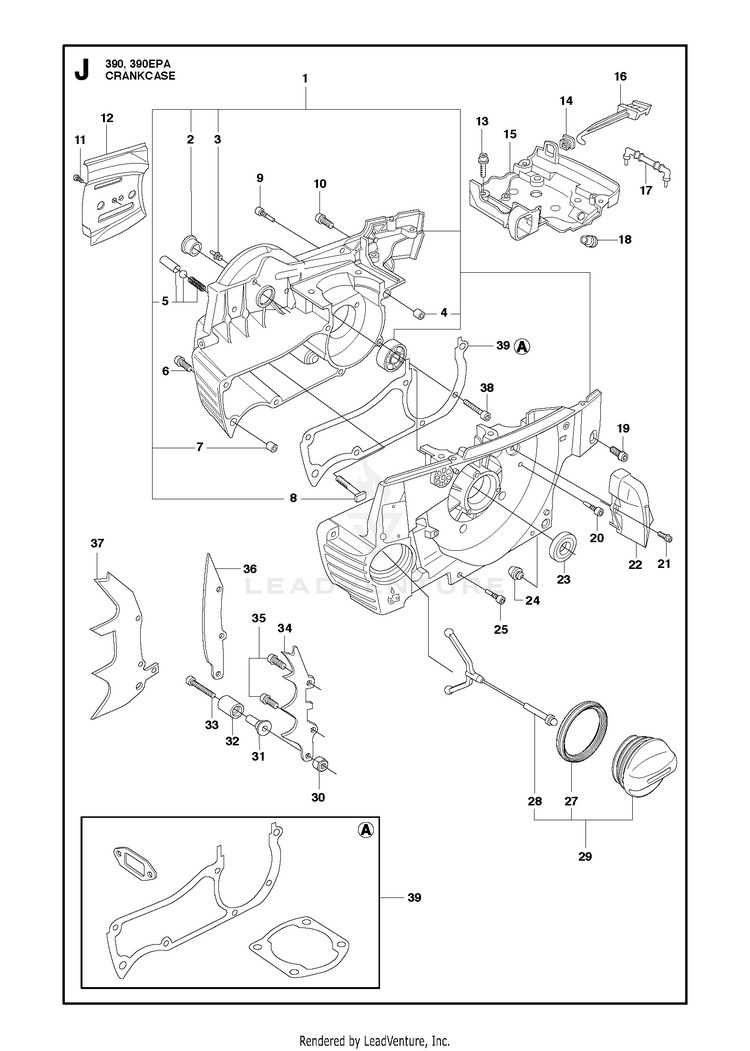

CRANKCASE

...
...
1
CRANKCASE HUS-503991105
...
2
BUSHING . 1 HUS-503967001
...
3
PIN . 1 HUS-503751801
...
4
GUIDE BUSHING . 1 HUS-593806001
...
5
VALVE . 1 HUS-537040301
...
6
SCREW HUS-503218874
...
7
GUIDE BUSHING . 1 HUS-593806001
...
8
BOLT . 1 HUS-537051301
...
9
SCREW HUS-503749301
...
10
SCREW HUS-503218874
...
11
SCREW HUS-503212810
...
12
PLATE HUS-537046601
...
13
SCREW HUS-503200712
...
14
GROMMET HUS-503734401
...
15
BASE HUS-537001402
...
16
CHOKE CONTROL HUS-537001201
...
17
SUPPORT HUS-579468901
...
18
GROMMET HUS-537095401
...
19
SCREW HUS-503218874
...
20
SCREW HUS-503749301
...
21
SCREW HUS-503200712
...
22
JET HUS-537007901
...
23
SEALING RING HUS-503260205
...
24
BUFFER HUS-503846101
...
25
SCREW HUS-503749301
...
27
SEALING . 29 HUS-589241101
...
28
TANK LOCK . 29 HUS-503578901
...
29
TANK CAP HUS-537215207
...
30
NUT HUS-503222401
...
31
CHAIN CATCHER HUS-537089201
...
32
SPACER HUS-537024401
...
33
SCREW HUS-503200230
...
34
FELLING DOG HUS-537017101
...
35
SCREW HUS-503212616
...
36
BUMPER HUS-537042901
...
37
FELLING DOG WA HUS-537017201
...
38
SCREW HUS-503201635
...
39
GASKET SET A Set of gaskets HUS-537033901
