Husqvarna 390 (2013-09) Chain Saw

Model: 390 (2013-09)

Back To Assemblies

Save Part Not Listed?
product name

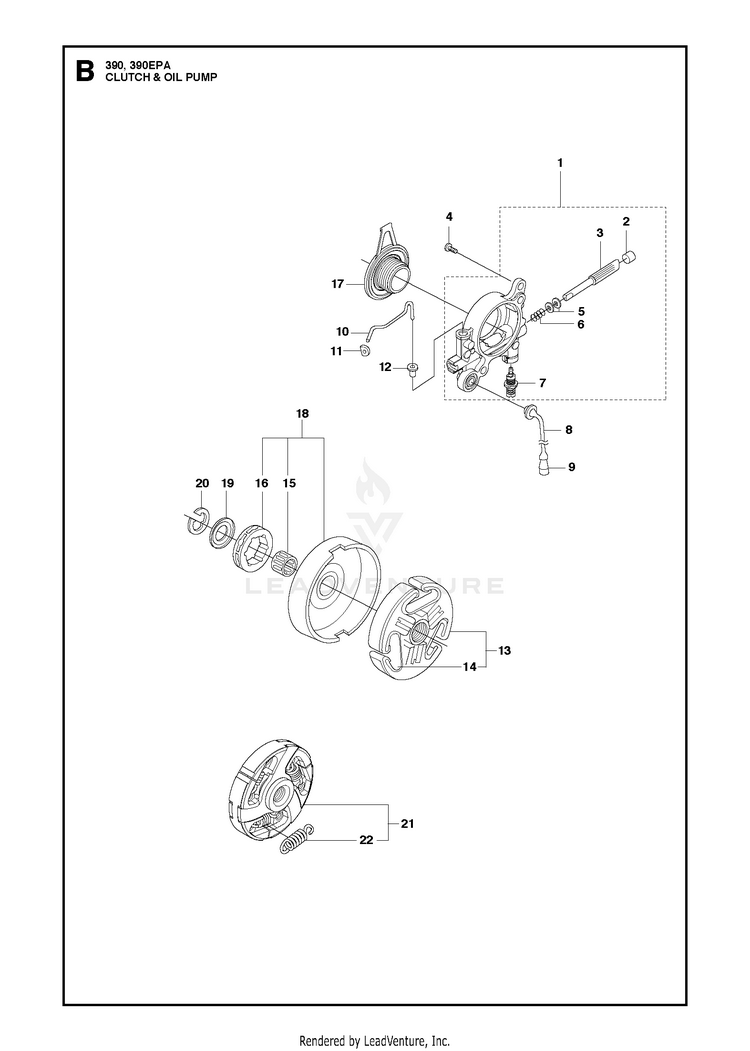

CLUTCH OIL PUMP

...
...
1
OIL PUMP HUS-503521305
...
2
PLUG . 1 HUS-503624901
...
3
PUMP PISTON . 1 HUS-537106401
...
4
SCREW MC6S 5X16 HUS-725532955
...
5
WASHER 6.1X9 . 1 HUS-503230004
...
6
SPRING . 1 HUS-501615801
...
7
INSERT . 1 HUS-537396002
...
8
OIL HOSE HUS-503426701
...
9
OIL SCREEN HUS-501544102
...
10
PIPE HUS-503774301
...
11
GROMMET HUS-503644701
...
12
SEAL HUS-504300026
...
13
CLUTCH ASSEMBLY HUS-537257501
...
14
CLUTCH SPRING . 13 HUS-503975101
...
15
CLUTCH DRUM BEARING . 18 HUS-503432001
...
16
68210/RIM 3 /8 x7T. 18 HUS-640200214
...
16
22273 POWER MATE RIM 3 /8 x8T. 18 HUS-640200216
...
16
22270 RIMSPROCKET 404x7. 18 HUS-501597902
...
17
Pinions HUS-582270106
...
18
CLUTCH ASSY 3 /8 x7T HUS-537137971
...
18
CLUTCH ASSY 3 /8 x8T HUS-537137972
...
18
CLUTCH DRUM ASSY .404 404x7 HUS-537137902
...
19
WASHER HUS-503752401
...
20
RETAINING RING HUS-503272101
...
21
CLUTCH ASSEMBLY HUS-537257501
...
22
CLUTCH SPRING . 21 HUS-503145101
