Husqvarna 390 (2013-09) Chain Saw

Model: 390 (2013-09)

Back To Assemblies

Save Part Not Listed?
product name

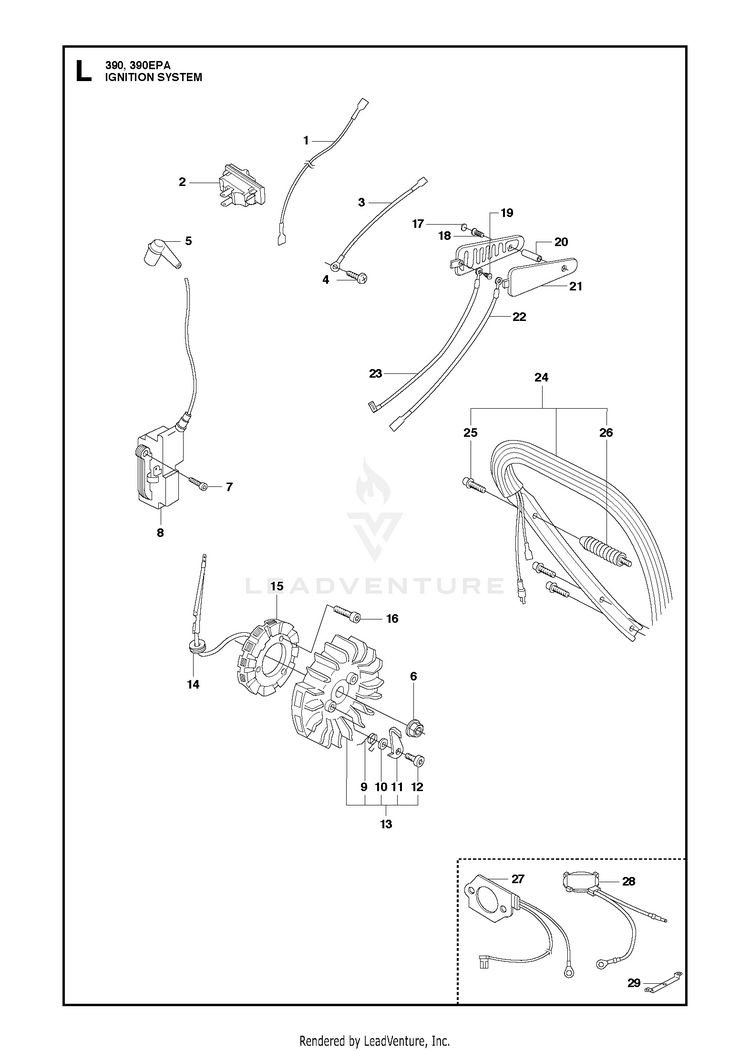

IGNITION SYSTEM

...
...
1
CABLE HUS-503626102
...
2
START/STOP SWITCH HUS-503718201
...
2
SWITCH (G) G HUS-503718202
...
3
CABLE HUS-503897601
...
4
SCREW HUS-503212810
...
5
SPARK PLUG CONN. KIT HUS-501485402
...
6
NUT W/ WASHER HUS-503220401
...
7
SCREW HUS-503200220
...
8
IGNITION MODULE Speed limited HUS-510114902
...
9
SPRING . 13 HUS-501673501
...
10
WASHER . 13 HUS-503230042
...
11
PAWL . 13 HUS-537015501
...
12
SCREW M5X14 . 13 HUS-501819901
...
13
FLYWHEEL HUS-537051605
...
13
FLYWHEEL G HUS-537051606
...
14
GROMMET G HUS-501271302
...
15
GENERATOR G HUS-537071802
...
16
SCREW MC6S 4X12 G HUS-725529155
...
17
WASHER G HUS-501795102
...
18
SCREW 3X10 G HUS-724322405
...
19
SCREW G HUS-503212906
...
20
SPACER G HUS-537052601
...
21
HANDLE G HUS-501629308
...
22
CABLE G HUS-537040601
...
23
CABLE G HUS-537040501
...
24
FRONT HANDLE HEATED G HUS-503986672
...
25
SCREW . 24 HUS-503218874
...
26
VIBRATION ABSORBER . 24 HUS-503684503
...
27
FOIL ELEMENT HUS-537065302
...
28
THERMOSTAT HUS-537189801
...
29
HOLDER HUS-537063201
