Husqvarna 390 (2013-09) Chain Saw

Model: 390 (2013-09)

Back To Assemblies

Save Part Not Listed?
product name

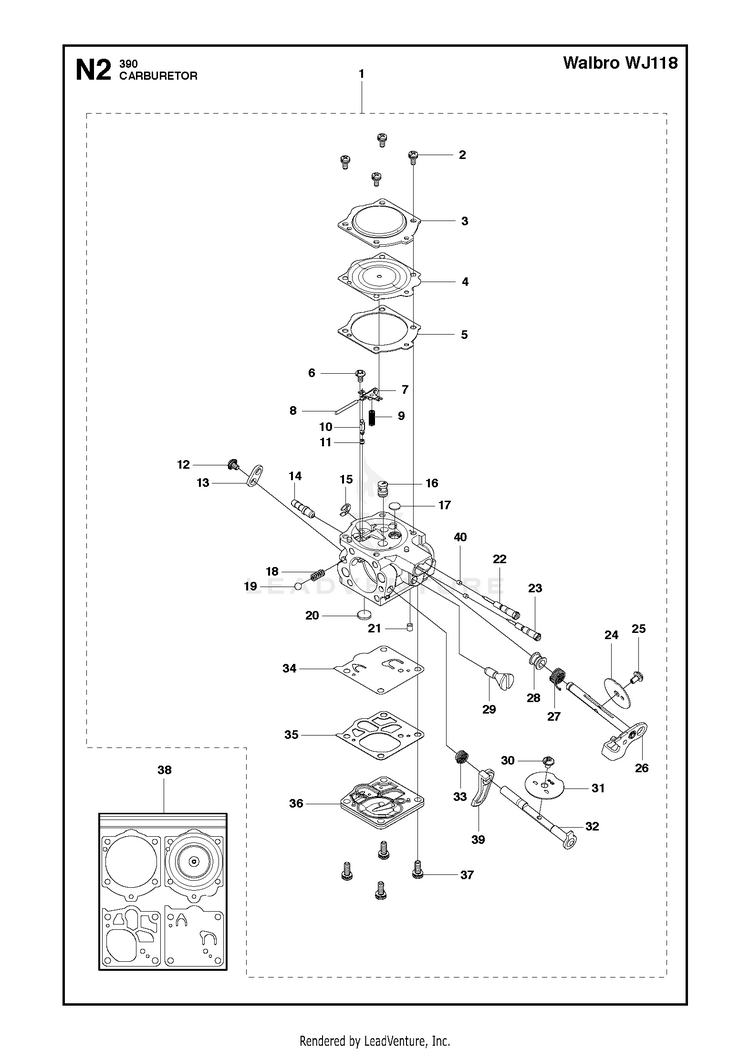

CARBURETOR

...
...
1
CARBURETOR HUS-501355401
...
2
SCREW . 1 HUS-503584601
...
3
DIAPHRAM COVER . 1 HUS-505316702
...
4
MAIN DIAPHRAGM . 1 38 HUS-505316715
...
5
GASKET . 1 38 HUS-501467501
...
6
SCREW . 1 HUS-505316717
...
7
LEVER . 1 HUS-505316734
...
8
PIN . 1 HUS-505316731
...
9
SPRING . 1 HUS-504791201
...
10
INLET NEEDLE . 1 HUS-503563401
...
11
SEAT IN VALVE PLATED . 1 HUS-503592301
...
12
SCREW . 1 HUS-501468701
...
13
LEVER CHOKE . 1 HUS-504790701
...
14
COVER PUMP . 1 HUS-504790301
...
15
CLIPS . 1 HUS-502119801
...
16
NOZZLE . 1 HUS-504790901
...
17
PLUG WELCH . 1 HUS-504790801
...
18
SPRING . 1 HUS-503117701
...
19
BALL . 1 HUS-503117101
...
20
FUEL INLET SCREEN . 1 HUS-501666101
...
21
PLUG FRICTION . 1 HUS-503800501
...
22
NEEDLE IDLE Low speed. 1 HUS-505509101
...
23
NEEDLE HIGH High speed. 1 HUS-505509201
...
24
THROTTLE FLAP . 1 HUS-503800001
...
25
SCREW . 1 HUS-544111501
...
26
SHAFT ASSY THROTTLE . 1 HUS-504790401
...
27
SPRING . 1 HUS-576138201
...
28
BUSHING . 1 HUS-502103101
...
29
SCREW . 1 HUS-504791101
...
30
SCREW . 1 HUS-501468701
...
31
CHOKE FLAP . 1 HUS-505316707
...
32
SHAFT ASSY . 1 HUS-504790501
...
33
SPRING CHOKE . 1 HUS-504791501
...
34
DIAPHRAM PUMP . 1 38 HUS-544897201
...
35
GASKET . 1 38 HUS-503117201
...
36
COVER PUMP . 1 HUS-504790301
...
37
SCREW W/ WASHER . 1 HUS-503117501
...
38
DIAPHRAGM SET Set of gaskets HUS-522591801
...
39
LEVER . 1 HUS-537409201
...
40
. 1 HUS-544898101
