Husqvarna 385 XP (20051000001-20064000000) Chain Saw

Model: 385 XP (20051000001-20064000000)

Back To Assemblies

Save Part Not Listed?
product name

FUEL TANK

...
...
537 03 34-01
HANDLE HUS-537033401
...
537 09 93-01
CONNECTOR HUS-537099301
...
503 55 66-01
THROTTLE CATCH HUS-503556601
...
537 21 50-01
SEALING HUS-589241101
...
720 12 72-20
PIN CPH8 4X20 HUS-720127220
...
537 09 22-01
TANK VALVE HUS-537092201
...
503 73 64-01
SPRING HUS-503736401
...
503 82 98-01
THROTTLE TRIGGER HUS-503829801
...
537 01 79-01
VIBRATION ABSORBER HUS-537017901
...
720 12 40-20
PIN HUS-720182520
...
537 01 75-01
VIBRATION ABSORBER HUS-537017501
...
503 44 32-01
KIT FUEL FILTER HUS-591375401
...
537 21 52-02
TANK CAP HUS-537215207
...
503 21 88-20
SCREW HUS-503218874
...
537 00 88-01
PROTECTOR HUS-537008801
...
503 71 76-01
WIRE HUS-503717601
...
503 57 76-02
KIT HOSE SPIRAL 300 HUS-591375201
...
503 57 89-01
TANK LOCK HUS-503578901
...
501 76 83-05
FUEL HOSE STRAIGHT 105 HUS-581756106
...
537 00 03-71
TANK UNIT HUS-537000371
...
501 49 27-03
COVER HUS-501492703

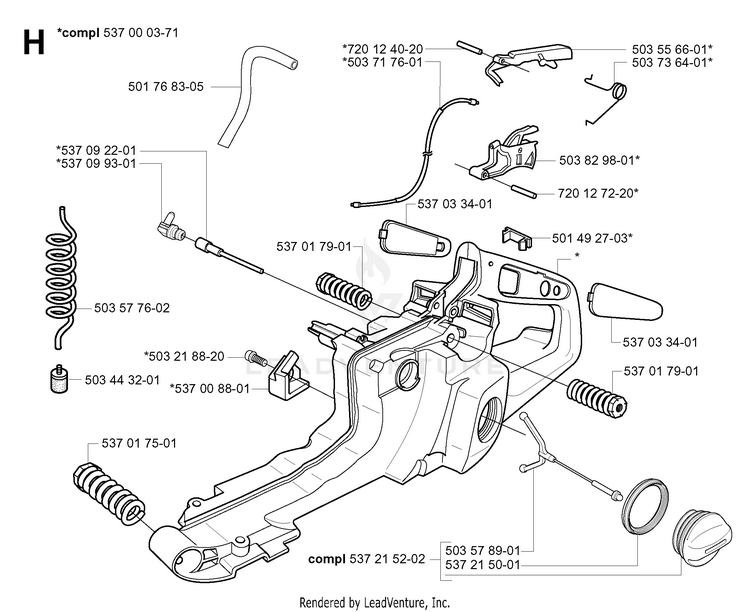

Schematic Image Zoomed
