Husqvarna 385 XP (20051000001-20064000000) Chain Saw

Model: 385 XP (20051000001-20064000000)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

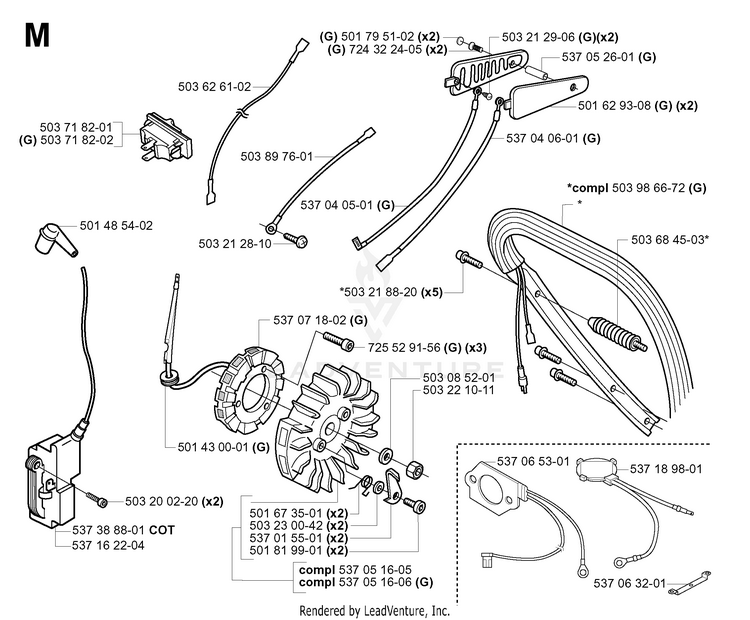

ELECTRICAL

...
...
503 62 61-02
CABLE HUS-503626102
...
537 06 32-01
HOLDER HUS-537063201
...
503 21 29-06
SCREW G HUS-503212906
...
537 38 88-01
IGNITION MODULE COT HUS-510114902
...
501 79 51-02
WASHER G HUS-501795102
...
503 22 10-11
NUT M8X1 HUS-503221011
...
503 71 82-02
SWITCH (G) G HUS-503718202
...
501 43 00-01
GROMMET G HUS-501430001
...
501 62 93-08
HANDLE G HUS-501629308
...
537 05 16-05
FLYWHEEL HUS-537051605
...
503 98 66-72
FRONT HANDLE HEATED G HUS-503986672
...
503 20 02-20
SCREW HUS-503200220
...
537 16 22-04
IGNITION MODULE HUS-544047101
...
537 04 05-01
CABLE G HUS-537040501
...
537 05 16-06
FLYWHEEL G HUS-537051606
...
501 81 99-01
SCREW M5X14 HUS-501819901
...
537 07 18-02
GENERATOR G HUS-537071802
...
503 89 76-01
CABLE HUS-503897601
...
537 01 55-01
PAWL HUS-537015501
...
503 08 52-01
WASHER HUS-503085201
...
725 52 91-56
SCREW MC6S 4X12 G HUS-725529155
...
501 67 35-01
SPRING HUS-501673501
...
537 18 98-01
THERMOSTAT HUS-537189801
...
503 71 82-01
START/STOP SWITCH HUS-503718201
...
503 21 28-10
SCREW HUS-503212810
...
537 05 26-01
SPACER G HUS-537052601
...
537 06 53-01
ELEMENT HUS-537065301
...
503 68 45-03
VIBRATION ABSORBER HUS-503684503
...
724 32 24-05
SCREW 3X10 G HUS-724322405
...
503 23 00-42
WASHER HUS-503230042
...
503 21 88-20
SCREW HUS-503218874
...
537 04 06-01
CABLE G HUS-537040601
...
501 48 54-02
SPARK PLUG CONN. KIT HUS-501485402
