Husqvarna 385 XP (20051000001-20064000000) Chain Saw

Model: 385 XP (20051000001-20064000000)

Back To Assemblies

Save Part Not Listed?
product name

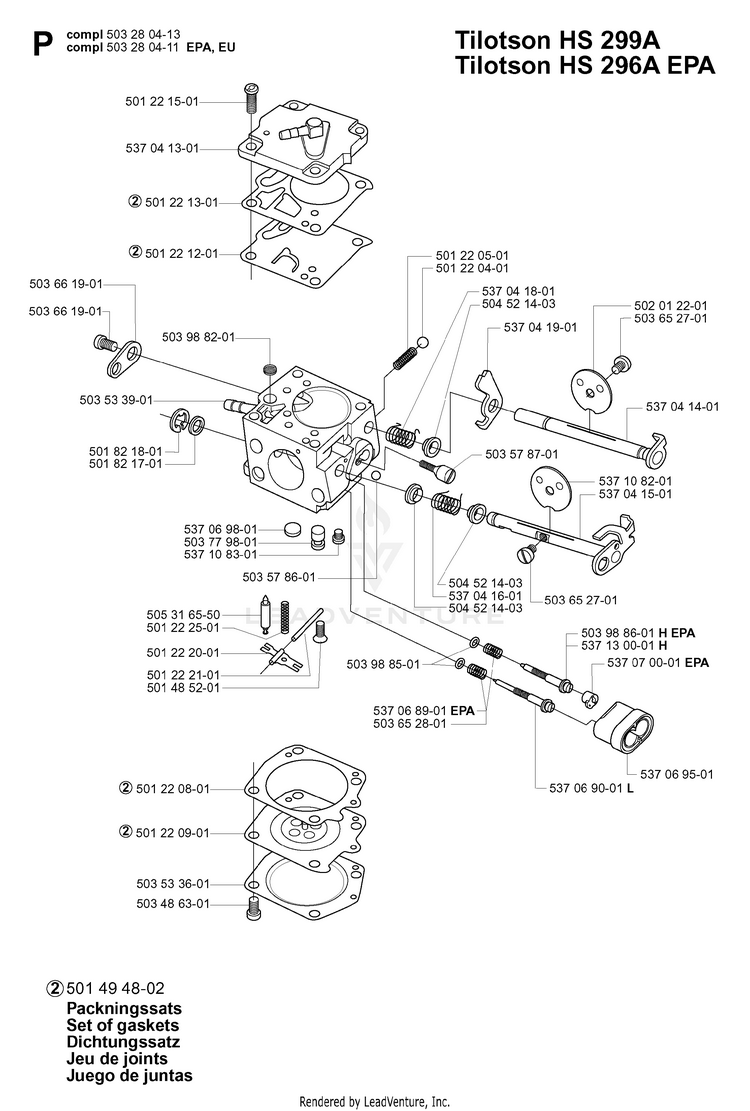

CARBURETOR DETAILS

...
...
503 57 86-01
BALL HUS-503578601
...
503 57 87-01
SCREW HUS-503578701
...
501 22 12-01
FUEL PUMP DIAPHRAGM 501 49 48-02 PACKNINGSSATS SET OF GASKETS HUS-501221201
...
501 22 09-01
METERING DIAPHRAGM 501 49 48-02 PACKNINGSSATS SET OF GASKETS HUS-501220901
...
501 22 13-01
GASKET, PUMP SIDE 501 49 48-02 PACKNINGSSATS SET OF GASKETS HUS-501221301
...
537 13 00-01
NEEDLE HIGH SPEED H HUS-537130001
...
503 65 27-01
SCREW HUS-503652701
...
501 22 08-01
GASKET, METERING SIDE 501 49 48-02 PACKNINGSSATS SET OF GASKETS HUS-501220801
...
503 53 36-01
COVER HUS-503533601
...
501 22 04-01
BALL HUS-501220401
...
503 48 63-01
COVER SCREW HUS-503486301
...
503 66 19-01
LEVER HUS-503661901
...
503 65 28-01
Spring HUS-503652801
...
537 06 90-01
LOWSPEEDNEEDLE L HUS-537069001
...
505 31 65-50
INLET NEEDLE HUS-505316550
...
537 10 82-01
CHOKEFLAP HUS-537108201
...
537 04 18-01
SPRING HUS-537041801
...
503 53 39-01
NIPPLE HUS-503533901
...
503 28 04-13
CARBURETOR HUS-501355401
...
537 04 15-01
THROTTLESHAFT HUS-537041501
...
504 52 14-03
BUSHING HUS-504521403
...
537 06 89-01
SPRING EPA HUS-537068901
...
537 10 83-01
JET HUS-537108301
...
501 22 20-01
LEVER HUS-501222001
...
537 04 16-01
SPRING HUS-537041601
...
503 77 98-01
VALVE HUS-503779801
...
501 22 05-01
SPRING HUS-501220501
...
501 22 15-01
SCREW HUS-501221501
...
503 98 86-01
NEEDLES HIGH SPEED H EPA HUS-503988601
...
537 04 13-01
COVER HUS-537041301
...
501 22 21-01
SHAFT HUS-501222101
...
537 04 19-01
LEVER HUS-537041901
...
503 98 82-01
SCREEN HUS-503988201
...
503 28 04-11
CARBURETOR WJ-116A EPA, EU HUS-531440101
...
537 06 98-01
PLUG HUS-537069801
...
537 07 00-01
CAP EPA HUS-537070001
...
501 48 52-01
SCREW HUS-501485201
...
501 82 17-01
WASHER HUS-501821701
...
501 82 18-01
RETAINING RING HUS-501821801
...
503 98 85-01
O-RING HUS-503988501
...
502 01 22-01
CHOKE FLAP HUS-502012201
...
537 06 95-01
CAP HUS-537069501
...
501 22 25-01
SPRING HUS-501222501
...
537 04 14-01
CHOKESHAFT HUS-537041401
