Husqvarna 385 XP (20051000001-20064000000) Chain Saw

Model: 385 XP (20051000001-20064000000)

Back To Assemblies

Save Part Not Listed?
product name

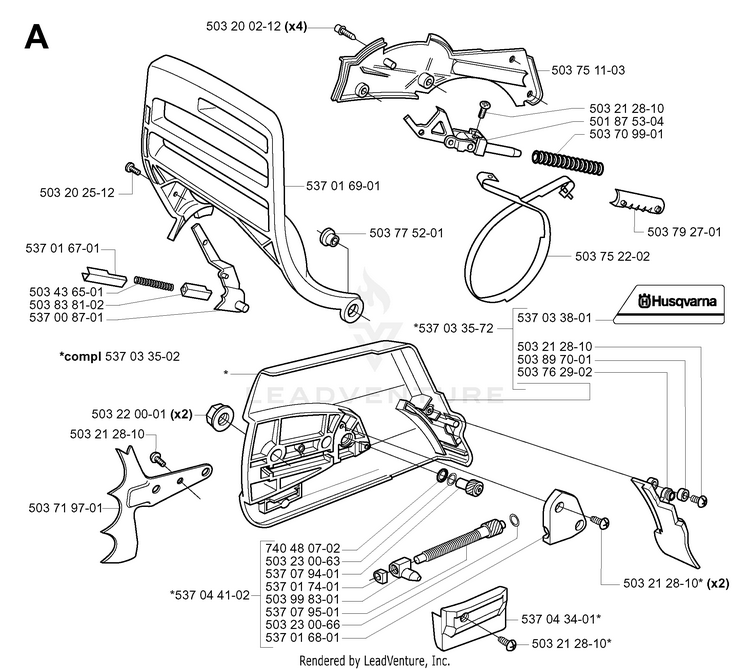

CHAIN BRAKE 2

...
...
503 75 22-02
BRAKE BAND HUS-503752202
...
503 23 00-63
WASHER HUS-503230063
...
503 21 28-10
SCREW HUS-503212810
...
503 70 99-01
BRAKE SPRING HUS-503709902
...
503 79 27-01
SUPPORT HUS-503792702
...
503 77 52-01
BUSHING HUS-503775201
...
503 21 28-10
SCREW HUS-503212810
...
537 03 38-01
DECAL HUS-537033803
...
503 43 65-01
LOCK SPRING HUS-503436501
...
501 87 53-04
KNEE JOINT HUS-501875304
...
537 03 35-72
CLUTCH COVER HUS-537033572
...
503 20 25-12
SCREW HUS-503202512
...
503 76 29-02
PROTECTOR HUS-503762902
...
537 04 41-02
KIT-CHAIN TENSIONER HUS-537044102
...
537 07 95-01
WORM SCREW / ADJUSTER HUS-537079502
...
537 01 67-01
PROTECTOR HUS-537016701
...
537 04 34-01
CHAIN GUIDE HUS-537043401
...
740 48 07-02
O-RING HUS-740480702
...
537 01 68-01
COVER HUS-537016801
...
503 83 81-02
CATCH HUS-503838102
...
503 89 70-01
WASHER HUS-503897001
...
537 07 94-01
WORM WHEEL HUS-537079402
...
503 20 02-12
SCREW HUS-503200712
...
537 00 87-01
BRAKE LEVER HUS-537008701
...
503 75 11-03
COVER HUS-503751103
...
537 01 69-01
HAND GUARD HUS-537016901
...
503 22 00-01
NUT M8 FLANGE HUS-503220001
...
503 23 00-66
WASHER HUS-503230066
...
503 99 83-01
PAWL HUS-503998301
...
537 03 35-02
Covers HUS-537033508
...
537 01 74-01
SLEEVE HUS-537017401
...
503 71 97-01
SPIKE OUTER HUS-503719701
