Husqvarna 385 XP (20051000001-20064000000) Chain Saw

Model: 385 XP (20051000001-20064000000)

Back To Assemblies

Save Part Not Listed?
product name

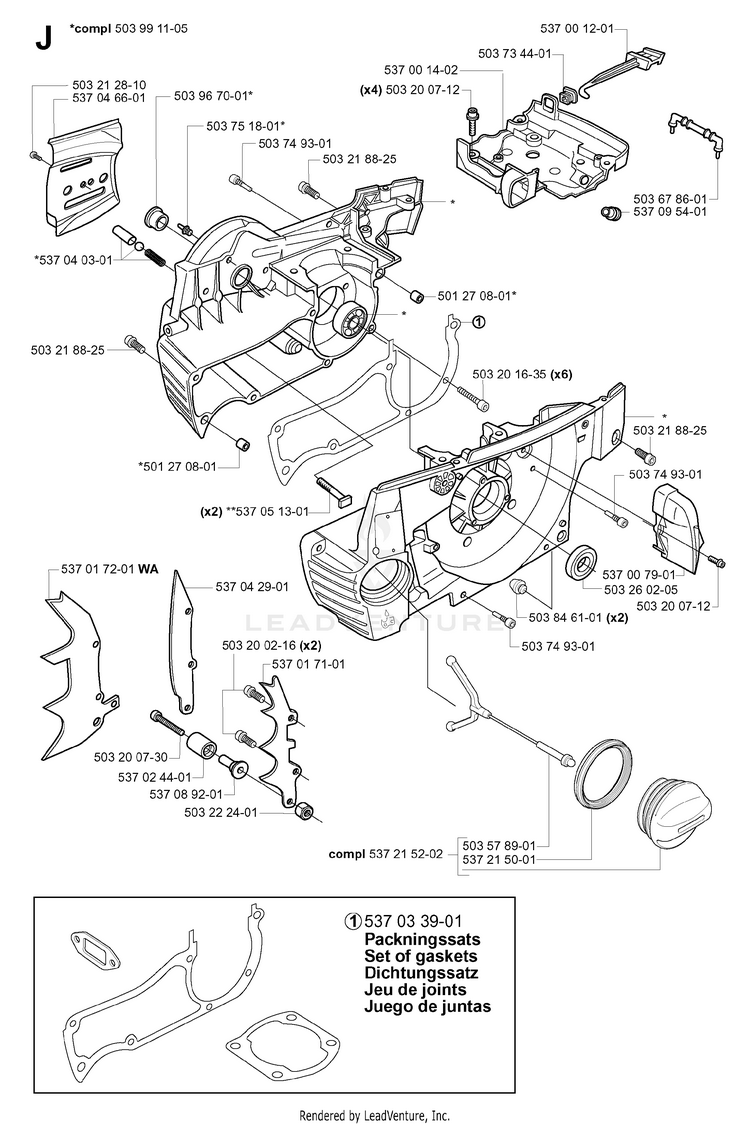

CRANKCASE

...
...
537 21 50-01
SEALING HUS-589241101
...
503 74 93-01
SCREW HUS-503749301
...
537 09 54-01
GROMMET HUS-537095401
...
503 20 07-12
SCREW HUS-503200712
...
537 08 92-01
CHAIN CATCHER HUS-537089201
...
537 04 03-01
VALVE HUS-537040301
...
501 27 08-01
GUIDE BUSHING HUS-593806001
...
503 21 88-25
SCREW HUS-503218876
...
503 99 11-05
CRANKCASE HUS-503991105
...
503 20 07-12
SCREW HUS-503200712
...
537 00 79-01
JET HUS-537007901
...
537 04 66-01
PLATE HUS-537046601
...
537 04 29-01
BUMPER HUS-537042901
...
537 21 52-02
TANK CAP HUS-537215207
...
503 67 86-01
SUPPORT HUS-579468901
...
503 75 18-01
PIN HUS-503751801
...
537 05 13-01
BOLT HUS-537051301
...
503 26 02-05
SEALING RING HUS-503260205
...
503 73 44-01
GROMMET HUS-503734401
...
537 02 44-01
SPACER HUS-537024401
...
503 22 24-01
NUT HUS-503222401
...
503 84 61-01
BUFFER HUS-503846101
...
503 20 07-30
SCREW HUS-503200230
...
503 57 89-01
TANK LOCK HUS-503578901
...
503 20 02-16
SCREW HUS-503200216
...
503 21 28-10
SCREW HUS-503212810
...
537 01 71-01
FELLING DOG HUS-537017101
...
503 20 16-35
SCREW HUS-503201635
...
537 00 12-01
CHOKE CONTROL HUS-537001201
...
537 01 72-01
FELLING DOG WA HUS-537017201
...
537 00 14-02
BASE HUS-537001402
...
503 96 70-01
BUSHING HUS-503967001
