Husqvarna 372 XP/XPG X-TORQ Chain Saw

Model: 372 XP/XPG X-TORQ

Back To Assemblies

Save Part Not Listed?
product name

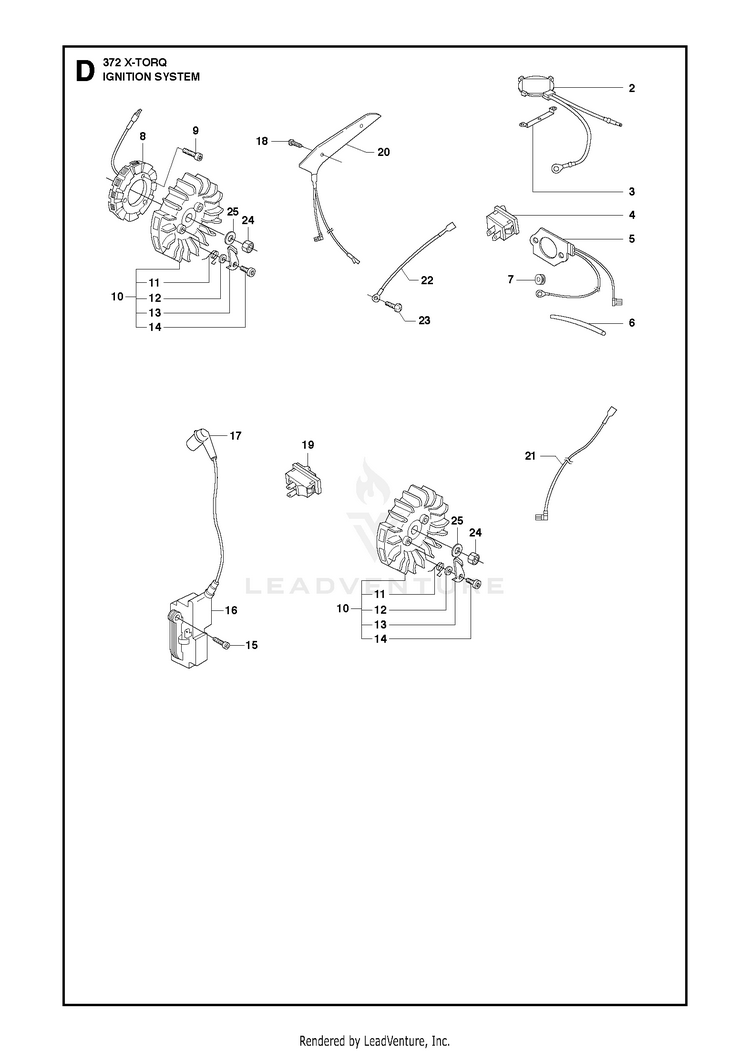

IGNITION SYSTEM 4

...
...
10
FLYWHEEL HUS-537051605
...
18
NEEDS DESCRIPTION HUS-586505401
...
13
PAWL HUS-537015501
...
16
IGNITION MODULE DM51 COT HUS-588937403
...
7
GROMMET G HUS-501430001
...
23
SCREW CITXPANT HUS-525887402
...
10
FLYWHEEL G HUS-537051606
...
12
WASHER HUS-503230042
...
15
SCREW ITXSCM M5X20 T27 12.9 T HUS-582029701
...
4
SWITCH G HUS-503554901
...
22
CABLE HUS-503897601
...
25
WASHER 8.4X16 HUS-503230101
...
17
SPARK PLUG CONN. KIT HUS-501485402
...
6
TUBE G HUS-503238565
...
3
HOLDER G HUS-537063201
...
14
SCREW M5X14 HUS-501819901
...
20
PLATE (G) G HUS-503705901
...
5
FOIL ELEMENT G HUS-537065302
...
21
WIRE HUS-503626101
...
2
THERMOSTAT G HUS-537189801
...
19
START/STOP SWITCH HUS-503718201
...
8
GENERATOR G HUS-537071802
...
11
SPRING HUS-501673501
...
9
NEEDS DESCRIPTION G HUS-586438502
...
24
NUT M8X1 HUS-503221011
