Husqvarna 372 XP/XPG X-TORQ Chain Saw

Model: 372 XP/XPG X-TORQ

Back To Assemblies

Save Part Not Listed?
product name

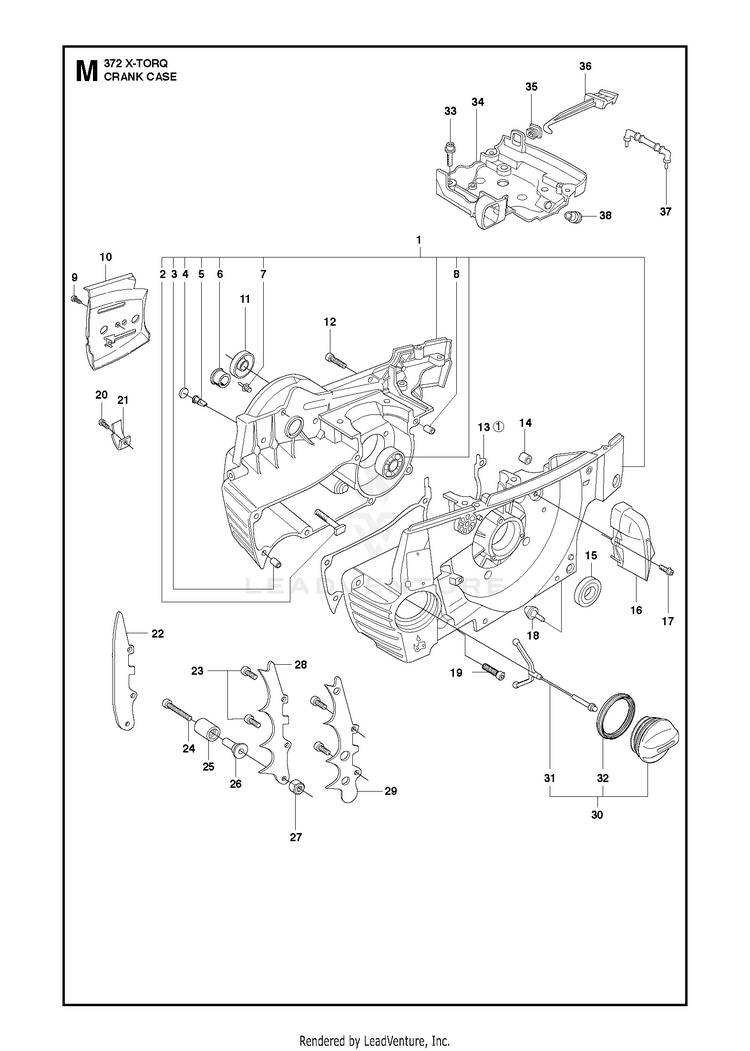

CRANKCASE

...
...
13
GASKET HUS-503627201
...
19
SCREW HUS-503200870
...
10
BAR PLATE HUS-537013701
...
35
GROMMET HUS-503734401
...
18
BUFFER HUS-503846101
...
23
SCREW HUS-503212616
...
9
SCREW HUS-503212810
...
17
SCREW HUS-503200712
...
2
BOLT HUS-537051301
...
25
SPACER HUS-537024401
...
29
FELLING DOG HUS-503647902
...
26
CHAIN CATCHER HUS-537089201
...
3
GUIDE BUSHING HUS-593806001
...
34
CARBURETTOR AREA BASE ASSY HUS-597989501
...
31
TANK LOCK HUS-503578901
...
12
SCREW HUS-503749301
...
33
SCREW HUS-503200712
...
6
BUSHING HUS-503967001
...
7
PIN HUS-503751801
...
5
SINTERED BRONZE FILTER HUS-537403502
...
1
CRANKCASE ASSY HUS-503626819
...
38
GROMMET HUS-537095401
...
16
JET HUS-503628401
...
4
VALVE-CHECK (DUCKBILL) HUS-530026119
...
20
SCREW IHSCM HUS-725533165
...
8
GUIDE BUSHING HUS-593806001
...
22
BUMPER HUS-537042901
...
27
NUT HUS-503222401
...
37
SUPPORT HUS-579468901
...
14
PROTECTOR HUS-503857301
...
30
TANK CAP HUS-537215207
...
11
SEAL HUS-503260301
...
28
FELLING DOG HUS-537017101
...
15
SEAL RING HUS-505275719
...
32
SEALING HUS-589241101
...
36
CHOKE HUS-515982201
...
24
SCREW HUS-503200230
...
21
CHAIN CATCHER HUS-501686801
