Husqvarna 372 XP/XPG (20111800001-Current) Chain Saw

Model: 372 XP/XPG (20111800001-Current)

Back To Assemblies

Save Part Not Listed?
product name

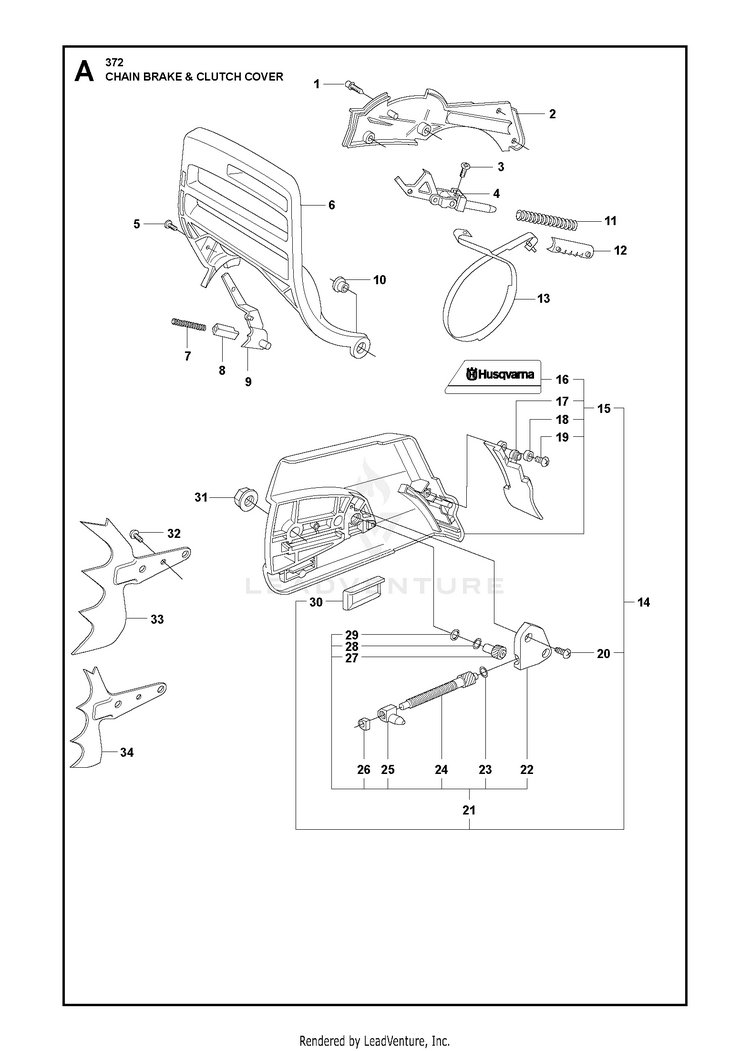

CHAIN BRAKE & CLUTCH COVER

...
...
11
BRAKE SPRING HUS-503709902
...
19
SCREW HUS-503212810
...
12
SUPPORT HUS-503792702
...
20
SCREW HUS-503212810
...
1
SCREW HUS-503200712
...
15
CHAIN BRAKE COVER HUS-537033571
...
24
WORM SCREW / ADJUSTER HUS-537079502
...
2
COVER HUS-503751103
...
32
SCREW HUS-503212810
...
29
O-RING HUS-740480702
...
10
BUSHING HUS-503775201
...
6
HANDGUARD HUS-503764903
...
33
FELLING DOG 372 WRAP HUS-503922701
...
5
SCREW IHSCM M4X12 12.9 TBO HUS-503202602
...
18
WASHER HUS-503897001
...
9
BRAKE LEVER HUS-537008701
...
8
CATCH HUS-503838102
...
14
CLUTCH COVER ASSY ORANGE -CAS HUS-537033507
...
30
CHAIN GUIDE HUS-501517201
...
23
WASHER HUS-503230066
...
3
SCREW HUS-503212810
...
34
SPIKE OUTER HUS-503719701
...
7
LOCK SPRING HUS-503436501
...
27
WORM WHEEL HUS-537079402
...
17
PROTECTOR HUS-503762902
...
22
COVER HUS-537016801
...
16
DECAL HUS-537033803
...
28
WASHER HUS-503230063
...
26
SLEEVE HUS-537017401
...
21
KIT-CHAIN TENSIONER HUS-537044102
...
4
KNEE LINK HUS-501875303
...
13
BRAKE BAND HUS-503752202
...
31
NUT M8 FLANGE HUS-503220001
...
25
PAWL HUS-503998301
