Husqvarna 372 XP/XPG (20070100001-Current) Chain Saw

Model: 372 XP/XPG (20070100001-Current)

Back To Assemblies

Save Part Not Listed?
product name

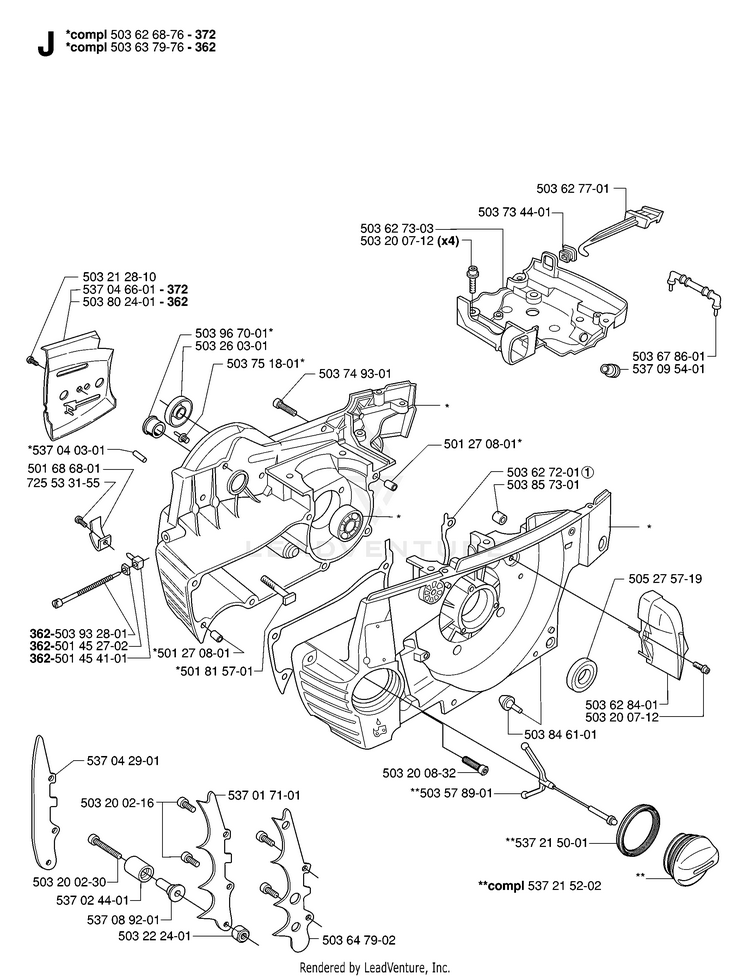

CRANKCASE

...
...
503 64 79-02
FELLING DOG HUS-503647902
...
503 63 79-76
CRANKCASE HUS-503637976
...
537 08 92-01
CHAIN CATCHER HUS-537089201
...
503 62 84-01
JET HUS-503628401
...
501 27 08-01
GUIDE BUSHING HUS-593806001
...
503 73 44-01
GROMMET HUS-503734401
...
503 75 18-01
PIN HUS-503751801
...
503 26 03-01
SEAL HUS-503260301
...
537 21 50-01
SEALING HUS-589241101
...
537 01 71-01
FELLING DOG HUS-537017101
...
503 62 68-76
CRANKCASE ASSY HUS-503626819
...
537 09 54-01
GROMMET HUS-537095401
...
503 80 24-01
Bar Plate HUS-503802401
...
503 20 08-32
SCREW HUS-503200832
...
503 67 86-01
SUPPORT HUS-579468901
...
501 45 41-01
PAWL HUS-501454101
...
505 27 57-19
SEAL RING HUS-505275719
...
503 62 77-01
CONTROL HUS-503627701
...
537 02 44-01
SPACER HUS-537024401
...
501 45 27-02
NUT HUS-501452702
...
503 21 28-10
SCREW HUS-503212810
...
501 68 68-01
CHAIN CATCHER HUS-501686801
...
503 20 07-12
SCREW HUS-503200712
...
537 21 52-02
TANK CAP HUS-537215207
...
503 93 28-01
SCREW HUS-503932801
...
503 74 93-01
SCREW HUS-503749301
...
503 62 72-01
GASKET HUS-503627201
...
503 84 61-01
BUFFER HUS-503846101
...
501 81 57-01
BOLT HUS-501815701
...
503 20 07-12
SCREW HUS-503200712
...
503 22 24-01
NUT HUS-503222401
...
503 85 73-01
PROTECTOR HUS-503857301
...
537 04 29-01
BUMPER HUS-537042901
...
537 04 03-01
VALVE HUS-537040301
...
503 62 73-03
CARBURETTOR AREA BASE ASSY HUS-597989501
...
503 20 02-16
SCREW HUS-503200216
...
725 53 31-55
SCREW ITXSCM HUS-525824902
...
503 96 70-01
BUSHING HUS-503967001
...
537 04 66-01
PLATE HUS-537046601
...
503 20 02-30
SCREW HUS-503200230
...
503 57 89-01
TANK LOCK HUS-503578901
