Husqvarna 372 XP X-TORQ (2013-09) Chain Saw

Model: 372 XP X-TORQ (2013-09)

Back To Assemblies

Save Part Not Listed?
product name

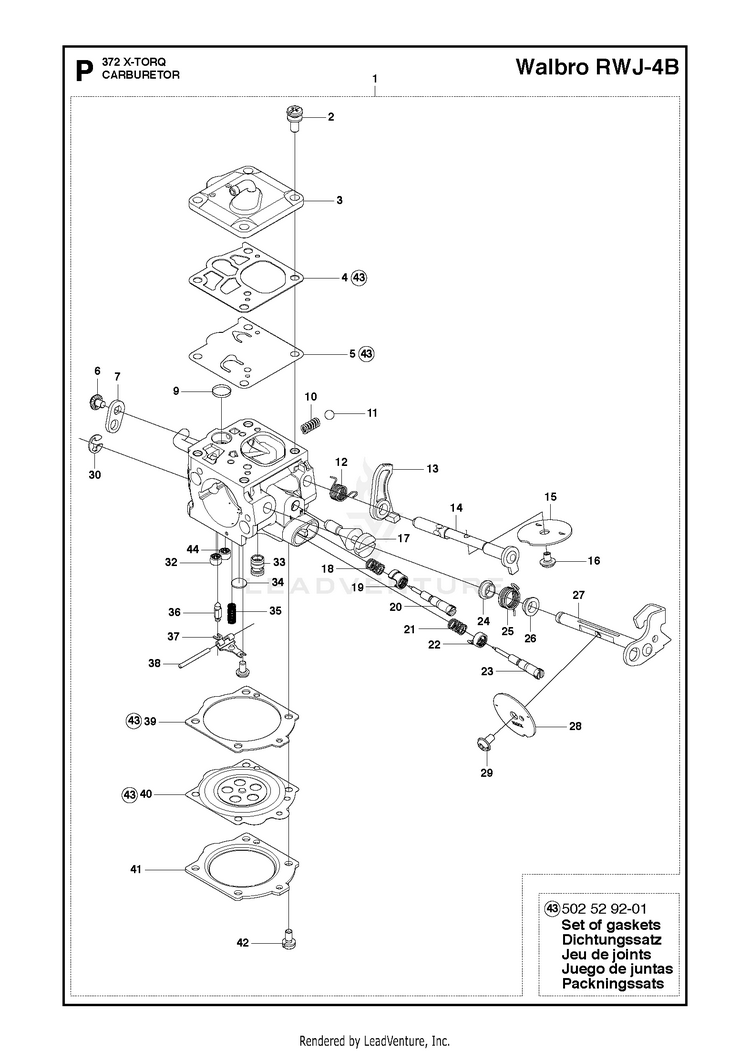

CARBURETOR

...
...
1
CARBURETOR RWJ-4C Walbro RWJ-4B HUS-531439701
...
2
SCREW W/ WASHER . 1 HUS-503117501
...
3
PUMP COVER . 1 HUS-522923501
...
4
GASKET . 1 43 HUS-503117201
...
5
DIAPHRAM PUMP . 1 43 HUS-544897201
...
6
SCREW . 1 HUS-501468701
...
7
LEVER CHOKE . 1 HUS-504790701
...
9
FUEL INLET SCREEN . 1 HUS-501666101
...
10
SPRING . 1 HUS-503117701
...
11
BALL . 1 HUS-503117101
...
12
SPRING CHOKE . 1 HUS-504791501
...
13
LEVER . 1 HUS-537409201
...
14
SHAFT ASSY . 1 HUS-504790501
...
15
VALVE . 1 HUS-544896801
...
16
SCREW . 1 HUS-501468701
...
17
IDLE SPEED SCREW . 1 HUS-585186701
...
18
SPRING . 1 HUS-544971001
...
19
LIMITER CAP . 1 HUS-544970801
...
20
NEEDLE . 1 HUS-522923901
...
21
SPRING . 1 HUS-544971001
...
22
LIMITER CAP . 1 HUS-544970801
...
23
NEEDLE . 1 HUS-544971301
...
24
BUSHING . 1 HUS-502103101
...
25
SPRING . 1 HUS-576138201
...
26
BUSHING . 1 HUS-502103101
...
27
SHAFT ASSY . 1 HUS-522923701
...
28
VALVE THROTTLE . 1 HUS-577657901
...
29
SCREW . 1 HUS-501468701
...
30
CLIPS . 1 HUS-502119801
...
32
CHECK VALVE IDLE JET . 1 HUS-580642301
...
33
MAIN NOZZLE . 1 HUS-577699801
...
34
PLUG WELCH . 1 HUS-504790801
...
35
SPRING . 1 HUS-504791201
...
36
INLET NEEDLE . 1 HUS-503563401
...
37
LEVER . 1 HUS-505316734
...
38
PIN . 1 HUS-505316731
...
39
GASKET . 1 43 HUS-501467501
...
40
MAIN DIAPHRAGM . 1 43 HUS-505316715
...
41
DIAPHRAM COVER . 1 HUS-505316702
...
42
SCREW . 1 HUS-503584601
...
43
GASKET KIT Set of gaskets HUS-502529201
...
44
CHECK VALVE ASSY HUS-577699701
