Husqvarna 372 XP X-TORQ (2013-09) Chain Saw

Model: 372 XP X-TORQ (2013-09)

Back To Assemblies

Save Part Not Listed?
product name

CLUTCH OIL PUMP

...
...
1
OIL PUMP HUS-503521305
...
2
PLUG . 1 HUS-503624901
...
3
PUMP PISTON . 1 HUS-503521501
...
4
WASHER 6.1X9 . 1 HUS-503230004
...
5
SPRING . 1 HUS-501615801
...
6
SPRING CLIP . 1 HUS-503813001
...
7
SCREW . 1 HUS-503811301
...
8
OIL HOSE HUS-503426701
...
9
OIL SCREEN HUS-501544102
...
10
SCREW MC6S 5X16 HUS-725532955
...
11
Pumps HUS-582270107
...
12
PIPE HUS-503774301
...
13
GROMMET HUS-503644701
...
14
SEAL HUS-504300026
...
15
RETAINING RING HUS-503272101
...
16
WASHER HUS-503752401
...
17
CLUTCH DRUM ASSY 3 /8 x7T HUS-586980601
...
17
CLUTCH DRUM ASSY 3 /8 x8T HUS-586980602
...
18
68210/RIM 3 /8 x7T. 17 HUS-640200214
...
18
22273 POWER MATE RIM 3 /8 x8T. 17 HUS-640200216
...
19
CLUTCH DRUM BEARING . 17 HUS-503432001
...
20
CLUTCH ASSY M14X1.25-6H HUS-586798401
...
21
SPRING . 20 HUS-537360601
...
22
WASHER HUS-503230059

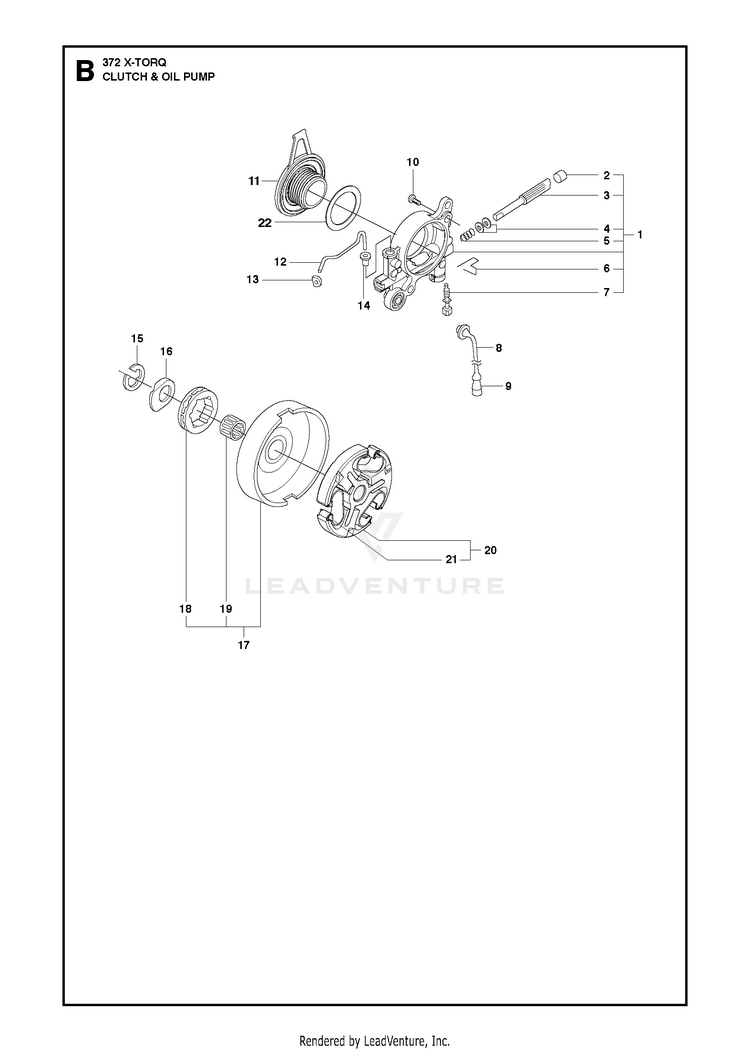

Schematic Image Zoomed
