Husqvarna 372 (2011-05) Chain Saw

Model: 372 (2011-05)

Back To Assemblies

Save Part Not Listed?
product name

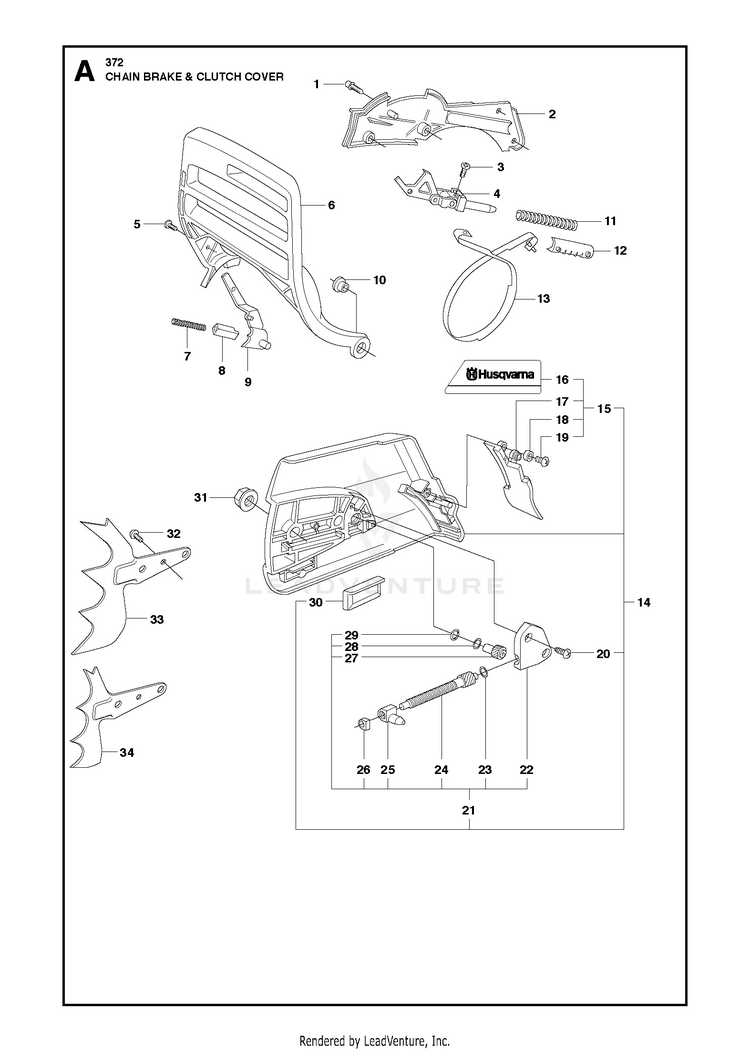

CHAIN BRAKE CLUTCH COVER

...
...
1
SCREW HUS-503200712
...
2
COVER HUS-503751103
...
3
SCREW HUS-503212810
...
4
KNEE LINK HUS-501875303
...
5
SCREW HUS-503202512
...
6
HANDGUARD HUS-503764903
...
7
LOCK SPRING HUS-503436501
...
8
CATCH HUS-503838102
...
9
BRAKE LEVER HUS-537008701
...
10
BUSHING HUS-503775201
...
11
BRAKE SPRING HUS-503709902
...
12
SUPPORT HUS-503792702
...
13
BRAKE BAND HUS-503752202
...
14
CLUTCH COVER ASSY ORANGE -CAS HUS-537033507
...
15
CHAIN BRAKE COVER . 14 HUS-537033571
...
16
DECAL . 14 15 HUS-537033803
...
17
PROTECTOR . 14 15 HUS-503762902
...
18
WASHER . 14 15 HUS-503897001
...
19
SCREW . 14 15 HUS-503212810
...
20
SCREW . 14 HUS-503212810
...
21
KIT-CHAIN TENSIONER . 14 HUS-537044102
...
22
COVER . 14 21 HUS-537016801
...
23
WASHER . 14 21 HUS-503230066
...
24
WORM SCREW / ADJUSTER . 14 21 HUS-537079502
...
25
PAWL . 14 21 HUS-503998301
...
26
SLEEVE . 14 21 HUS-537017401
...
27
WORM WHEEL . 14 21 HUS-537079402
...
28
WASHER . 14 21 HUS-503230063
...
29
O-RING . 14 21 HUS-740480702
...
30
CHAIN GUIDE . 14 HUS-501517201
...
31
NUT M8 FLANGE HUS-503220001
...
32
SCREW HUS-503212810
...
33
FELLING DOG 372 WRAP HUS-503922701
...
34
SPIKE OUTER HUS-503719701
