Husqvarna 372 (2011-05) Chain Saw

Model: 372 (2011-05)

Back To Assemblies

Save Part Not Listed?

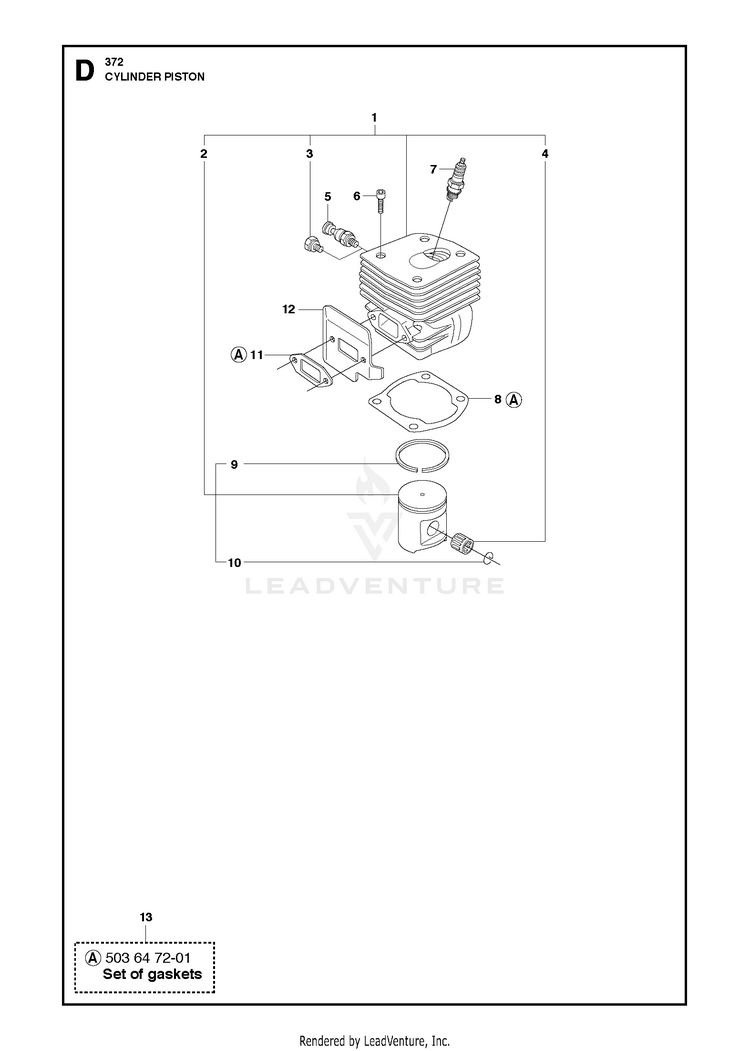

product name

CYLINDER PISTON

...
...
1
CYLINDER KIT HUS-593665502
...
1
CYLINDER KIT 372 EPA EU HUS-593665504
...
2
PISTON ASSY . 1 HUS-503691271
...
2
PISTON CPL 50 MM 372 EPA EU. 1 HUS-503939271
...
3
CYLINDER PLUG . 1 HUS-503552201
...
4
NEEDLE BEARING PISTON PIN 12X1 . 1 HUS-577572401
...
5
DECOMPRESSION VALVE HUS-503715301
...
6
SCREW MC6S 5X25 HUS-725533355
...
7
SPARK PLUG M14X1.25 NGK BPMR7A RCJ 7Y HUS-503235111
...
8
GASKET . 13 HUS-503961501
...
9
PISTON RING . 1 2 HUS-503289042
...
9
PISTON RING 372 EPA EU. 1 2 HUS-576818401
...
10
WRIST PIN CLIP . 1 2 HUS-737431200
...
11
GASKET . 13 HUS-503775901
...
12
DEFLECTOR HUS-503775802
...
13
GASKET SET A Set of gaskets HUS-503647201
Schematic Image Zoomed
