Husqvarna 371 XP (19991800001-Current) Chain Saw

Model: 371 XP (19991800001-Current)

Back To Assemblies

Save Part Not Listed?
product name

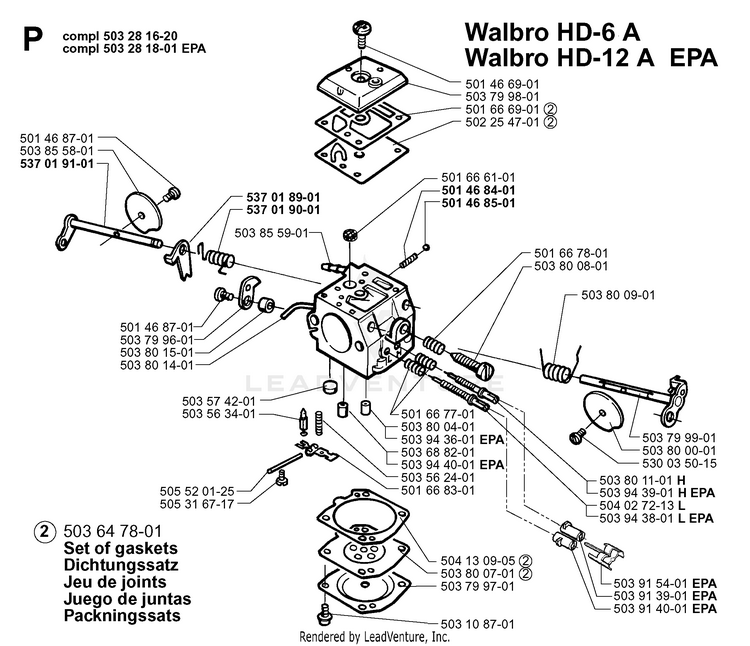

CARBURETOR DETAILS

...
...
530 03 50-15
SCREW SHUTTERS HUS-530035015
...
503 85 58-01
CHOKE FLAP HUS-503855801
...
503 80 11-01
SCREW H HUS-503801101
...
504 13 09-05
GASKET 503 64 78-01 SET OF GASKETS HUS-504130905
...
503 57 42-01
WELCH PLUG HUS-503574201
...
503 28 16-20
CARBRETOR HD-12C H372 HUS-536033701
...
503 94 38-01
ADJUSTING SCREW L EPA HUS-503943801
...
503 56 34-01
INLET NEEDLE HUS-503563401
...
503 91 54-01
CAP EPA HUS-503915401
...
503 80 07-01
GASKET 503 64 78-01 SET OF GASKETS HUS-503800701
...
537 01 91-01
CHOKE SHAFT HUS-537019101
...
501 66 69-01
GASKET, PUMP SIDE 503 64 78-01 SET OF GASKETS HUS-501666901
...
501 46 69-01
SCREW HUS-501466901
...
505 31 67-17
SCREW HUS-505316717
...
501 66 61-01
FUEL INLET SCREEN HUS-501666101
...
503 79 96-01
LEVER HUS-503799601
...
503 94 40-01
JET EPA HUS-503944001
...
503 68 82-01
JET HUS-503688201
...
504 02 72-13
IDLING SCREW L HUS-504027213
...
503 80 00-01
THROTTLE FLAP HUS-503800001
...
503 85 59-01
RP NIPPLE HUS-503855901
...
501 46 85-01
BALL HUS-501468501
...
503 79 97-01
IMPULSE COVER HUS-537077601
...
503 94 39-01
IDLE SCREW H EPA HUS-503943901
...
503 80 14-01
TUBE HUS-503801401
...
503 80 15-01
BUSHING HUS-503801501
...
501 46 87-01
SCREW HUS-501468701
...
503 91 39-01
LIMITER CAP EPA HUS-503913901
...
501 66 83-01
LEVER HUS-501668301
...
503 79 99-01
SHAFT HUS-503799901
...
501 66 77-01
SPRING HUS-501667701
...
537 01 89-01
LEVER HUS-537018901
...
503 91 40-01
LIMITER CAP EPA HUS-503914001
...
503 28 18-01
CARBRETOR HD-12C H372 EPA HUS-536033701
...
503 79 98-01
COVER HUS-503799801
...
503 94 36-01
JET EPA HUS-503943601
...
501 46 84-01
SPRING HUS-501468401
...
537 01 90-01
SPRING HUS-537019001
...
501 66 78-01
IDLE SCREW SPRING HUS-530035121
...
505 52 01-25
FULCRUM PIN HUS-505520125
...
503 80 09-01
SPRING HUS-503800901
...
503 56 24-01
SPRING HUS-503562401
...
502 25 47-01
PUMP DIAPHRAGM 503 64 78-01 SET OF GASKETS HUS-502254701
...
503 80 04-01
NOZZLE HUS-503800401
...
503 80 08-01
SCREW HUS-503800801
...
503 10 87-01
SCREW HUS-503584601
