Husqvarna 365 H Chain Saw

Model: 365 H

Back To Assemblies

Save Part Not Listed?
product name

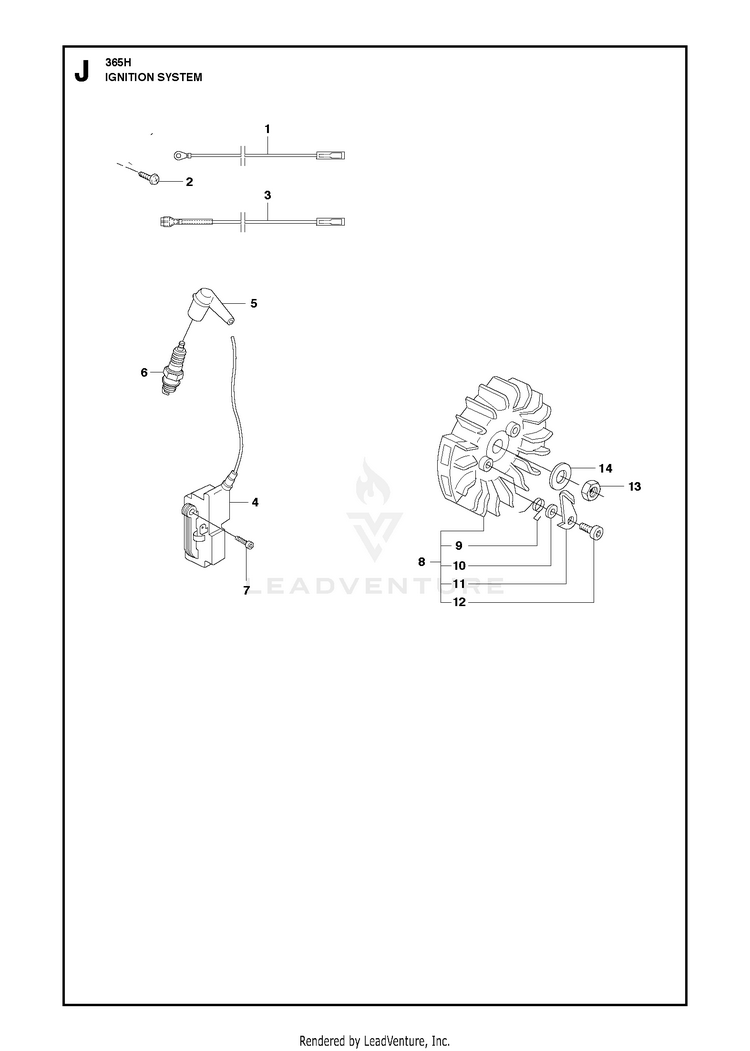

IGNITION SYSTEM 6

...
...
13
NUT M8X1 HUS-503221011
...
7
SCREW IHSCM M5X20 12.9 TBO SE HUS-586289301
...
12
SCREW M5X14 HUS-501819901
...
14
WASHER 8.4X16 HUS-503230101
...
1
CABLE HUS-544118401
...
8
FLYWHEEL HUS-537051605
...
11
PAWL HUS-537015501
...
3
CABLE HUS-544118501
...
4
IGNITION MODULE HUS-544047101
...
2
SCREW CITXPANT HUS-525887402
...
5
SPARK PLUG CONN. KIT HUS-501485402
...
9
SPRING HUS-501673501
...
6
SPARK PLUG M14X1.25 NGK BPMR7A NGK BPMR7A HUS-503235111
...
10
WASHER HUS-503230042
