product name

Husqvarna 365 H Chain Saw

Model: 365 H

Back To Assemblies

Save Part Not Listed?
product name

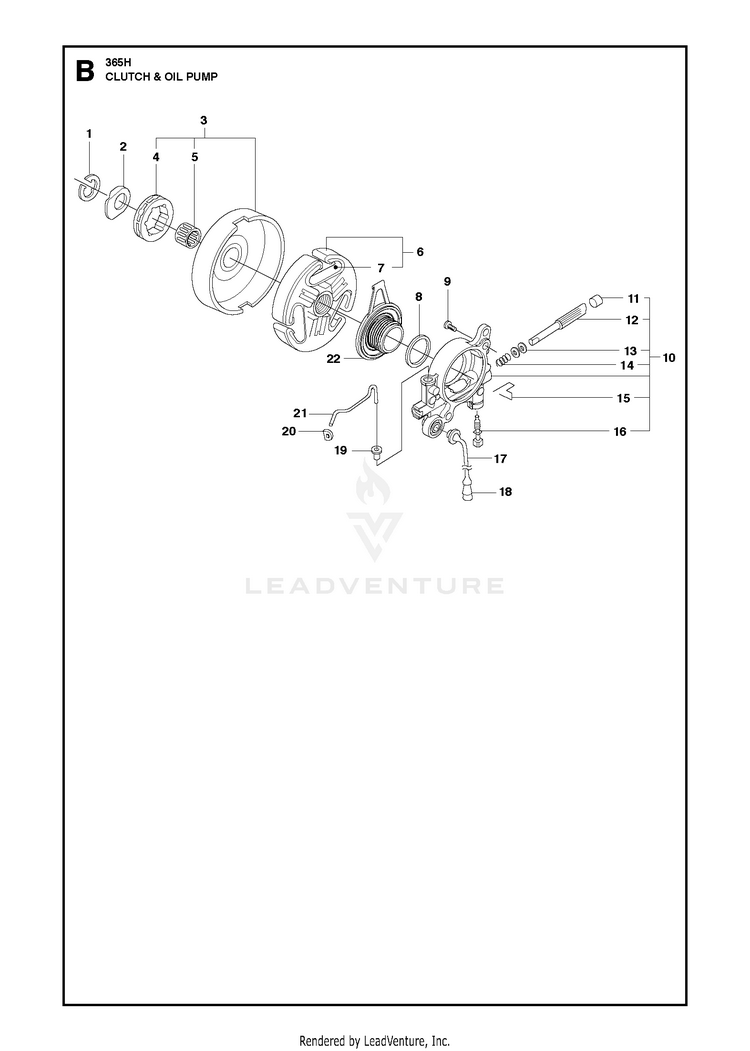

CLUTCH & OIL PUMP 2

...
...
9
SCREW ITXSCM M5X16 T27 12.9 T HUS-525824912
...
6
CLUTCH ASSY M14X1.25-6H HUS-586798401
...
1
RETAINING RING HUS-503272101
...
4
22273 POWER MATE RIM "3/8""x8T" HUS-640200216
...
12
PUMP PISTON HUS-503521501
...
8
WASHER HUS-503230059
...
5
CLUTCH DRUM BEARING HUS-503432001
...
13
WASHER 6.1X9 HUS-503230004
...
11
PLUG HUS-503624901
...
3
CLUTCH DRUM ASSY "3/8""x8T" HUS-586980602
...
14
SPRING HUS-501615801
...
20
GROMMET HUS-503644701
...
15
SPRING CLIP HUS-503813001
...
18
OIL SCREEN HUS-501544102
...
22
Pumps HUS-582270107
...
2
WASHER HUS-503752401
...
16
SCREW HUS-503811301
...
17
OIL HOSE HUS-503426701
...
19
SEAL HUS-504300026
...
7
SPRING HUS-537360601
...
10
OIL PUMP HUS-503521305
...
4
68210/RIM "3/8""x7T" HUS-640200214
...
21
PIPE HUS-503774301
...
3
CLUTCH DRUM ASSY "3/8""x7T" HUS-586980601
